• Model NO.：TUR200
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Analysis Method：Chemical Analysis
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Range：0.1-1000 NTU
• Resolution：0.1NTU
• Accuracy：+,-0.3NTU when 0.1-10NTU; 10-1000 NTU, +,-5%
• Waterproof rate：IP67
• Transport Package：Standard Carton Packing
• Specification：diameter: 24mm* length: 135mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000PCS,Month
• Package size per unit product：41.00cm * 26.00cm * 31.00cm
• Gross weight per unit product：5.000kg
• Lead Time：20 days (1 - 50 Pieces) 60 days (51 - 200 Pieces) 90 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. TUR200 Appliance Food Analysis, Medical Research, Biochemistry Portable Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Analysis Method Chemical Analysis Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Range 0.1-1000 NTU Resolution 0.1NTU Accuracy +/-0.3NTU when 0.1-10NTU; 10-1000 NTU, +/-5% Waterproof rate IP67 Transport Package Standard Carton Packing Specification diameter: 24mm* length: 135mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000PCS/Month

Packaging & Delivery

Package size per unit product 41.00cm * 26.00cm * 31.00cm Gross weight per unit product 5.000kg Lead Time 20 days (1 - 50 Pieces)
60 days (51 - 200 Pieces)
90 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

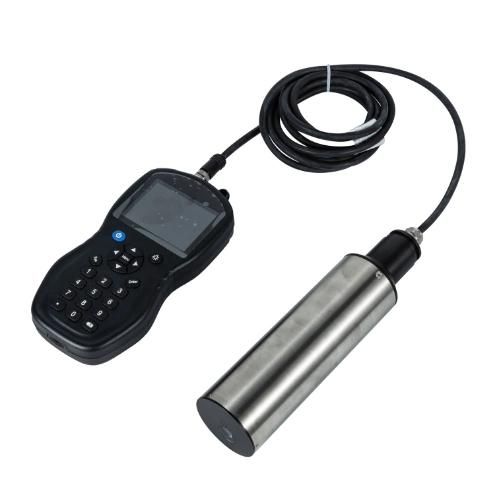

TUR200 Portable Turbidity Tester



Introduction:
Turbidity refers to the degree of obstruction caused by a solution to the passage of light. It includes the scattering of light by suspended matter and the absorption of light by solute molecules. Turbidity of water is not only related to the content of suspended matter in water, but also related to their size, shape and refraction coefficient.

The organic suspended matter in the water is easy to be anaerobic fermented after deposition, which makes the water quality worse. Therefore, the content of suspended matter in the water should be strictly monitored to ensure the water is clean.

Portable turbidity tester an instrument used to measure the scattering or attenuation of light produced by insoluble particulate matter suspended in water (or a clear liquid) and to quantify the content of such particulate matter. This instrument can be widely used in waterworks, food, chemical industry, metallurgy, environmental protection and pharmaceutical engineering departments, is a common laboratory instrument.






Technical parameters:
1. Measuring range: 0.1-1000 NTU
2. Accuracy: ±0.3NTU when 0.1-10NTU; 10-1000 NTU, ±5%
3. Resolution: 0.1NTU
4. Calibration:Standard liquid calibration and water sample calibration
5. Shell Material: Sensor: SUS316L;Housing: ABS+PC
6. Storage Temperature: -15 ºC ~ 40ºC
7. Operating Temperature: 0ºC ~ 40ºC
8. Sensor: Size: diameter: 24mm* length: 135mm;Weight: 0.25 KG
9. Tester: Size: 203*100*43mm;Weight: 0.5 KG
10. Protection level: Sensor: IP68; Host: IP66
11. Cable Length: 5 meters (Can be extended)
12. Display: 3.5 inch color display screen with adjustable backlight
13. Data Storage: 8G of data storage space



Model	TUR200
Measuring method	Sensor
Measurement range	0.1-1000 NTU
Measurement accuracy	0.1-10NTU ±0.3NTU; 10-1000 NTU, ±5%
Display resolution	0.1NTU
Calibrating spot	Standard liquid calibration and water sample calibration
Housing material	Sensor: SUS316L; Host: ABS+PC
Storage temperature	-15 ºC to 45ºC
Operating temperature	0ºC to 45ºC
Sensor dimensions	Diameter 24mm* length 135mm; Weight: 1.5 KG
Portable host	203*100*43mm; Weight: 0.5 KG
Waterproof rating	Sensor: IP68; Host: IP66
Cable Length	10 meters (extendable)
Display screen	3.5 inch color LCD display with adjustable backlight
Data Storage	8G of data storage space
Dimension	400×130×370mm
Gross weight	3.5KG

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.


Delivery and Packing:

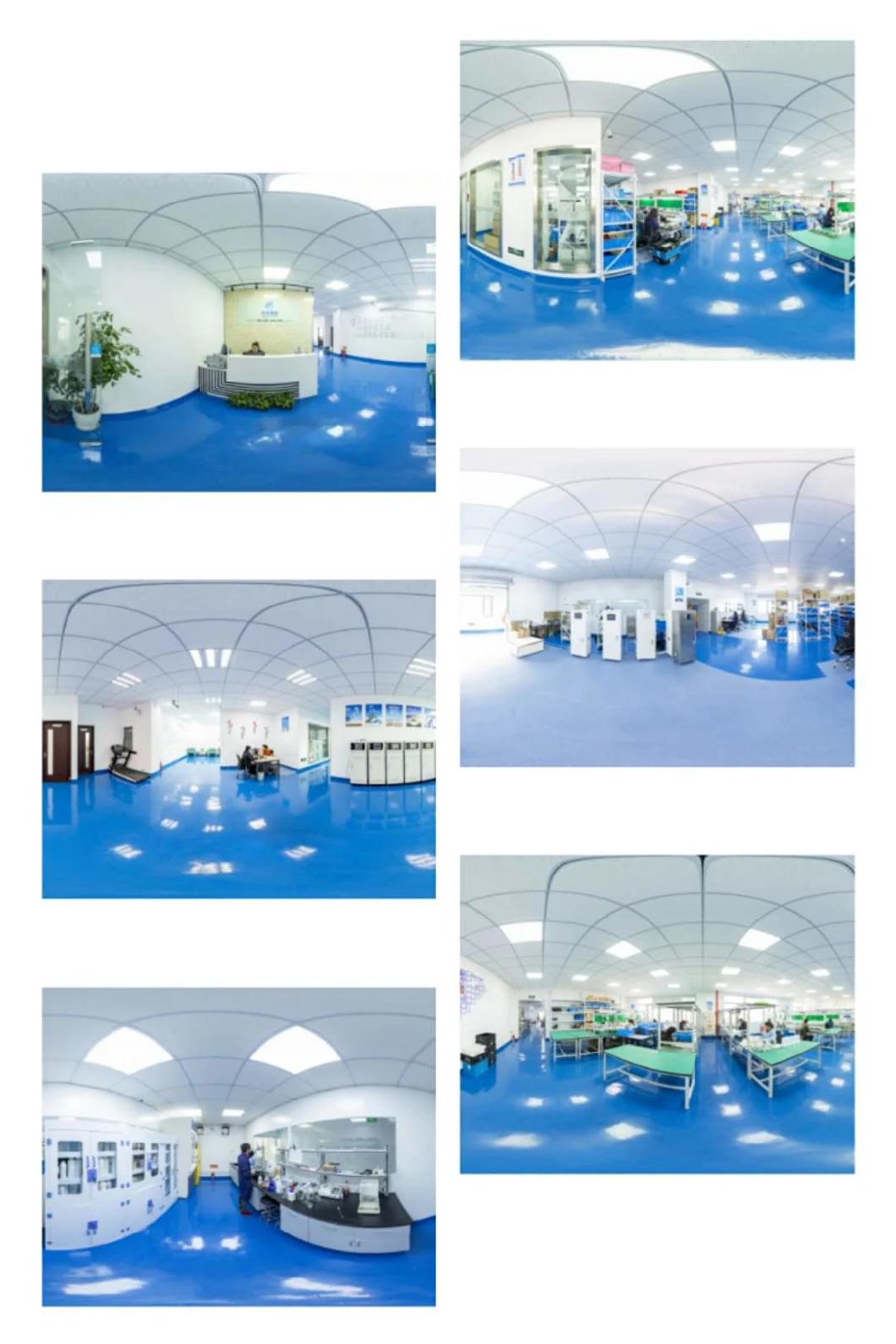

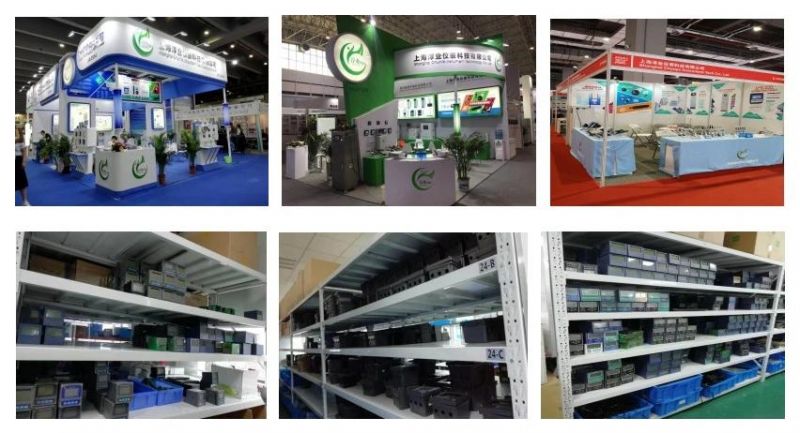

Our company:
