• Model NO.：TSS200
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Analysis Method：Chemical Analysis
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Range：0.1-20000mg,L, 0.1-45000mg,L, 0.1-120000mg,L
• Resolution：0.1mg,L
• Accuracy：Less than +,-5%of measured value
• Waterproof rate：IP67
• Calibration：Standard liquid calibration and water sample calib
• Transport Package：Standard Carton Packing
• Specification：diameter: 24mm* length: 135mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000PCS,Month
• Package size per unit product：41.00cm * 26.00cm * 31.00cm
• Gross weight per unit product：5.000kg
• Lead Time：7 days (1 - 50 Pieces) 15 days (51 - 200 Pieces) 30 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. TSS200 Appliance Food Analysis, Medical Research, Biochemistry Portable Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Analysis Method Chemical Analysis Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Range 0.1-20000mg/L, 0.1-45000mg/L, 0.1-120000mg/L Resolution 0.1mg/L Accuracy Less than +/-5%of measured value Waterproof rate IP67 Calibration Standard liquid calibration and water sample calib Transport Package Standard Carton Packing Specification diameter: 24mm* length: 135mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000PCS/Month

Packaging & Delivery

Package size per unit product 41.00cm * 26.00cm * 31.00cm Gross weight per unit product 5.000kg Lead Time 7 days (1 - 50 Pieces)
15 days (51 - 200 Pieces)
30 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

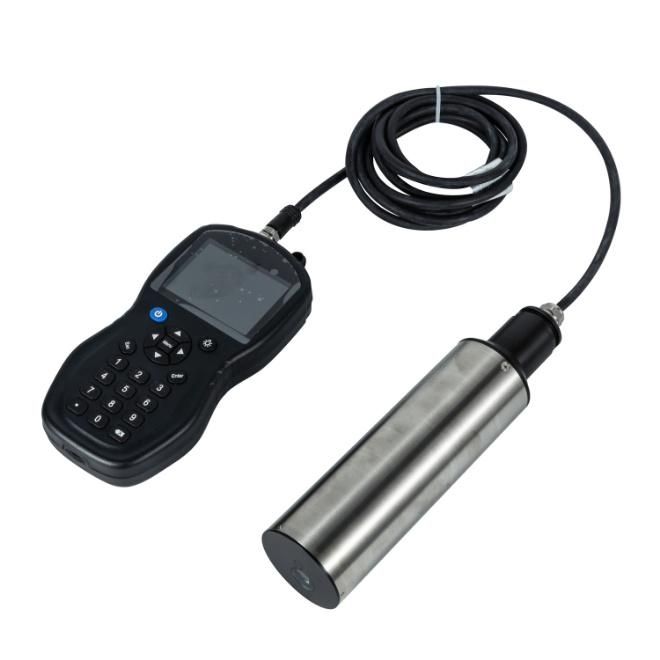

TSS200 Portable Suspended Solids Analyzer




Introduction:

Suspended solids refers to solid material suspended in the water, including inorganic, organic matter and clay sand, clay, microorganisms, etc. Those do not dissolve in the water. Suspended matter content in water is one of the indexes to measure the degree of water pollution.
Suspended matter is the main cause of turbidity of water. The organic suspended matter in the water is easy to be anaerobic fermented after deposition, which makes the water quality worse. Therefore, the content of suspended matter in the water should be strictly monitored to ensure the water is clean.

The portable suspended matter tester is a kind of portable suspended matter tester specially used for detecting suspended matter in sewage water. It adopts the design of all-in-one machine, the equipment occupies a small area, follows the national standard method, and is suitable for the suspended matter detection of industrial wastewater, municipal wastewater, domestic wastewater, surface water in rivers and lakes basin, chemical industry, petroleum, coking, paper-making brewing, medicine and other wastewater.





Features:
 Compared with colorimetric method, the probe is more accurate and convenient in the determination of suspended matter in water. TSS200 portable multifunctional sludge concentration, suspended solids tester provides fast and accurate measurement of suspended solids. Users can quickly and accurately determine suspended solids, sludge thickness. Intuitive directory operation, the instrument is equipped with a strong IP65 case, portable design with safety belt to prevent accidental fall of the machine, LCD high contrast display, it can be adapted to various temperature conditions without affecting its clarity. Portable mainframe IP66 waterproof rating;  Ergonomically shaped design with rubber washer for hand operation, easy to grasp in wet environment; Ex-factory calibration, no calibration required in one year, can be calibrated on site; Digital sensor, fast and easy to use on site; With USB interface,rechargeable battery and the data can be exported through USB interface.




Technical Parameters:


Model	TSS200
Measuring method	Sensor
Measurement range	0.1-20000mg/L,0.1-45000mg/L,0.1-120000mg/L(optional)
Measurement accuracy	Less than ±5% of measured value (depending on sludge homogeneity)
Display resolution	0.1mg/L
Calibrating spot	Standard liquid calibration and water sample calibration
Housing material	Sensor: SUS316L; Host: ABS+PC
Storage temperature	-15 ºC to 45ºC
Operating temperature	0ºC to 45ºC
Sensor dimensions	Diameter 60mm* length 256mm; Weight: 1.65 KG
Portable host	203*100*43mm; Weight: 0.5 KG
Waterproof rating	Sensor: IP68; Host: IP66
Cable Length	10 meters (extendable)
Display screen	3.5 inch color LCD display with adjustable backlight
Data Storage	8G of data storage space
Dimension	400×130×370mm
Gross weight	3.5KG


After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.


Delivery and Packing:








Our company:
