• Model NO.：CS5763
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter, Membrane Electrode
• Cooling System：Radiator
• Function：Over Voltage Protection, Overheat Protection, Short Circuit Protection
• Materials：Stainless Steel
• Measure range：0-20.00 mg,L
• Housing material：POM+316 Stainless steel
• Installation thread：NPT3,4
• Pressure range：0.3MPa
• Transport Package：1 PCS,Carton
• Specification：Measurement range: 0-20.00 mg,L
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000PCS,Month
• Package size per unit product：25.00cm * 13.00cm * 7.00cm
• Gross weight per unit product：1.000kg

Basic Info.

Model NO. CS5763 Certification RoHS, CE, ISO9001 Type Concentration Meter, Membrane Electrode Cooling System Radiator Function Over Voltage Protection, Overheat Protection, Short Circuit Protection Materials Stainless Steel Measure range 0-20.00 mg/L Housing material POM+316 Stainless steel Installation thread NPT3/4 Pressure range 0.3MPa Transport Package 1 PCS/Carton Specification Measurement range: 0-20.00 mg/L Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000PCS/Month

Packaging & Delivery

Package size per unit product 25.00cm * 13.00cm * 7.00cm Gross weight per unit product 1.000kg

Product Description

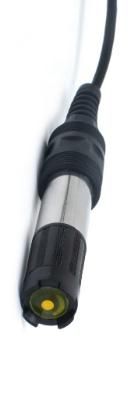

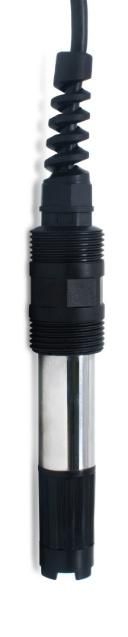

CS5763 Residual Chlorine Sensor

Specifications

Model No.	CS5763
Measurement method	Membrane
Housing material	POM+316L Stainless
Waterproof grade	IP68
Measurement range	0 - 20.00 mg/L
Accuracy	±0.05mg/L;
Pressure resistance	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Calibration	Chlorine-free water, water sample calibration
Connection methods	4 core cable
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	NPT3/4''
Application	Tap water, disinfectant fluid, etc.

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
