• Model NO.：T4000
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Non Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Measuring range：pH: -2~16.00pH; ORP:-2000~+2000 mV
• Resolution：pH: 0.01pH; ORP:1mV
• Accuracy：pH:+,-0.02pH; ORP:+,-2mV
• Signal output：RS485 MODBUS RTU
• Dimensions：98X98X130mm
• Mounting hole size：93X93mm
• Transport Package：Carton Box
• Specification：Measuring range: -2~16.00pH
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000set,Month
• Package size per unit product：25.00cm * 26.00cm * 30.00cm
• Gross weight per unit product：2.000kg
• Lead Time：7 days (1 - 50 Pieces) 15 days (51 - 200 Pieces) 30 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. T4000 Appliance Food Analysis, Medical Research, Biochemistry Portable Non Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Measuring range pH: -2~16.00pH; ORP:-2000~+2000 mV Resolution pH: 0.01pH; ORP:1mV Accuracy pH:+/-0.02pH; ORP:+/-2mV Signal output RS485 MODBUS RTU Dimensions 98X98X130mm Mounting hole size 93X93mm Transport Package Carton Box Specification Measuring range: -2~16.00pH Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000set/Month

Packaging & Delivery

Package size per unit product 25.00cm * 26.00cm * 30.00cm Gross weight per unit product 2.000kg Lead Time 7 days (1 - 50 Pieces)
15 days (51 - 200 Pieces)
30 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

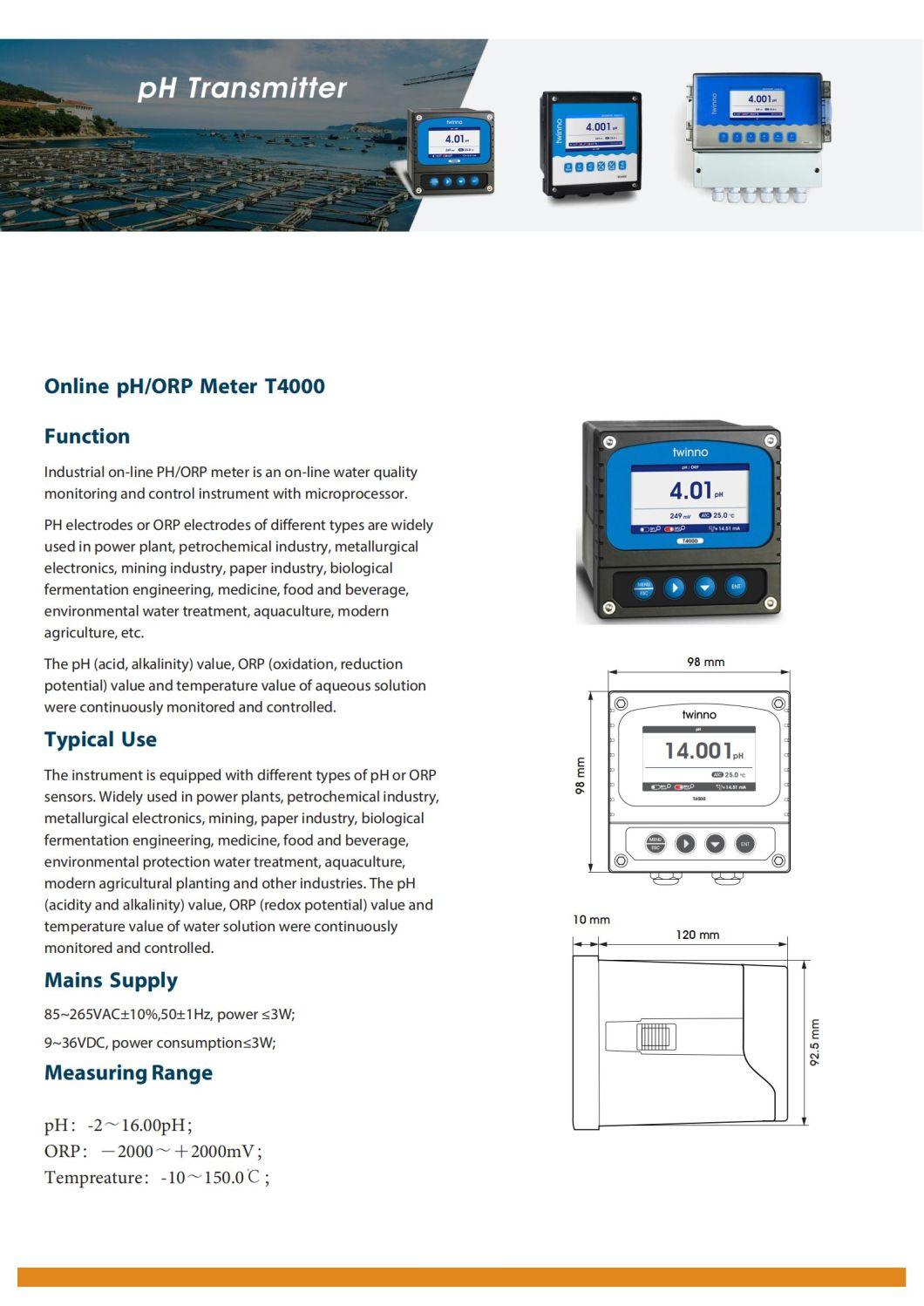

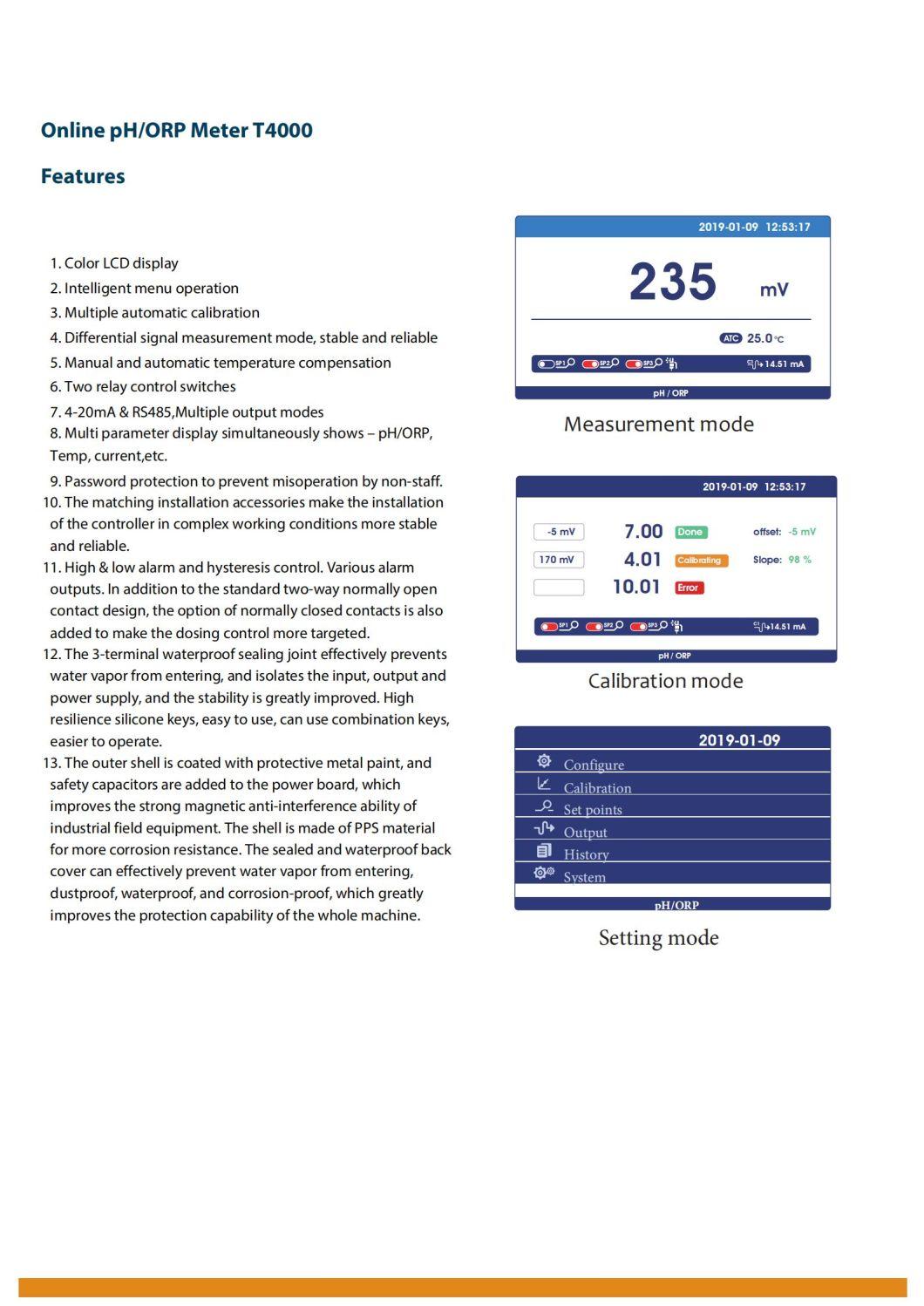

T4000 Online pH/ORP Meter

Industrial online pH/ORP meter is a microprocessor-based water quality online monitoring control instrument. The instrument equipped with different types of pH or ORP electrode. It is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation engineering, medicine, food and beverage, water treatment, aquaculture, modern agricultural planting and other industries. Continuously monitor and control pH value, ORP value and temperature of aqueous solution.

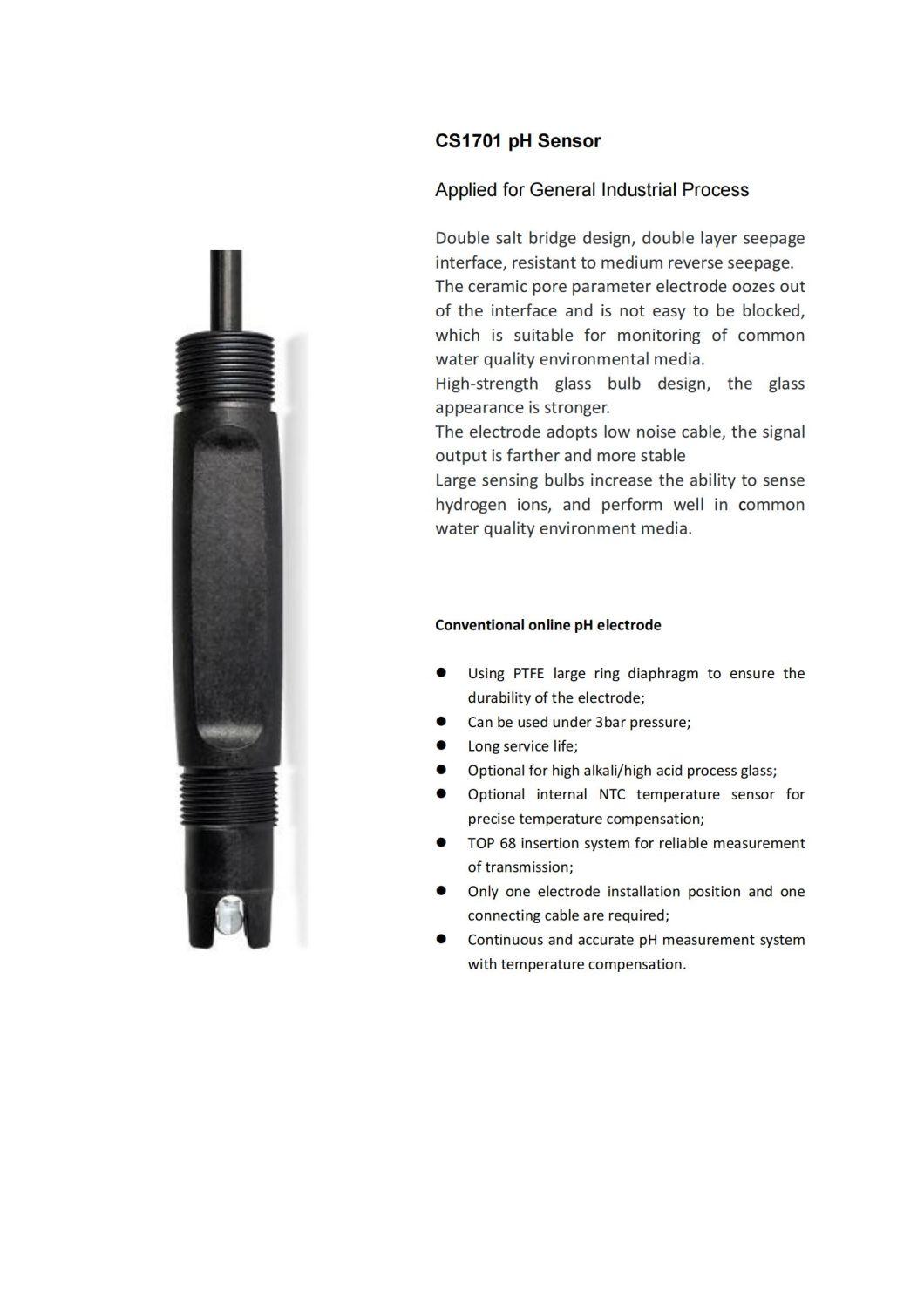

Model No.	CS1701
Measure material	PP+GF
pH zero point	7.00±0.25pH
Reference system	Ag/AgCl/KCl
Electrolyte solution	3.3M KCl
Membrane resistance	<500MΩ
Housing material	PP
Liquid junction	Ceramic cores
Waterproof grade	IP68
Measurement range	2-12pH
Accuracy	±0.05pH
Pressure resistance	≤0.3Mpa
Temperature compensation	NTC10K,PT100,PT1000 (Optional)
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Double Junction	Yes
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	NPT3/4"
Application	Common water quality

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
