• Model NO.：MD110
• Application：Agriculture & Food
• Operating Mode：Keyboard
• Off Mode：Automatic
• Chemical Analysis Type：electrochemistry
• Customized：Non-Customized
• Structure：Portable
• Material：Plastic
• Rated Voltage：100-240 VAC
• Rated frequency：50-60Hz
• Output Voltage：12VDC
• Input Power：5W
• Speed Range：60-2000rpm
• Amount of mixing：500ml (2000 rpm 22 mm stirrer bar)
• Transport Package：Caron Box
• Specification：11x169x109(W*D*H)
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：90
• Production Capacity：3000pieces,Month

Basic Info.

Model NO. MD110 Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Customized Non-Customized Structure Portable Material Plastic Rated Voltage 100-240 VAC Rated frequency 50-60Hz Output Voltage 12VDC Input Power 5W Speed Range 60-2000rpm Amount of mixing 500ml (2000 rpm 22 mm stirrer bar) Transport Package Caron Box Specification 11x169x109(W*D*H) Trademark Twinno Origin Shanghai, China HS Code 90 Production Capacity 3000pieces/Month

Product Description

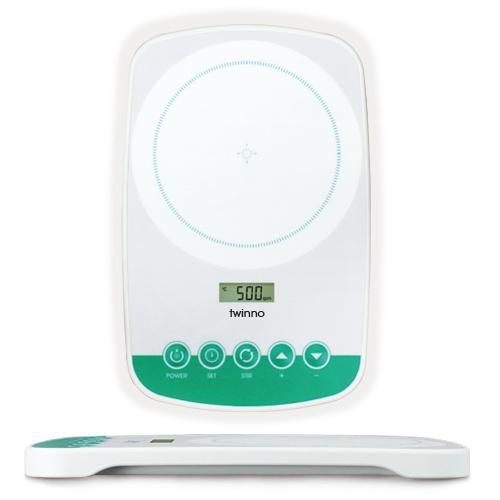

MD110 Ultra-thin Digital Display Magnetic Stirrer/Mixer

Product Features

60-2000 rpm (500ml H2O)
LCD screen shows working and setting status
11mm ultra-thin body, stable, save space
Quiet and noiseless.No loss and no maintenance
Clockwise, counterclockwise (automatic) switch
Timing shutdown setting
Operating temperature 0-50°C
Compliance with CE, does not interfere with electrochemical measurements

Specifications

Rated Voltage	VAC	100-240
Rated frequency	Hz	50-60
Output Voltage	VDC	12
Input Power	W	5
Magnetic stirrer		Quadrupole drive coil
Display		LCD
Speed Range	rpm	60-2000
Amount of mixing	ml	500 (2000 rpm 22 mm stirrer bar)
Stirring bar	mm	22
IP Rate		IP65(EN 61010 EN 61326)
Relative humidity	%	85
Relative temperature	°C	0-60(Working status)
Storage temperature	°C	-10-+70
Housing material		PC
Panel material		PET
Weight	kg	0.3
Load capacity	kg	1.5F.S
Panel size	mm	100
Dimensions	mm	11x169x109(W*D*H)
Cable length	m	1.7

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.



Delivery and Packing:






Our company:
