• Model NO.：SY-2806A
• Specification：SGS
• Trademark：SAMYON
• Origin：Cn
• HS Code：903180
• Production Capacity：100sets Per Month

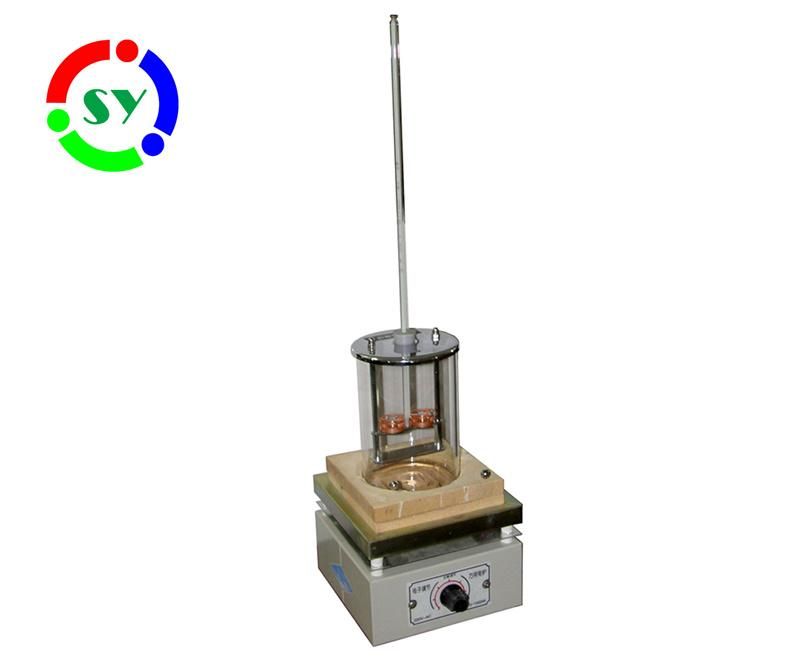

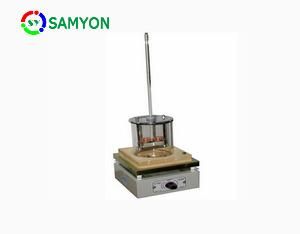

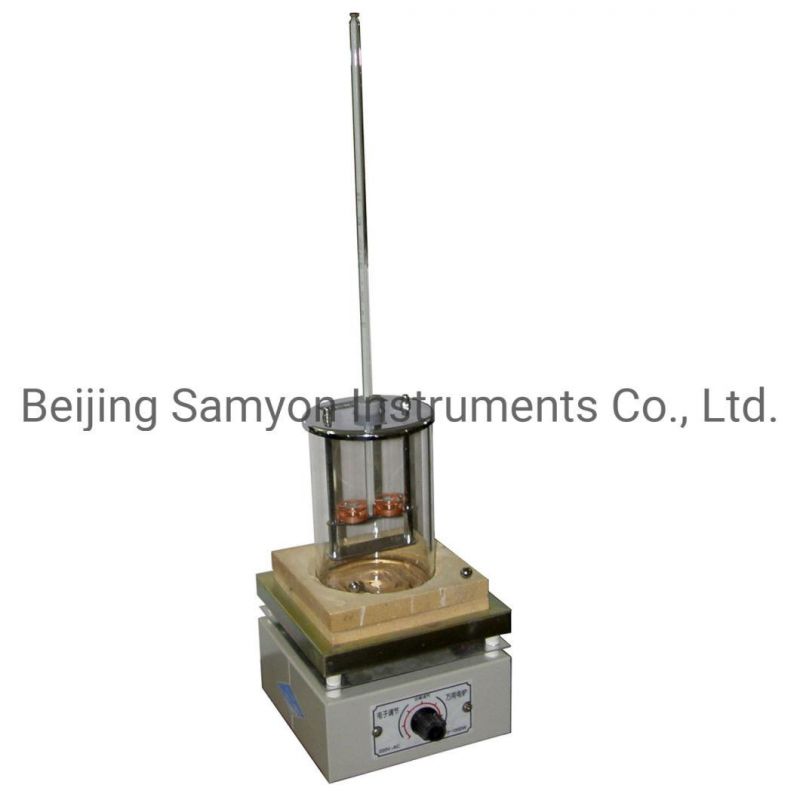

I Summary
The instrument is designed and made as per GB/T4507 Test Methods for Softening Point of Petroleum Asphalt of national standard of People's Republic of China ,
T0608 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the Industrial Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen
and Bituminous Mixture for Highway Engineering. It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts.
It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

II Main technical specifications
1. Ring:
    The height is 6.4mm,
    Upper aperture is 19.8mm, Lower aperture15.9mm.
2. Ball:
    Diameter is 9.5mm,
    Weight is(3.50±0.05)g.
3. Ball locating ring: Inner ring is 23.0mm,center is 9.55mm.
4. Test method: 2 samples, parallel test
5. Support plate: 25.4mm from bottom.
6. Vessel: 1000ml beaker.
7. Thermometer: Mercury-in-glass thermometer,range 30ºC~180ºC,Division is 0.5ºC
8. Net weight: 1.5kg.
 Summary
The instrument is designed and made as per GB/T4507 Test Methods for Softening Point of Petroleum Asphalt of national standard of People's Republic of China , T0608 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the Industrial Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts.
It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

Main technical specifications
1. Ring:
    The height is 6.4mm,
    Upper aperture is 19.8mm, Lower aperture15.9mm.
2. Ball:
    Diameter is 9.5mm,
    Weight is(3.50±0.05)g.
3. Ball locating ring: Inner ring is 23.0mm,center is 9.55mm.
4. Test method: 2 samples, parallel test
5. Support plate: 25.4mm from bottom.
6. Vessel: 1000ml beaker.
7. Thermometer: Mercury-in-glass thermometer,range 30ºC~180ºC,Division is 0.5ºC
8. Net weight: 1.5kg.
