NDJ-8S Digital LCD Viscometer
Xi'an Heb Biotechnology Co., Ltd.- After-sales Service：Yes(Except The Consumbles)
- Warranty：1 Year
- Measuring Range：1-2000000MPa.S
- Rotor Speed(Rpm)：0.3, 0.6, 1.5, 3, 6, 12, 30, 60
- Rotor Quantity：1, 2, 3, 4 Four Rotors
- Measuring Accuracy：1.0%(Full Range)
Base Info
- Model NO.：NDJ-8S
- Repeatability：0.5%
- Transport Package：Carton Package
- Specification：ISO9001: 2000
- Trademark：HEB
- Origin：Xi′an
Description
Basic Info.
Model NO. NDJ-8S Repeatability 0.5% Transport Package Carton Package Specification ISO9001: 2000 Trademark HEB Origin Xi′anProduct Description
FeatureMeasuring Range cp(mPa. S): 1_200000 (mPa. S)
Speed Range(RPM): 0.3RPM 0.6RPM 1.5RPM 3RPM 6RPM 12 RPM 30 RPM 60 RPM (Have no wheel gear arouse)
Number of Spindles: 4 kinds(The 0th rotor for select and match)
Accuracy: ± 2.0%
Repeatability: 0.5%
Voltage: 220V± 10V
NDJ-8S Digital LCD Viscometer, applies stepping motor based on 16-bytes microcomputer processor, with blue screen TFL-LCD. With even rotate speed, distinctive keystrokes, programming, and alarming system, and also it's easy to use. Displayer tells directly viscosity, rotary speed, temperature, centesimal torsion, serial number of the spindle and maxim viscosity that can be measured at present rotary speed of the spindle used. Master control board and Subdivides the actuation board completely to use pastes the piece technique. The circuit is designed by the most advanced microcomputer processor in the world, thus the structure is reasonable and compact. The full scale and levels of lineal measure are measured and adjusted through a PC interface, whose measuring capability is up to the advanced standards of similar types abroad.
Accessories Available: ULA, Small Sample Adapter, Standard Oil, Printer, Viscometer Dedicated Constant Temperature Flume, Remote Controller, Thermosel.
Package & Delivery:

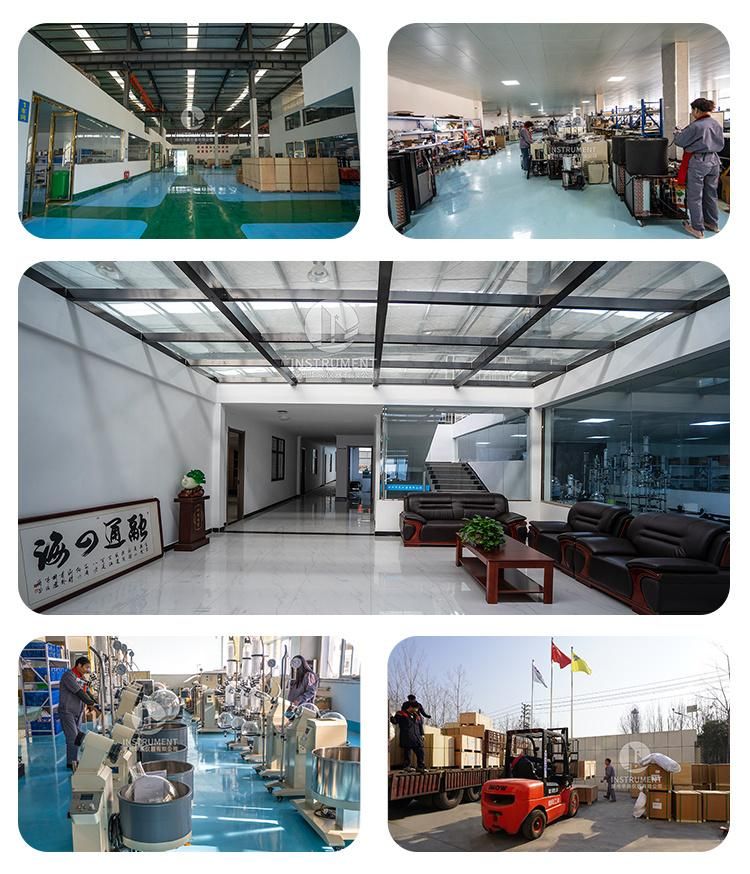

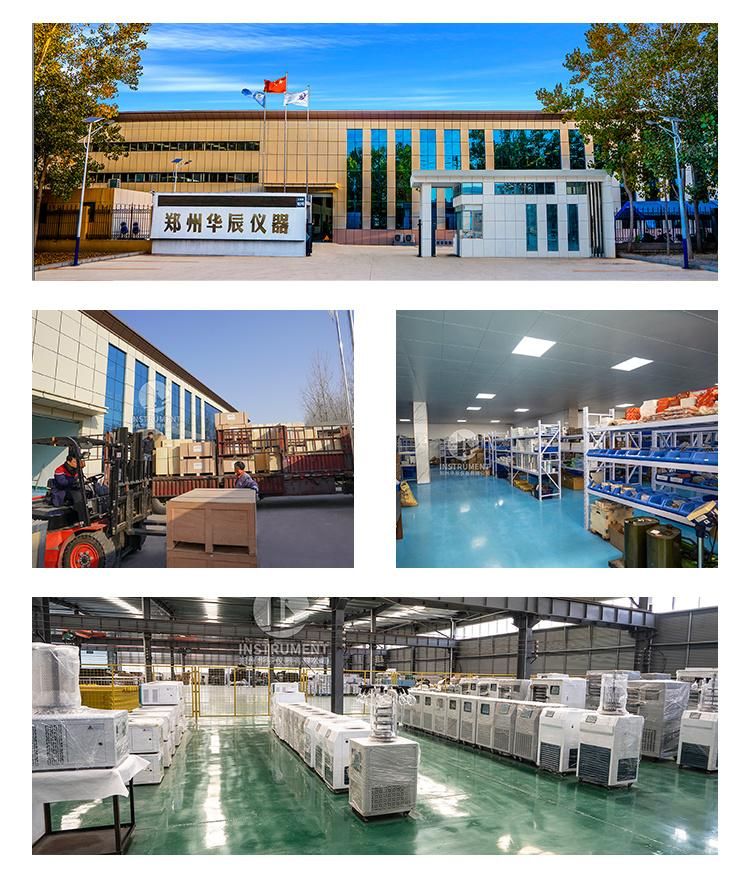

Factory:
Certification:
