• Model NO.：JQ-690
• Air Monitor：Pm2.5
• Transport Package：Box
• Specification：8*8*4cm
• Trademark：superegrow
• Origin：China
• Production Capacity：50000PCS

Basic Info.

Model NO. JQ-690 Air Monitor Pm2.5 Transport Package Box Specification 8*8*4cm Trademark superegrow Origin China Production Capacity 50000PCS

Product Description

CO2 / Clock / Weather information
Wi-FiReal-time monitoring of CO2 concentration
Over-standard sound alarm
Three-color light warning
90 days of historical data App sets sound and color alarm thresholds
Wi-Fi networking, remote monitoringIt works 24 hours a day without any holidays.

App SDKCloud API interfaceThe data is transferred to the specified server
Enterprise version value added service



Color: White + black
Product size 60*60*25mm
Net weight: 55g
USB input 5V 1A(Support 2 AAA batteries)
Sound alarm buzzer
Sensor: Solid electrolyte chemical sensor
Measurement range: 400-3000ppm
Accuracy: 80ppm+6%
Working temperature: 0-50 ºC
Working humidity: 30-80%
Network: Wi-Fi 2.4GHz

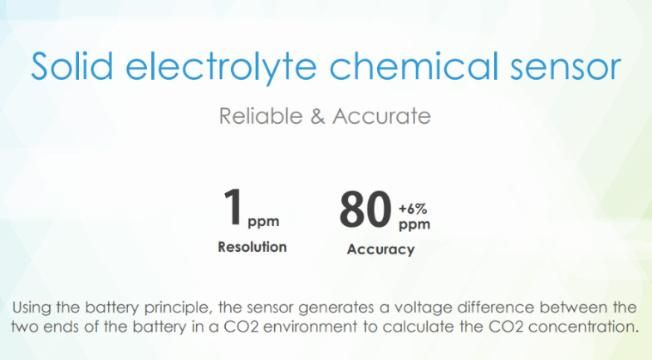

XP200 adopts solid electrolyte CO2 sensor, which is a product designed with long-term monitoring of CO2 gas concentration changes.

The C:UserspcAppDataRoamingFoxmail7Temp-16932-20210422195052solid electrolyte sensor has good selectivity and detection accuracy for carbon dioxide gas. Compared with the traditional NDIR infrared CO2 detector, it has better accuracy, the only disadvantage is that the sensor takes a little bit longer time to warm up.



XP200 is a very cost-effective CO2 monitoring solution.

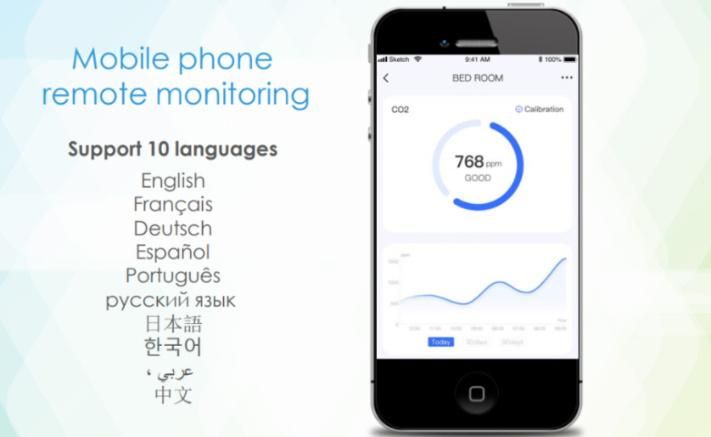

1. With a wifi module, allowing mobile phones to view data remotely;

2. it is our own developed App, Compatible development interfaces, allowing the transmission of detection data to the client's designated server through the HTTP protocol;

3. For customers who purchase in bulk, we provide a free air quality monitoring system, support mobile remote viewing, computer cluster (Team) management (up to 5000 devices in the primary version), and can open sub-accounts for our customers.

4. Support smart TV and tablet computer to display detection data.

5. CO2 calibration service: 1.) Network automatic calibration service (cloud server automatic calibration) 2.) Smart calibration (calibration according to 500ppm concentration), 3.) Numerical calibration (calibration according to the detection value of professional testing equipment)

6. App sets the CO2 concentration alarm value, if it exceeds the set value, the buzzer will alarm

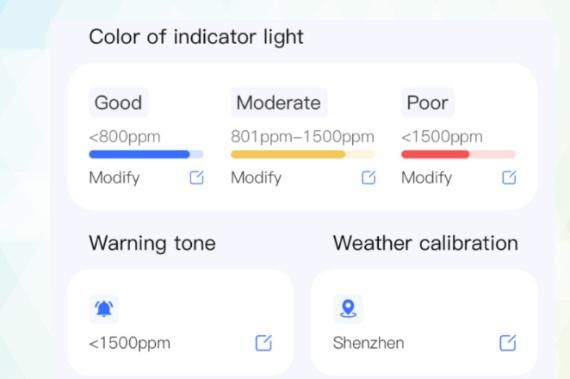

7. App sets the color of the carbon dioxide concentration warning light, and the CO2 detector displays different colors according to the setting value of gas concentration.

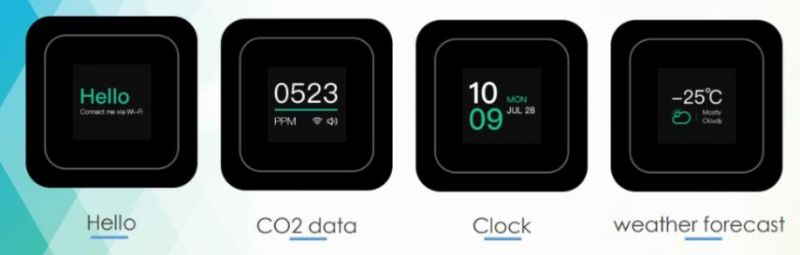

8. Additional features: network clock + weather forecast, you can set the weather forecast display in 9 languages on the CO2 detector on the app (English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Chinese)

9. You can turn off the functions that you don't want to display, such as network clock, weather forecast

10. Set Celsius and Fahrenheit

11. Set the interval display time of CO2 value, network clock and weather forecast

12. 3 months of historical record



Neutral App language:

Chinese and English are ready to use



Other languages (no fee): French, German, Spanish, Portuguese, Russian, Japanese, Korean, bulk purchase customers, we separately send other local language versions to customers to check, and then give them separately Release in their languages.
