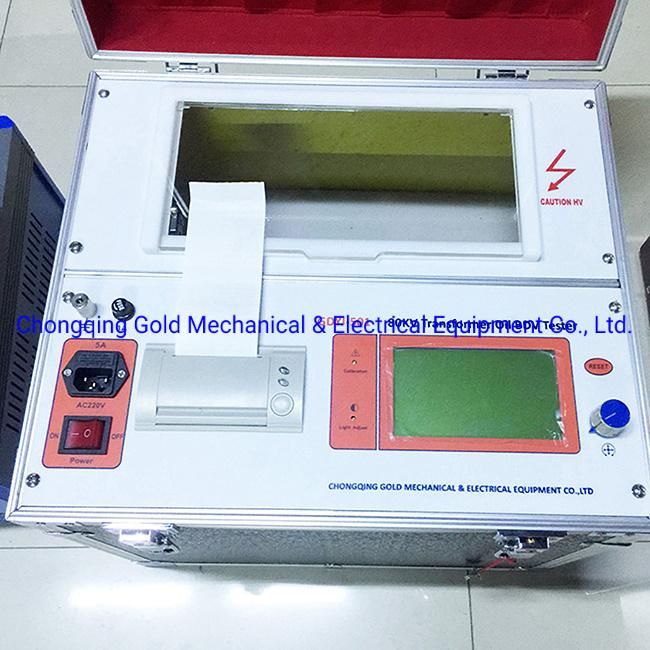

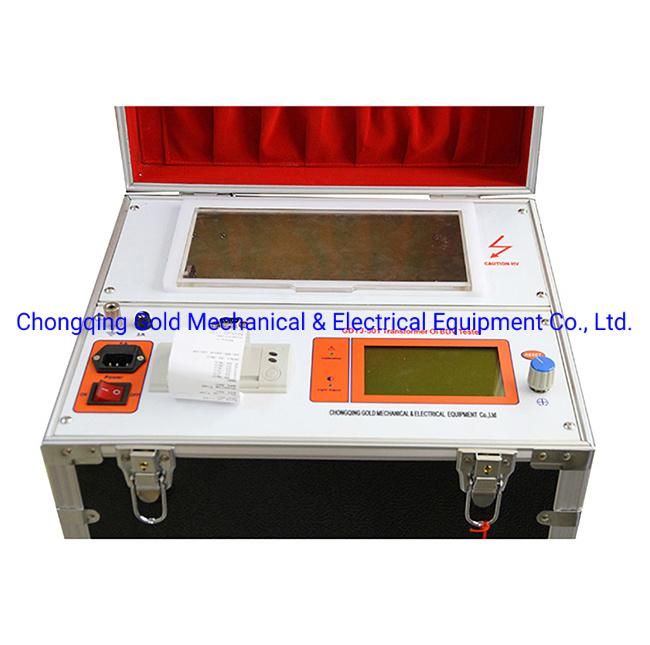

Factory Price Insulating Oil Bdv Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Display:256*128LCD
- Testing Times Setting:1~9
- Power Supply:220V 50Hz ,110V
- Output Voltage:AC 0~80kv,0~100kv
- Standard:IEC60156
- Measuring Precision:3%Rdg+0.3%Fs
Base Info
- Model NO.:GDYJ-501
- Size:420*380*410mm
- Key Word:Bdv
- Trademark:GOLD
- Origin:Chongqing China(Mainland)
Description
Output voltage
AC 0-80kV / AC 0-100kV
Rate of voltage rise
2kV/s ± 10%
Measuring precision
3% RDG + 0.3%FS
Test times setting
1-9
Mixing time setting
0-99 second
Waiting time setting
0-9 minute 59 second
Maximum storage capacity
100 groups of test data
Test standards
IEC60156
Display
256*128LCD
Rated power supply
AC 220V ± 10% 50Hz / 60Hz
Environmental temperatures
0-50 ºC
Relative humidity
≤80% RH
Size
420*380*410mm
Weight
28kg
About Company
Company Introduction
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd was founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China.
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.
Our service
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory.
Engineers available to service machinery overseas at customers' cost.
