• Model NO.：VLF
• Voltage Wave Form Distortion：<5%
• Power Supply Fuse Tube：10A
• Warranty：1 Year
• Weight：Controller: 4kg Booster: 25kg
• Transport Package：Standard Wooden Case and Carton
• Specification：28*37*22CM
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9013809000
• Production Capacity：300 Set,Sets Per Month

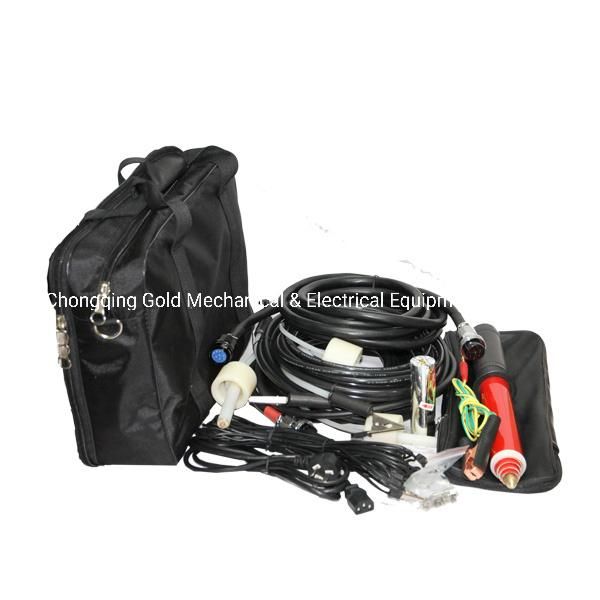

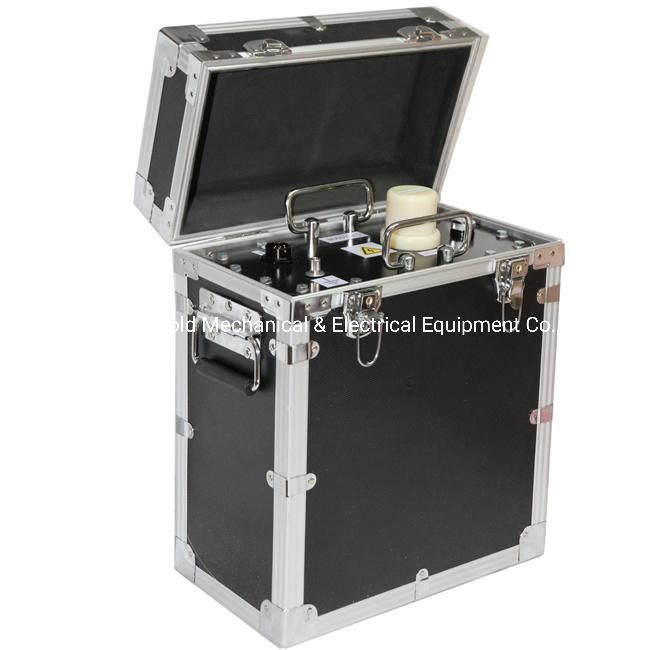

VLF-30KV

30kV/20mA

(Peak)

0.1Hz,≤0.5µF~1.1µF

5A

0.05Hz,≤0.5µF~2.2µF

0.02Hz,≤0.5µF~5.5µF

VLF-50KV

50kV/30mA

(Peak)

0.1Hz,≤0.5µF~1.1µF

7A

0.05Hz,≤0.5µF~2.2µF

0.02Hz,≤0.5µF~5.5µF

VLF-60KV

60kV/30mA

(Peak)

0.1Hz,≤0.5µF

9A

0.05Hz,≤0.5µF~1µF

0.02Hz,≤0.5µF~2.5µF

VLF-80KV

80kV/30mA

(Peak)

0.1Hz,≤0.5µF

12A

0.05Hz,≤0.5µF~1µF

0.02Hz,≤0.5µF~2.5µF

Features

• Data of current, voltage and wave form can be directly sampled at high voltage side, so the data is real and accurate;

• Over-voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself; the actuation time is less than 15ms;

• Over-current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 15ms;

• A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside;

• As a result of high and low voltage closed-loop negative feedback control circuit, the output without capacitive rise effect;

• High-voltage control part adopts innovative light control HV switching unit, control is accurate, safe and reliable;

• With color man-machine interface touch control plus controls modular software operating system, precise and intuitive;

• Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test;
