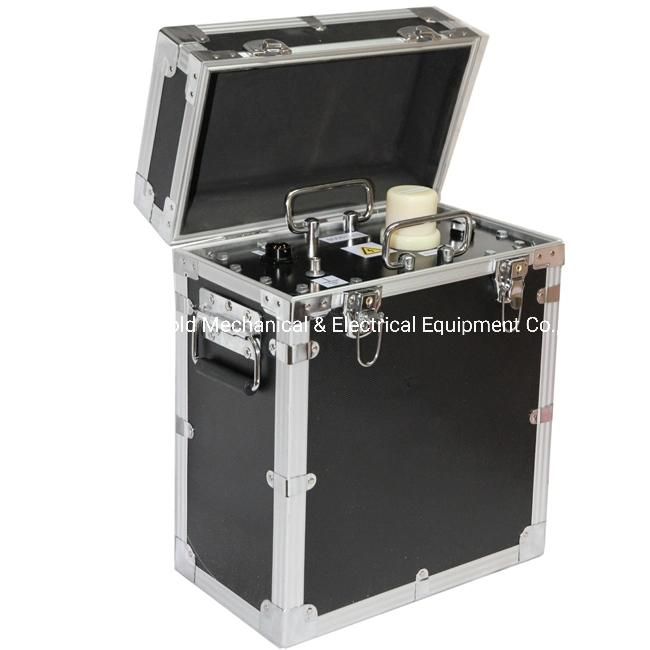

High Voltage Tester Electrical Cable Withstand Voltage Test Vlf Hipot Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Output-Voltage：30kv
- Output Frequency：0.1Hz, 0.05Hz, 0.02Hz.
- Stability of Frequency：Fluctuation < 0.5%
- Max Voltage Output：30kv~80kv
- Certificate：Ce
- Measurement Error：< 3%Rdg+0.3%Fs
Base Info
- Model NO.：VLF
- Voltage Wave Form Distortion：<5%
- Power Supply Fuse Tube：10A
- Warranty：1 Year
- Weight：Controller: 4kg Booster: 25kg
- Transport Package：Standard Wooden Case and Carton
- Specification：28*37*22CM
- Trademark：GOLD
- Origin：Chongqing, China (Mainland)
- HS Code：9013809000
- Production Capacity：300 Set,Sets Per Month
Description
30
30kV/20mA
(Peak)
0.1Hz,≤0.5µF~1.1µF
5A
Controller:4kg
Booster: 25kg
0.05Hz,≤0.5µF~2.2µF
0.02Hz,≤0.5µF~5.5µF
50
50kV/30mA
(Peak)
0.1Hz,≤0.5µF~1.1µF
7A
Controller:4kg
Booster: 50kg
0.05Hz,≤0.5µF~2.2µF
0.02Hz,≤0.5µF~5.5µF
60
60kV/30mA
(Peak)
0.1Hz,≤0.5µF
9A
Controller:4kg
Booster Grade 1(30kV):25kg
Booster Grade 2(30kV):25kg
0.05Hz,≤0.5µF~1µF
0.02Hz,≤0.5µF~2.5µF
80
80kV/30mA
(Peak)
0.1Hz,≤0.5µF
12A
Controller:4kg
Booster Grade 1(30kV):25kg
Booster Grade 2(50kV):50kg
0.05Hz,≤0.5µF~1µF
0.02Hz,≤0.5µF~2.5µF
Features:
Data of current, voltage and wave form can be directly sampled at high voltage side, so the data is real and accurate;
Over-voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself; the actuation time is less than 15ms;
Over-current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 15ms;
A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside;
As a result of high and low voltage closed-loop negative feedback control circuit, the output without capacitive rise effect;
High-voltage control part adopts innovative light control HV switching unit, control is accurate, safe and reliable;
With color man-machine interface touch control plus controls modular software operating system, precise and intuitive;
Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test;
