• Model NO.：GD-3100

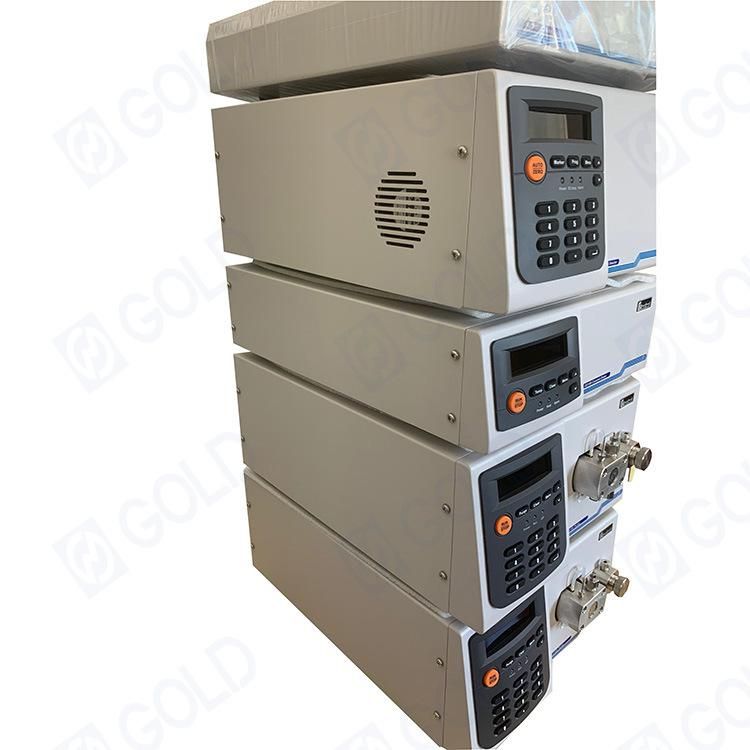

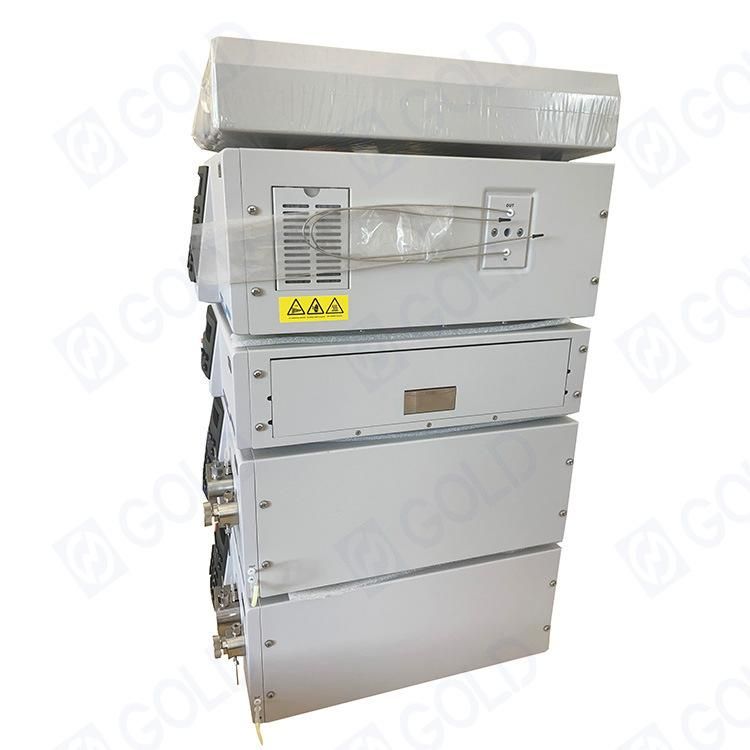

• Product Name：High Performance Liquid Chromatography
• Application：Furfural Furan Analysis in Transformer Oil
• Flow Rate Range：0.001-10.000 Ml,Min, in 0.001 Ml Increments
• Flow Accuracy：≤±0.2% (1.00ml,Min, H2O, R.T., 8.5MPa)
• Flow Precision：Rsd≤0.06% (1.00ml,Min, H2O, R.T., 8.5MPa)
• Maximum Pressure：45 MPa
• UV3100 UV/Vis Detector：Wavelength Range: 190-700 Nm
• O3100 Colunm Oven：3 Columns
• Chromatographic Data-Process Workstation：Internal and External Standard Calculation Methods
• UV3100 UV/Vis Detector 2：Bandwidth: 8nm
• Transport Package：Plywood Case
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9030849000
• Production Capacity：500 Pieces,Month

P3100 High Pressure Constant Flow Pump

1) Flow rate range: 0.001-10.000 mL/min, in 0.001 mL increments

2) Flow accuracy: ≤±0.2% (1.00ml/min, H2O,R.T.,8.5MPa)

3) Flow precision: RSD≤0.06%  (1.00ml/min, H2O,R.T.,8.5MPa)

4) Maximum pressure: 45 MPa

5) Pressure accuracy: ≤±3.0%

6) Pressure pulsation: ≤0.1 MPa

UV3100 UV/VIS Detector

• Wavelength range: 190-700 nm
• Wavelength repeatability: ≤0.1 nm
• Wavelength accuracy: ≤±1.0 nm
• Bandwidth: 8nm
• Response time: 0.0 s-5 s
• Baseline noise: ≤±0.5×10-5 AU
• Drift: ≤1.0×10-4 AU/h (empty cell, 254 nm, 60 min)
• Path length: 10 mm(analytical cell)
• Light source: Deuterium Lamp

Chromsoft Chromatographic Data-processing Workstation

• Internal and external standard calculation methods
• Automatically displays, prints, exports and starts other programs after the completion of a measurement.
• Comply with the requirements of the 21 CFR Part 11 directive of the FDA.

GD-3100 System Kits

• Containing required tubing, fittings, wreches and cables for system.
• 7725i manual injector
• TD-1-15 static mixer
• Supersil ODS2 5μm ID4.6*200mm

S3100 Autosampler

(optional)

• Inject volum range: 0-100 μL (standard)
• Precision: RSD <0.3%
• linearity: >0.999
• Sample residual: <0.01%
• Number of sample plates: Two of 60 position 2-mL vial plates
• Syringe: 500 μL

O3100 Colunm Oven

• Column capacity: Three columns, up to 10mm internal diameter, up to 250mm length with guard column
• Temperature range: Ambient+5.0 to 80ºC, settable in 0.1ºC increments
• Temperature accuracy: ≤±0.5ºC
• Temperature stability: ≤±0.1ºC

Pretreatment

(optional)

• Ultrasonic Bench Top Cleaner
• Φ13mm/Φ25mm Nylon (organic) (100/pk)
• Φ13mm/Φ25mm Cellulose (aqueous) (100/pk)
• Diaphragm Vacuum Pump
• Φ50mm Solvent Filter (Include Nylon and Cellulose, 100/pk)

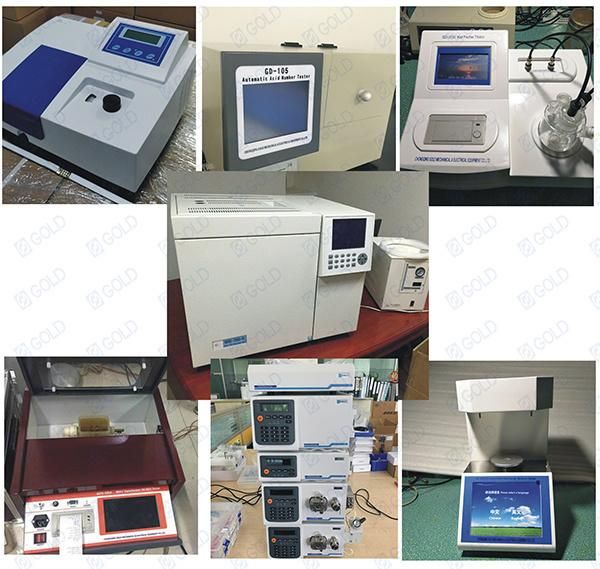

A Transformer Oil Lab from Philippines Ordered 8 Sets Equipment

A Transformer Oil Lab in Manila,Philippines who placed an order with us on July 11,2019. Total 8 equipment. which includes:

• GDYJ-502A 80KV Transformer Oil BDV Tester,
• GDGY Transformer Oil Tan Delta Tester,
• GC-7890-DL Transformer Oil Dissolved Gas Analyzer
• GD-2100 Karl Fischer Moisture Titrator(Coulometric method)
• GD-6541A Automatic Interfacial Tension Tester
• GD-752N UV Vis Spectrophotometer
• GD-3100 Gradient HPLC System
• GD-105 Automatic Acid Number Tester (ASTM D974)
  We will provide a training in their lab.
