• Model NO.：CY-HT-LA703
• Measuring Principle：Ion Current
• Display Mode：320X240 Graphic DOT Matrix Color LCD
• Power Supply： AC220V ± 10%
• Sampling Method：Free Diffusion
• Installation Method： Wall-Mounted
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：86mmx89mmx40mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LA703 Measuring Principle Ion Current Display Mode 320X240 Graphic DOT Matrix Color LCD Power Supply  AC220V ± 10% Sampling Method Free Diffusion Installation Method  Wall-Mounted Warranty One Year Transport Package Wooden Case Specification 86mmx89mmx40mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

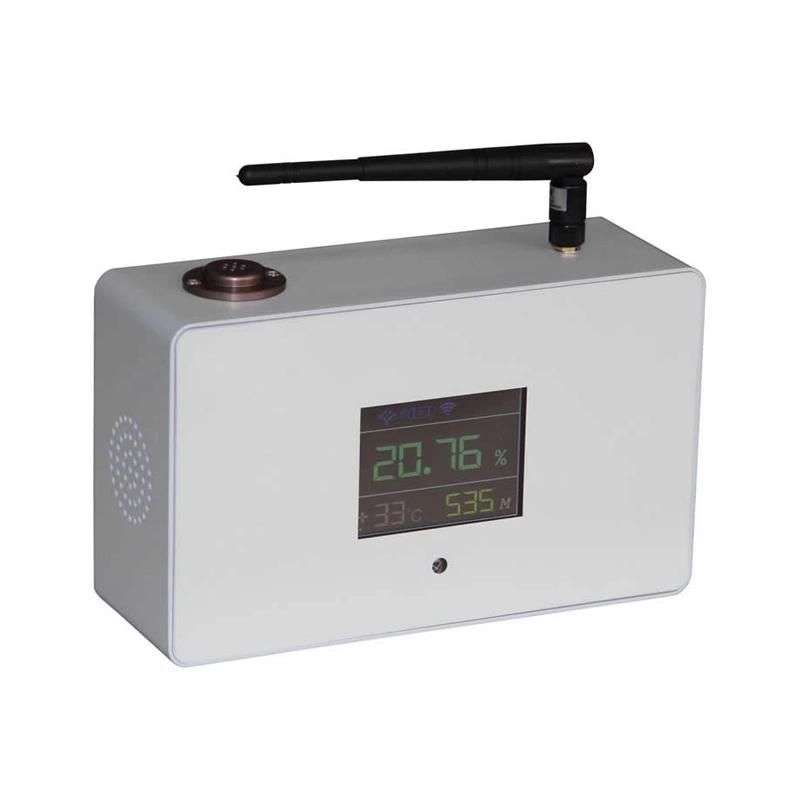

Laboratory oxygen monitor for monitoring environmental oxygen content
Application of oxygen monitor:
It is widely used in the monitoring and control of environmental oxygen content in hotels, hospitals, schools, laboratories, storage rooms and other environments in the plateau area.

Instrument features of oxygen monitor:
a) Friendly man-machine dialogue menu, intuitive and convenient operation;
b) Integrated design, small size, light weight and simple structure;
c) The sensor is not powered, does not consume, has a long service life and is easy to maintain;
d) Compared with the principle of electrochemistry and ultrasonic, the service life is long and the response speed is fast;
e) While monitoring environmental oxygen changes, the adjustment of the ambient oxygen concentration is realized to achieve the best adaptation of the human body;
f) With wireless transmission function, it can be remotely controlled for centralized management;
g) With remote control function, easy to operate;
h) Oxygen outlet is equipped with a silencer, low noise, to meets the noise requirements of sleep;
i) no reference gas is required, and is not affected by the working environment oxygen concentration;
 j) The calibration interval is long, high precision, stable and reliable;
k) High-precision temperature automatic compensation system can eliminate the influence of ambient temperature;
l) Modular design, users can freely add features.

Technical parameters of oxygen monitor:

Measuring principle	ion current
Display mode	320×240 graphic dot matrix color LCD
Measuring range	0 ~ 40.0% O2
Measurement accuracy	≤ ± 1% FS
Repeatability	≤±1%
Response time	T90 ≤ 30S
Analog output	4-20mA.DC (non-isolated output, load resistance less than 500 ohms) 1 way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A  1 way RS485
Power supply	AC220V ± 10%
Sample gas temperature	-10 ~ +50 °C
Ambient humidity	<80% RH
Sampling method	free diffusion
Oxygen pressure	≤1MPa
Dimensions	150mm × 206mm × 70mm (H × W × D)
Service life	≥5 years (under normal use conditions)
Installation method	wall-mounted
