• Model NO.：KZ-III-FP
• Power Supply：220V
• Certification：CE
• Weight：55kg
• Customized：Customized
• Usage：Grind Tissue Samples at Low Temperatures
• Application Scenarios：Laboratory,Hospital,School
• Cooling Function：-40ºC to Room Temperature
• Temperature Control Accuracy：±1ºC
• Transport Package：Standard Wooden Box
• Specification：500*365*370mm
• Trademark：Servicebio
• Origin：China
• HS Code：8474209000
• Production Capacity：1000PCS,Month

Overview Product Description

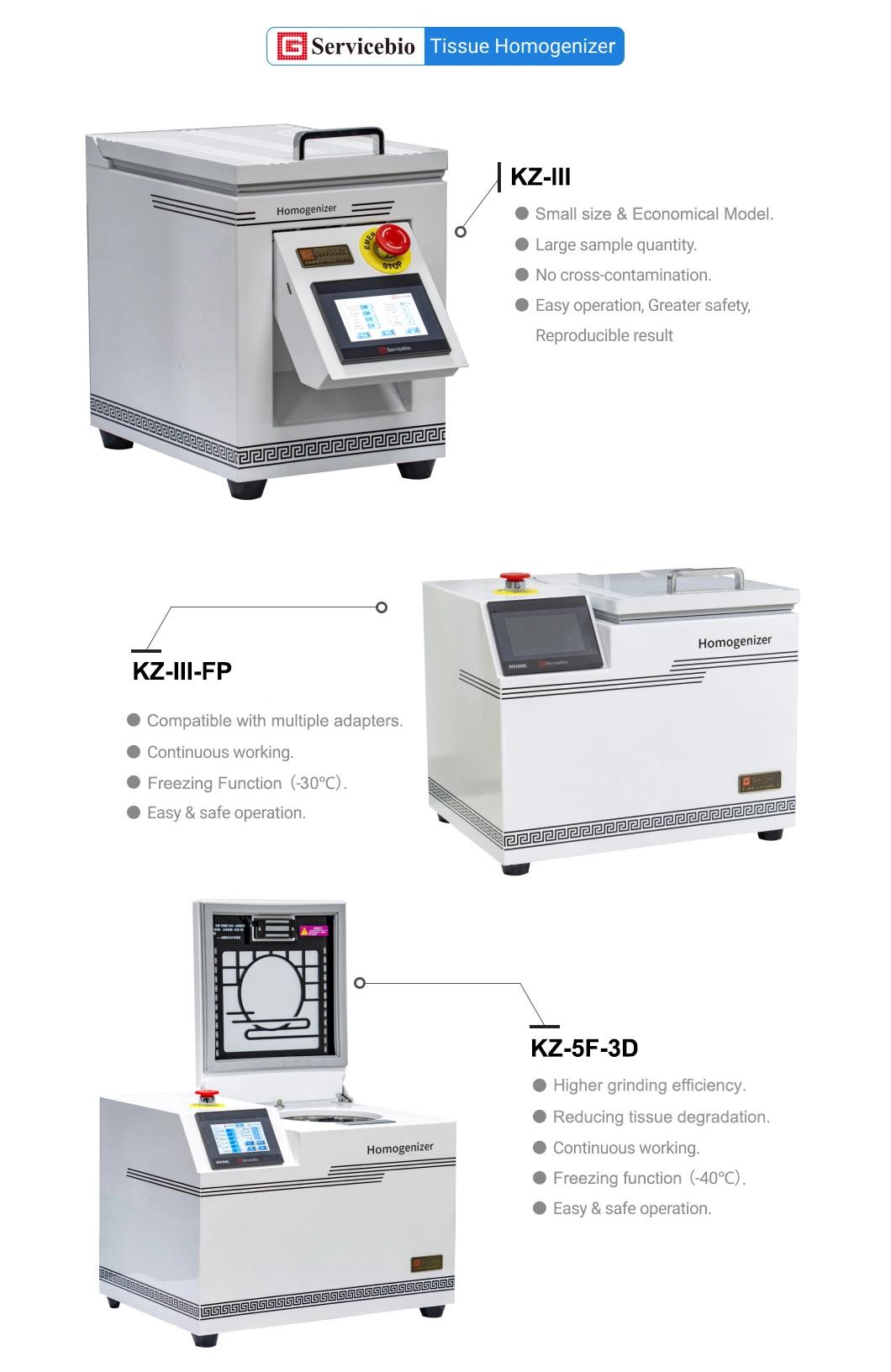

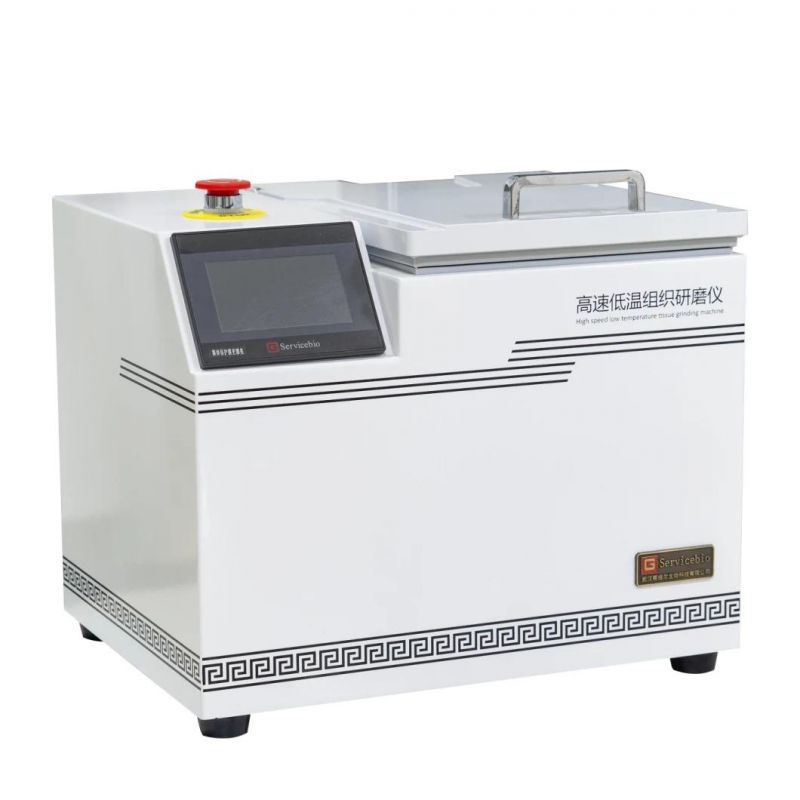

KZ-III-FP high speed low temperature tissue grinding instrument can reach -40ºC low temperature environment, is the use of vertical vibration system high speed reciprocating movement, so that the grinding tube frozen samples and grinding beads collide with each other, the grinding shear force and impact force generated completely broken tissue, It is a special equipment for rapid one-time processing of multiple samples in research institutes, universities, agricultural colleges, biological medicine, food testing and other fields.



The traditional mortar grinding can only grind one sample at a time, so the processing efficiency is low. Moreover, tools such as mortars and mortars must be cleaned and sterilized each time, which greatly increases the workload of sample processing.



High speed and low temperature tissue grinding machine can greatly improve the sample processing process:



1. The sample can be dry grinding, wet grinding and homogenization treatment;

2. Up to 24 samples can be processed simultaneously, and sample preparation can be completed quickly and with high throughput;

3. Adapters of different capacities can be replaced with 2ml, 5ml, 10ml and 50ml;

4. A wide range of samples can be processed:

A. Suitable for grinding and crushing of various plant tissues, including roots, stems, leaves, flowers, fruits, seeds and other samples;

B. Suitable for grinding and crushing of samples of various animal tissues including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.;

C. Grinding and crushing suitable for the analysis and detection of food and drug ingredients;

5. The enclosed disposable centrifugal tube can effectively avoid cross-contamination between samples.

6. The experiment has strong repeatability. The same grinding effect can be obtained by setting the same grinding frequency and time.

7. Refrigeration function: -40ºC to room temperature; Temperature control accuracy: ±1ºC.


Product Name

Code

Specification

Gross weight

High speed tissue grinding machine low temperature (-40ºC)

KZ-III-FP

500*365*370mm

Weight: 55Kg

 Product Parameters

1. Up to 24 samples can be processed at the same time within 1 minute, which can quickly, efficiently and high-throughput sample grinding;

2. A wide range of samples can be processed, such as plant tissues (such as rice, corn, wheat, beans, peanuts, etc.), animal tissues (such as muscle, small intestine, heart, lung, fur, bone, etc.), microorganisms and various Chinese medicinal materials, drugs, etc.;

3. Closed disposable centrifugal tubes are used in the grinding process to effectively avoid cross-contamination between samples;

4. Homogenizing speed: 0-70 Hz, the actual speed can reach 2100rpm, working time: 0-9999 minutes, users can set by themselves;

5. Preset 10 groups of common tissue grinding parameters to optimize grinding conditions of different specimens;

6. Noise level: < 65dB;

7. Maximum feed size: no requirement, adjust according to the adapter;

8. Emergency stop button: can be taken at any time in the grinding process, the instrument will stop running, fast and safe;

9. Fast refrigeration: the temperature drops to below zero within a short time after starting the machine to prevent degradation. The temperature range is -40ºC to room temperature.

10. Electromagnetic safety lock: the electromagnetic lock can not open the cover during the working process, until the end of the grinding process, the whole process of protection;

11 grinding mode: wet grinding, dry grinding, low temperature grinding can be;

12. Adopt the special vibration mode of up and down and left and right shaking three-dimensional integration, the sample in the space is a figure 8 three-dimensional movement, grinding more fully, better stability;

13. Optional 60-hole adapter can be installed to upgrade to 60 samples per grinding to further improve grinding efficiency.

14. Power demand: 220V single-phase AC, <6A;

15. Overall size: 500*365*370mm;

16. Weight: 55Kg.
