• Model NO.：SFA2000
• Specification：300mm(H) x 650mm(W) x 500mm(D)
• Trademark：KGT
• Origin：China
• HS Code：9027100090

Basic Info.

Model NO. SFA2000 Specification 300mm(H) x 650mm(W) x 500mm(D) Trademark KGT Origin China HS Code 9027100090

Product Description

DESCRIPTION
The SFA2000 SF6 is a fully-automatic zero-emissions SF6 gas analyser, designed for controlling and monitoring the quality and purity of gas used in high voltage switchgear, circuit breakers and transformers.
Exceptional accuracy and stability are provided when measuring the purity of SF 6 gas, through specially selected sensors. The modular configuration allows for up to eight compatible gases to be analysed, simultaneously, using one analyser. The SFA2000 is fully compatible with mixtures of SF6 , CF4 , N2 and air, together with toxic contamination gases such as SO2 , H2 , HF, H2S and CO. The unit also measures the water content of the gas in dewpoint or ppm to ensure dryness is acceptable.
The SFA2000 is housed neatly into a tough Peli transport case supplied with special tongue and groove self sealing couplings, which are compatible with famous brands. Once powered and connected, the SFA2000 automatically removes a small quantity of gas from the electrical equipment, controlled with an auto gas pressure sensing function. A vacuum purge cycle and internal gas storage system ensures that no air can
contaminate the gas sample and that no SF 6 gas is able to escape during the testing period. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading. A powerful 10 bar compressor, with a separate lithium battery power supply, then returns the gas to the electrical equipment at high pressure. Results are displayed on screen and printed using the inbuilt thermal printer. The SFA2000 has multiple safety features built in to ensure the cycle is completed correctly without gas loss or cross contamination.
The analyser is pre-programmed with all current IEC and CIGRE test configurations, with the ability to create customised test parameters.
Please contact KGT for further information or to discuss.
Though highly configurable to suit individual customer requirements, the SFA2000 SF6 Pump Back has a number of standard features to enhance functionality.
Modular sensor choice
7" full-colour touchscreen
Vacuum line purge
Walk away timer
Auto abort function
Auto clean function
Fully automatic testing and data logging
Gas cylinder testing mode
Vehicle charger
Inbuilt CIGRE & IEC Tests
SF 6 Gas
SF 6 is an extremely stable, non-flammable and highly electronegative gas with excellent dielectric properties. It is commonly used in medium and high-voltage electrical equipment as an electrical insulator, arc-quenching and cooling medium. However, SF 6 is classified as a greenhouse gas and must be kept within a closed circuit to avoid any deliberate release into the atmosphere. The international Kyoto agreement protocol has mandated reductions to harmful emissions amongst its member states. For the power transmission and distribution network, SF 6 technology remains essential. To protect personnel, equipment and the environment, regular SF 6 analysis should be adopted within the maintenance schedule. The early identification of any decomposition products and moisture within the SF 6 gas will help avoid unnecessary shutdowns, outages and failures, in addition to reducing maintenance expenditures.

Accessories
1.Calibration Kit and Service
2.Gas Recovery Bag
3.Tongue and Groove Self Sealing Couplings

Specification
Ambient Operating Conditions                                             -20°C to +40°C, 10-90% RH, 800-1100mbara
Warm-up Time                                                                      3-4 minutes at 20°C
Voltage (Charging)                                                               90-260 VAC, 50/60Hz
Battery Life                                                                           Up to 8 hours. 4-6 hour charge
Sample Connections                                                            Special tongue and groove self sealing couplings (compatible with famous brands)
Data Outputs                                                                        Excel compatible data via USB memory stick
Data Storage                                                                        4GB internal data storage allowing for approximately 1 year of continuous monitoring
Compressor                                                                         Up to 10 Bar with up to 25 cycles per battery charge
Measurement Time                                                              8 minutes
Pressure Range                                                                   0.5-10 Bar; displayed on screen
Gas Flow Rate                                                                     0.5l.min -1
Max Inlet Pressure                                                              10 Bar gauge
Display                                                                                 7" (180mm) full-colour LCD touch screen interface with soft menu keys
Printer                                                                                  Integrated thermal printer allows output of results on demand
Analyser Dimensions                                                           300mm(H) x 650mm(W) x 500mm(D)
Weight                                                                                 30kg (total instrument and case)

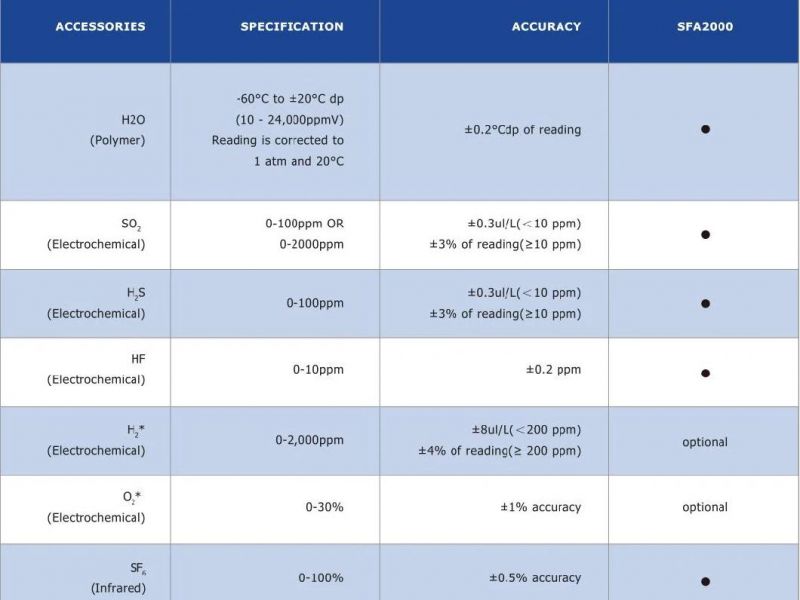

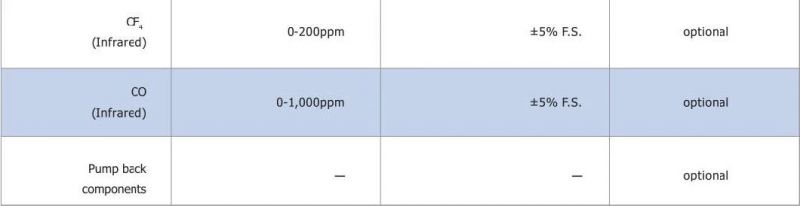

SFA2000 SF6 Gas Analyzer Configuration
The modular configuration allows for up to eight compatible gases to be analysed simultaneously with one analyser.
