• Model NO.：JX5
• Detector Resolution：129±5EV
• Measuring Content Range：Ppm-99.99%
• Detection Limit：The Minimum Detection Limit of Ppm Level
• Inflatable System：Atmospheric Ammonia Filling System
• Transport Package：Wooden Package
• Trademark：wuxi jinyibo
• Origin：Jiangsu Wuxi
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. JX5 Detector Resolution 129±5EV Measuring Content Range Ppm-99.99% Detection Limit The Minimum Detection Limit of Ppm Level Inflatable System Atmospheric Ammonia Filling System Transport Package Wooden Package Trademark wuxi jinyibo Origin Jiangsu Wuxi Production Capacity 30 Sets/Month

Product Description

Product description

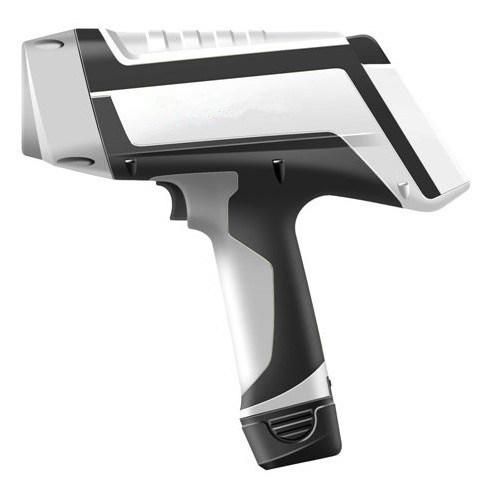

JX5 Handheld Alloy Analyzer (XRF)
Better, Faster Alloy Analysis
Specification
Excellent Performance
One-touch operation
Nondestructive testing (NDT)
Scrap metal recycling and sorting
Alloy material identification (PMI)
Material brand recognition (Grade ID)
All important elements from Mg to U
Comprehensive safety features and functions
Quality control, quality assurance (QC/QA) and error-proofing (PKKA - YOKE)
Summary
The JX5 Handheld Alloy Analyzer supplies elemental analysis of myriad materials in widely varying conditions. These energy dispersive X-ray fluorescence devices are recognized for ruggedness and reliability on the job. They offer alloy materials identification in seconds, with innovative technologies and designs that provide repeatable, laboratory-quality results. Simple, user-friendly displays and efficient ergonomics make these instruments extremely easy to use.
JX5 Handheld Alloy Analyzer is designed for identifying the reliability of metal material and alloy nameplate. It has the characteristics of small volume, light weight, easy to carry, no need for sample preparation, alignment measurement, high precision, rapid detection, great value and excellent performance. It can be widely used in all kinds of metal and alloy samples grades and metals rapid analysis, and etc.

Applications
1. Metal material analysis and alloy grade confirm(PMI)
Alloy grade analysis:2-5s rapid analysis, alloy grade display, it includes 250 kinds of alloy grade, it can define 1000 kinds of alloy grade,it can analyze alloy sample of more than 1000 types.

Alloy content analysis:10-30s accuracy analysis.
It can analysis: stainless steel, alloy steel, copper alloy, zinc alloy, tutania alloy, nickel alloy, titanium alloy, aluminium alloy(weightily element), it can also analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Hf, Ta, Re, Pb, Bi, Zr, Nb, Mo, Ag, Sn, Sb and other elements.

Metal flotsam reclaim and recycle: it can be used to reclaim disthrone metal. It can rapid determinant a great of complex kinds of metal alloy.

Can be applied in metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries, JX5 Handheld Alloy Analyzer secures the use of the alloy completely in accord with the design requirements for specification parts of the sample, ensures the quality of products and avoids mixing materials or use of unqualified materials, which could result in serious safety accidents. It is the instrument for choice of material quality system confirmation, semi-finished product inspection, and finished product review.
Parameter

Weight	1.9Kg (with battery). Whole packing will be 7Kg.
Dimensions	290 x 90 x 290 mm(L x W x H).
Excitation source	Integrated mini voltage power and x ray tube, longtime life, max power 4 Watts. (4000-6000 hours working time)
Detector	Si-PIN electric cooling detector, high count rate.
Range of detection	All elements from Mg to U.
Signal processor	America digital amplifier, high count efficiency.
lOperation system	PDA Windows Mobile 5.0
lCooling system	Peltier cooling system, long-time life.
lPower	DC chargeable lithium battery, each battery can supply 8-hours work consistently.  Or AC:220V,50/ 60Hz can be applied.
lScreen	240x320 color led; 65,536 color pixel; touch screen.
lTest modes	Qualitative analysis, quantitive analysis, and semi-quantitive analysis.
l Data Communications	USB, wireless and bluetooth.
l Data stored	8G flash card.
lEmployment temperature	-10~50ºC
l Relative humidity	≤85%.
l Analysis accuracy	≤0.3wt%.
