• Model NO.：950
• Accuracy：±2% of Fs Range
• Repeatability：±1% of Fs Range
• Principle：Ion Current Technology
• Sensor Life：More Than 3 Years (in Normal Condition)
• Warranty：12 Months Analyzer; 12 Months Sensor
• Response Time：90% of Fs Reading in 20 Seconds
• Sample Gas Flow Speed：400-600ml,Min
• Signal Outputs：4-20mA
• Installing Dimension：150mm*74mm*167mm
• Transport Package：Carton
• Specification：ISO9001
• Trademark：BROTIE
• Origin：China
• HS Code：8414809090
• Production Capacity：10000sets,Year

Basic Info.

Model NO. 950 Accuracy ±2% of Fs Range Repeatability ±1% of Fs Range Principle Ion Current Technology Sensor Life More Than 3 Years (in Normal Condition) Warranty 12 Months Analyzer; 12 Months Sensor Response Time 90% of Fs Reading in 20 Seconds Sample Gas Flow Speed 400-600ml/Min Signal Outputs 4-20mA Installing Dimension 150mm*74mm*167mm Transport Package Carton Specification ISO9001 Trademark BROTIE Origin China HS Code 8414809090 Production Capacity 10000sets/Year

Product Description

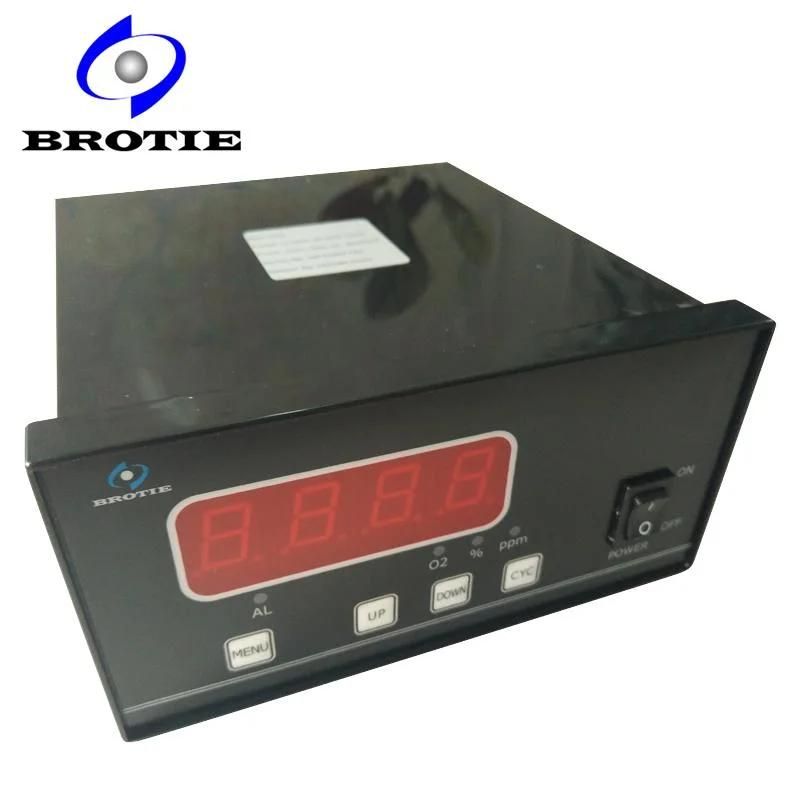

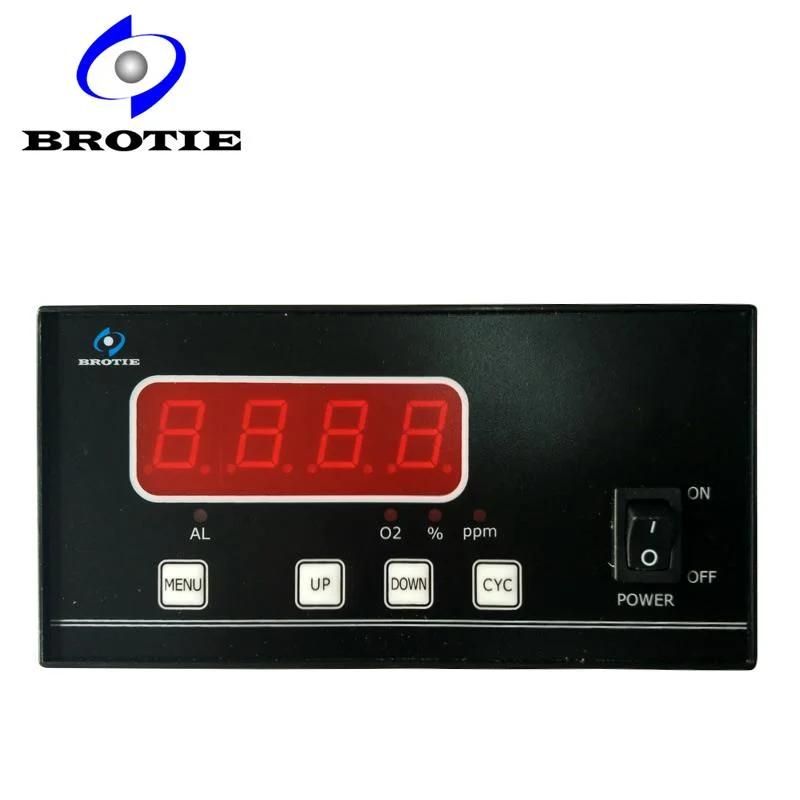

BROTIE High Purity Oxygen Analyzer(Economical model)

Features:

• New pattern, long-life, with long service life, fast response and high sensitivity;
• Sensor designed by ion current technology;
• Menu locking function provided, avoid the misoperation to change the parameters on the analyzer;
• Automatically memorizing system equipped, operation time of the analyzer will be recorded automatically ;
• Compact size, simple construction, easy on operation and after service;

Industries Served:
It can be used in high purity oxygen production(PSA, VPSA, Cryogenic), metallurgy, health, petrochemicals, and power electronics industries.
Specifications:

Range:	10.00%-96.00%, 10-99.00%(special model)
Accuracy:	±2% of FS range, ±0.2% of 80-99%
Repeatability:	±1% of FS range
Principle:	Ion current technology (can service in Air and inert gases, not corrosive gases.)
Sample gas flow speed:	400~600ml/min
Stability:	±1% of FS/7d
Response time:	90% of FS reading in 60 seconds
Power supply:	220V±10%, 50/60Hz
Signal outputs:	4-20mA
Expected analyzer life:	More than 5 years (in normal condition)
Expected sensor life:	2-3 years (in normal condition)
Installing dimension:	W×H×D=150mm*74mm*167mm

BROTIE High Purity Oxygen Analyzer(Professional model)

Features:

• New pattern, long-life, conversion ion current tester with fast response and high sensitivity;
• A standard RS232C interface;
• Setting alarm value and contact output value arbitrarily;
• High precision, automatic temperature compensation, eliminating the impact of environmental temperature;
• Setting upper and lower alarm values arbitrarily during the measurement range;

Industries Served:
It can be used in high purity oxygen production, metallurgy, health, petrochemicals, and power electronics industries.
Specifications:

Range:	10-99.99%/50-99.99%/90-99.99%/97%-99.99%O2;auto-ranging
Accuracy:	±0.5% of FS range, ±0.1% of 90-99.99%
Repeatability:	Cv≤0.5%
Preheating time:	300s
Sample gas flow speed:	150~300ml/min
Stability:	zero drift ≤0.5% of FS/7d , span drift ≤0.5% of FS/7d
Response time:	90% of FS reading in 15 seconds
Sensitivity:	0.01% O2
Power supply:	85-265 VAC, 50/60Hz, power loss≤6w

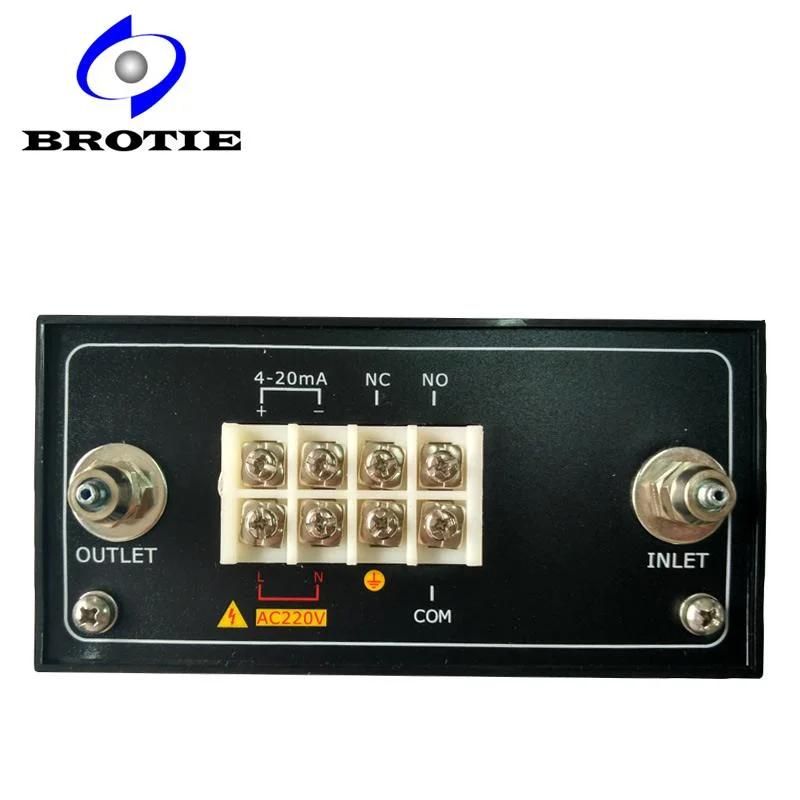

Signal outputs:	4-20mA or 0-5V DC isolated
Contact capacity:	125VAC 0.3A, 110VDC 0.3A, 30VDC 1A
Expected sensor life:	3 years (in normal condition)
Installing dimension:	W×H×D=92mm*92mm*110mm
