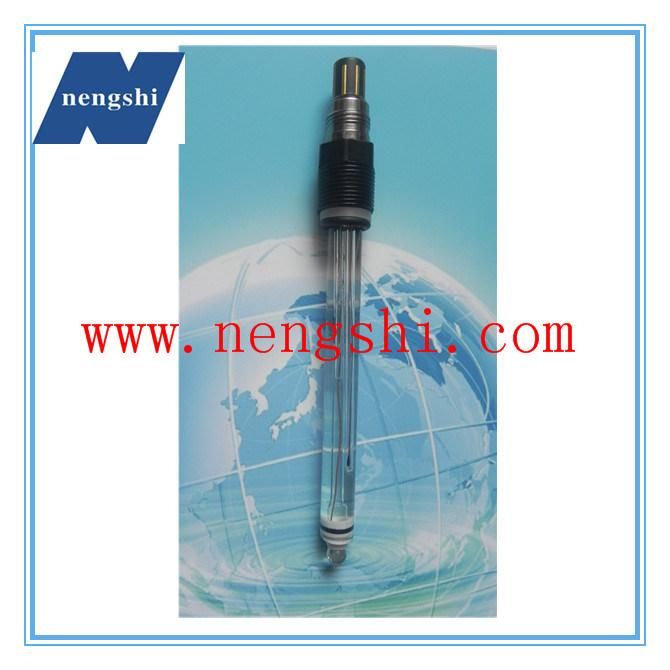

Online Industrial High Temperature pH Electrode for pH Meter

Nengshi Analytical Sensor Co., Ltd.
  • Display：pH Meter
  • Appliance：Pharmacy and Fermentation Industy
  • Portable：Portable
  • Certification：RoHS
  • Type：pH Electrode
  • Material：Glass

Base Info

  • Model NO.：ASP2321, ASP3351
  • Measurement：0-14pH
  • Use Temp. Range：0-130ºC
  • Use Pressure Range：0-0.6MPa
  • Thread：Pg13.5
  • Thermistor：According to User
  • Cable：According to User
  • Transport Package：Paper Box
  • Specification：12*120
  • Trademark：NENGSHI
  • Origin：Wuhan China
  • HS Code：90279000
  • Production Capacity：3000 Piece,Year

Description

Technical feature:·The measurement range:0~14 pH , zero point Eo=7pH and the pressure resistance:0.6MPa.·The temperature range:0~130ºC,suitable for steam sterilizable.·Good stability and small drift of electrode.·Quick response of electrode.·The electrode is in accordance with the requirements on sanitation of foods.·The dimension of the electrode is φ 12x120, 150 and 225 or other dimensions.Online Industrial High Temperature pH Electrode for pH Meter
· Direct use with various pH meters as a complete set.· Plug-in connection; convenient installation and replacement.· It can be installed with the theread PG13.5.· Gel sensor. it is unnecessary to fill electrolyte, convenient to use. · pH range:0-14; zero point: E0=7pH; Temperature rang: 0-130ºC.
· pressure range:0.6MPa.
·The external dimension of the electrode isΦ12×120,225 or other size.
· The outer tube material: glass.Selection of model:· ASP2321 two in one combination electrode · ASP3351 three in one combination electrode,Please note the value of  the thermistor
   when order:Pt100,Pt1000,2.252K,10K,22K etc.
