• Model NO.：GD-265D-1
• Mode：Semi-Auto
• Product Name：Petroleum Products Kinematic Viscosity Tester

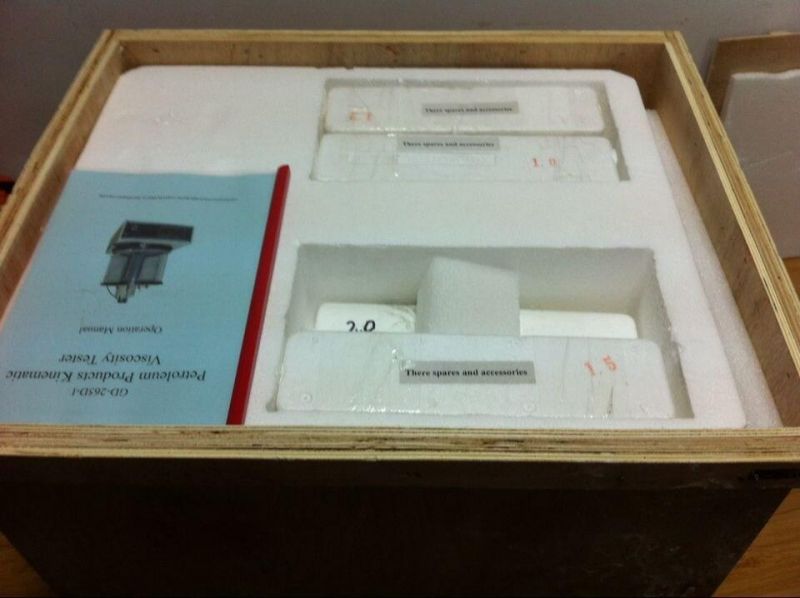

• Transport Package：Wooden Case
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9013809000
• Production Capacity：10 Set,Sets Per Month

Basic Info.

Model NO. GD-265D-1 Mode Semi-Auto Product Name Petroleum Products Kinematic Viscosity Tester Transport Package Wooden Case Trademark GOLD Origin Chongqing, China (Mainland) HS Code 9013809000 Production Capacity 10 Set/Sets Per Month

Product Description

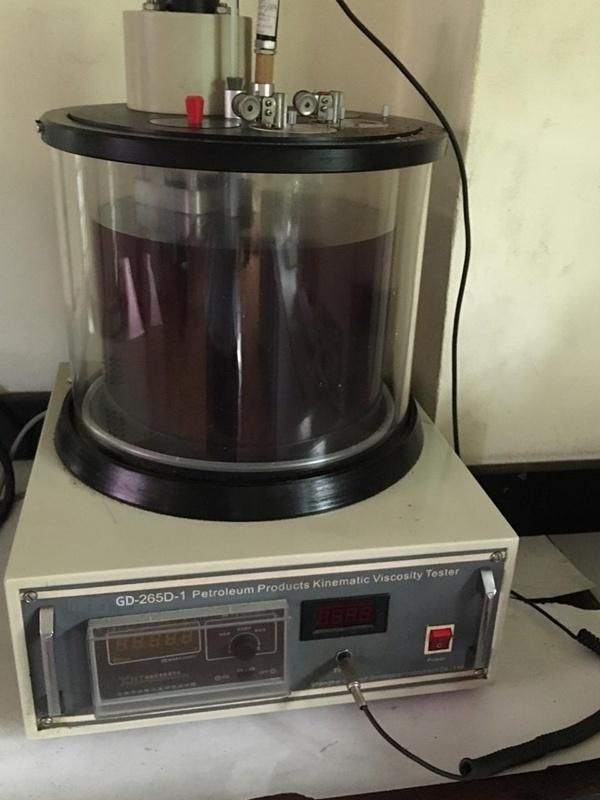

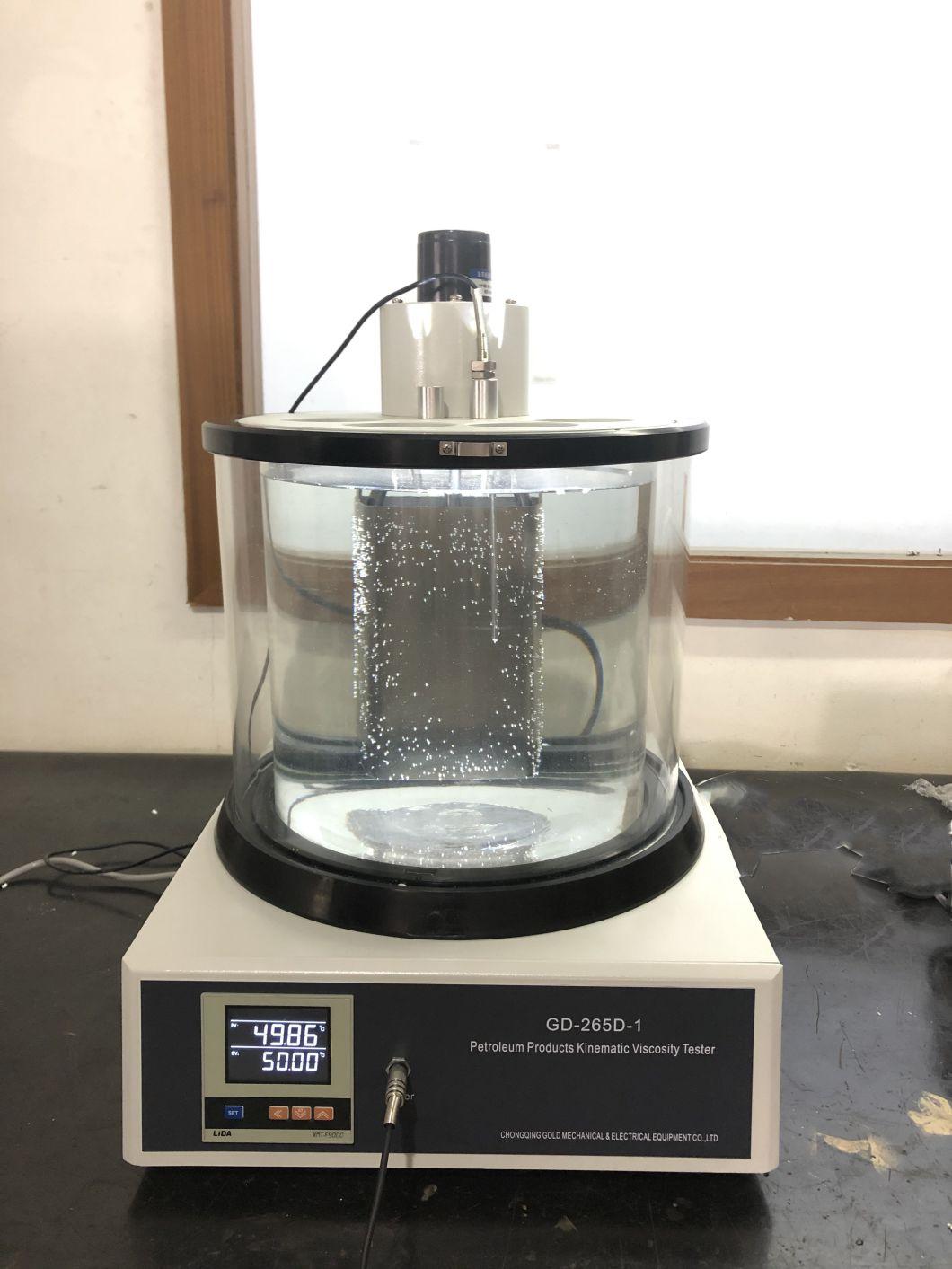

GD-265D-1 Petroleum Products Kinematic Viscosity Tester


Introduction:
GD-265D-1 Petroleum Products Kinematic Viscosity Tester is designed and made as per ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids. ASTM D445 Kinematic Viscometer  is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian liquids) by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature.



I. Main technical features:
1. ASTM D445 Kinematic Viscometer is a kind of specially-made testing machine which the temperature control accuracy can reach ±0.01ºC and having digital display.
2. Kinematic Viscosity Apparatus adopts hard glass bath and heat preservation cover(double shell).Good heat prevention and easy to observe the sample.
3. Kinematic Viscosity Test Equipment adopts desktop and all-in-one machine design,convenient to use.
4. Kinematic Viscosity Bath adopts electric stirrer to ensure the uniform of bath temperature.



II. Main technical specifications:
1. Power supply: AC 220 ± 10 %, 50 Hz.
2. Heating power:1000W(auxiliary heating), 600W(temperature control heating)
3. Power for stirrer: 6W, rotating speed:1200RPM
4. Temperature range: room temperature~100 ºC.
5. Temperature control accuracy: ±0.01ºC.
6. Timer: 0.0s~999.9s
7. Constant temperature bath: 20L, double shall structure.
8. Ambient temperature: -10ºC~+35ºC
9. Relative humidity: <85%.
10.Maximum power consumption: 1800W.
11.Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm


Note: This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.

Name	Unit	Qty
GD-265D-1 Semi-auto Kinematic Viscometer	Set	1
Capillary viscometer(Total 7 pieces)	Group	1
Mercury thermometer   0~50 °C; 50~100 °C; scale values are both 0.1 °C)	pc	1 for each
Plummet	pc	1
Sensor	pc	1
Sensor Connector	pc	1
Power Supply Wire (250 V 10 A)	pc	1
Cover	pc	4
Capillary Clamp	Group	4
Silica Gel Stopper	pc	2
Fuse 15 A (Φ5×20)	pc	2
Rounded Glass	pc	1
Stopping ring for Thermometer (1#)	pc	4



Detail Images:
