High Quality 0~80kv Output Voltage Insulation Oil Analyzer Bdv Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China

Base Info

  • Model NO.：GDYJ
  • Production Capacity：500 Sets,Month

Description

PARAMETERGDYJ-501GDYJ-502GDYJ-502AGDYJ-503StandardsIEC60156IEC60156/IS6792/BS5874, ASTMD877, ASTMD1816IEC60156/IS6792/BS5874/VDE0370-5, ASTMD877, ASTMD1816IEC60156Output voltageAC 0~80KV/AC 0~100KVAC 0V~100KVAC 0V~80KVAC 0~80KVRate of voltage rise2KV/s±10%0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%3%RDG+0.3%FSMeasurement Precision3%RDG+0.3%FS3%RDG+0.3%FS±(1% of full scale + 2 digits)3%RDG+0.3%FSTest times setting1~9991~6Temperature measurementNoNoYesYesMaximum storage capacity100 groups100 groups100 groups100 groupsDisplay256*128 LCDLCD screen7 inch colorful LCD with touch pad256*128 LCDPrinterYesYesYesYesOil Vessle1113Power supplyAC 220V±10% 50Hz/60HzAC 220V±10% 50Hz/60HzAC 220V±10% 50Hz/60HzAC 220V±10% 50Hz/60HzOperating Temperature0-50°C0-50°Cup to 45°C0-50°CRelative Humidity≤80%RH≤80%RH≤80%RH≤80%RHDimension420*380*410mm620*430*330mm490*410*450mm420*325*300mmWeight28kg41kg45kg28kg

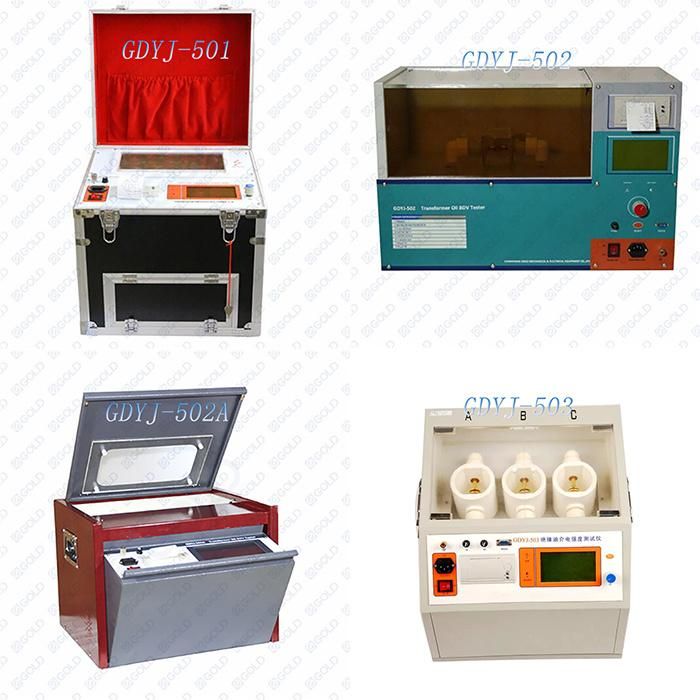

PRODUCT SHOW:

High Quality 0~80kv Output Voltage Insulation Oil Analyzer Bdv Tester

CERTIFICATE:
High Quality 0~80kv Output Voltage Insulation Oil Analyzer Bdv Tester


Company Information
CHONGQING GOLD MECHANICAL & ELECTRICAL EQUIPMENT CO., LTD
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd.  mainly design and manufacture the oil purifier and electrical testing equipment for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
High Quality 0~80kv Output Voltage Insulation Oil Analyzer Bdv Tester

Our Exhibition
High Quality 0~80kv Output Voltage Insulation Oil Analyzer Bdv Tester


Our Advantages

  • Quality Assurance
    We have more than 20 years' experience in designing and manufacturing these equipment, so our equipment is stable, reliable, with high quality and good reputation.
    All the products have been run well and adjusted to good condition before delivery, operator only need to follow the user manual to operate it.
  • Technical Support
     Our technical team supports our customers at all time with our long experience, expert advice and the unlimited spirit to always providing the best customer service.
    You can arrange your engineer to our company to get free training. If necessary, we can also arrange our engineer to your company for training and commissioning at your cost.
  • Service
    Provide professional advice and reasonable offers within 2 hours at working time, and within 12 hours at non-working time.
    One year warranty for all the products, life time technical consulting, life time provision of spare parts, free software upgrades.
Our Services
Pre-sale Service:
  • Inquiry will be replied within 24 hours.
  • Welcome to visit our factory.
  • Technical datas and operation manual sent for evaluation.
After-sale Service:
  • Training how to instal the machine, training how to use the machine at our factory;
  • Engineers available to service machinery overseas at customers' cost.
FAQ
  • What's the delivery lead time?
"For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."
  • What's the payment term?
"For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."
  • What's the warranty period?

"Warranty period is 1 year."
