• Model NO.：GDHL-100A,200A
• Rated Power Supply：AC220V
• Size：340mm*280mm*210mm
• Environment Temperature：-10 ºC~+40 ºC
• Relative Humidity：<80%

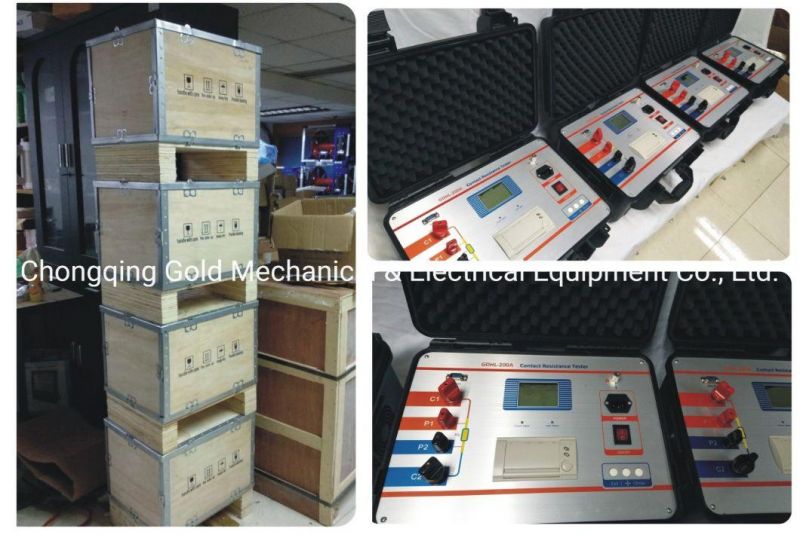

• Transport Package：Standard Wooden Case
• Specification：340mm*280mm*210mm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9031809090
• Production Capacity：200pieces,Month

Basic Info.

Model NO. GDHL-100A/200A Rated Power Supply AC220V Size 340mm*280mm*210mm Environment Temperature -10 ºC~+40 ºC Relative Humidity <80% Transport Package Standard Wooden Case Specification 340mm*280mm*210mm Trademark GOLD Origin Chongqing, China (Mainland) HS Code 9031809090 Production Capacity 200pieces/Month

Product Description

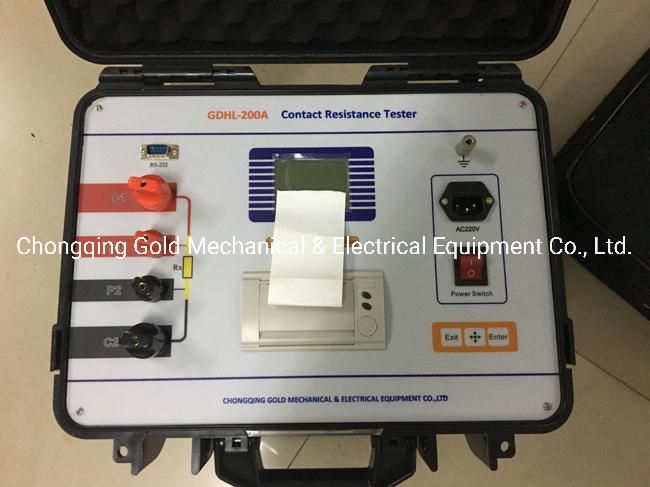

GDHL-100A/200A Breaker Contact Resistance Tester Switchgear Micro Ohm Meter





Introduction:

• Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.

• It is designed according to IEC62271.

• The main application of the tester is measurement of circuit breaker contact resistance.

• All the test results of the tester could be print by the micro-printer which is integrated in the tester.

• Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.



Features:

• Rapid test;

• Result print;

• Upload data to PC;

Specifications:



No.	Item Name	GDHL Series Circuit Breaker Contact Resistance Tester, Micro ohm meter
1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm*280mm*210mm
9	Environment temperature	-10 ºC~+40 ºC
10	Relative humidity	<80%
