• Model NO.：HT-5908A
• Line Frequency：45.0 to 65.0Hz
• Neutral-Ground Voltage：0 to 10V
• RCD Trip Current：30mA to 37mA
• RCD and GFCI Trip Time：1ms to 6.5s
• Transport Package：Carton
• Specification：194mm*78mm*37mm
• Trademark：HOTOTECH
• Origin：Dongguang
• HS Code：9030339000
• Production Capacity：5000 Set a Month

Basic Info.

Model NO. HT-5908A Line Frequency 45.0 to 65.0Hz Neutral-Ground Voltage 0 to 10V RCD Trip Current 30mA to 37mA RCD and GFCI Trip Time 1ms to 6.5s Transport Package Carton Specification 194mm*78mm*37mm Trademark HOTOTECH Origin Dongguang HS Code 9030339000 Production Capacity 5000 Set a Month

Product Description

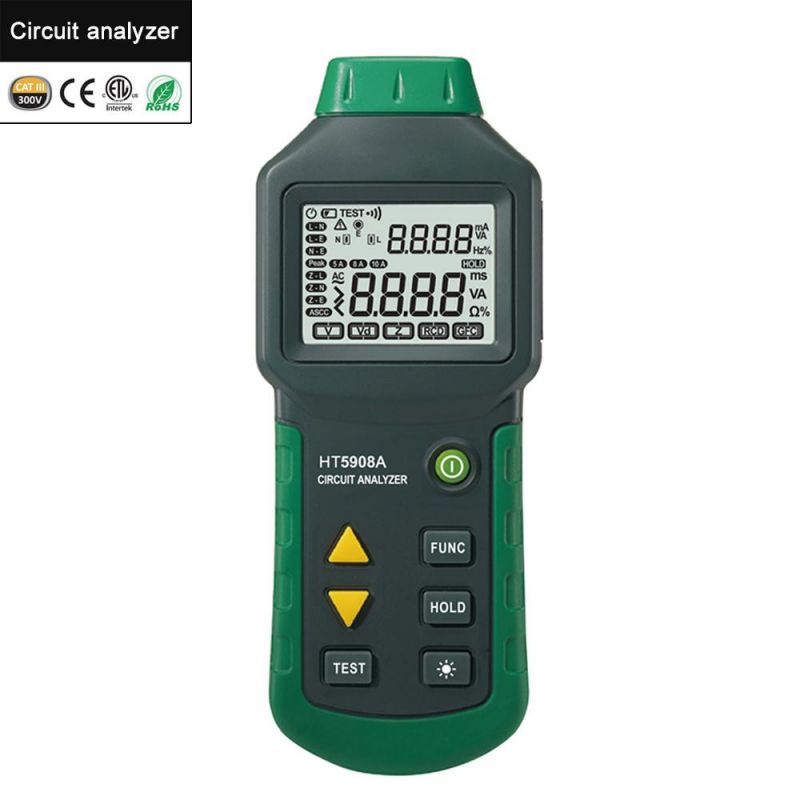

HT-5908A--Circuit Analyzer

feature

--data storage
--Quickly check the correct wiring
--Identifies proper wiring in 3-wire receptacles
--solve faulty splices and connections,
--solve incorrect wiring
--solve undersized wiring
--solve faulty GFCIs
--solve faulty or incorrectly wired AFCIs
--solve incorrect line voltage
--solve poor ground quality
--TRMS AC voltage measuremen
--ower quality monitor

the photo show



specifications

Specifications	Range	Resolution	Accuracy
Line voltage	85.0~135.0V	0.1V	±(1.0%+2)
Peak Line Voltage	120.0~190.0V	0.1V	±(1.0%+2)
Voltage with Loading equipments	10.0~135.0V	0.1V	±(2.5%+2)
Line frequency	45.0~65.0HZ	0.1HZ	±(1.0%+2)
Impedance-live and Neutral & Earth	0.00~3.00Ω	0.01Ω	±(2.5%+2)
	>3.00Ω	0.01Ω	NO ensure
Neutral-Ground Voltage	0.0~10.0V	0.1V	±(2.5%+2)
RCD trip time	1ms~6.5S	1mS	±(1.0%+2)
RCD trip current	30mA~37mA	0.1mA	±(1.0%+2)
GFCI trip time	1ms~6.5S	1mS	±(1.0%+2)
GFCI trip current	6mA~9mA	0.1mA	±(1.0%+2)
Voltage drop	0.1~99.9%	0.1%	±(2.5%+2)
Voltage drop load current	12/15/20A

General
Power supply:6*1.5V AAA Batteries
Product size:194mm*78mm*37mm/7.64"*3.07"*1.46"
Product weight:254g/0.56lb
Certificate:CE/ETL/RoHS
Safety rating:CAT III 300V
Accessories include:Power cord
                                Carry bag
                                Battery and user´s manual
