W5 Optical Emission Spectrometers for Galvalume Base Material
Wuxi JinyiBo Instrument Technology Co., Ltd.- Detector：Advanced CMOS Detector
- Technological Level：International Standard
- Analytical Method：Full Digital and Spectrum Direct Reading
- CCD Pixel Resolution：6pm
- Grating Lines：3000term,mm
- Light Source Type：All New Adjustable Digital Light Source and Heps
Base Info
- Model NO.：W5
- Excitation Frequency：100-1000Hz
- Vacuum System：Automatic Control and Monitoring Vacuum Software
- Transport Package：Wooden Package
- Trademark：wuxi jinyibo
- Origin：Jiangsu Wuxi
- HS Code：9027300000
- Production Capacity：30 Sets,Month
Description
Optical systemOptical structureThe Paschen Runge construction full vacuum type optics systemRoom temperature35ºC±0.5ºCWavelength range170-580nmFocal length 400mm Grating line 3600m1/mm First order spectral line dispersion rare 1.2nm/mm Detector Multi block high performance linear CMOS array Average resolution ratio 10pm/pixel Excitation tableGas Rushing argon(99.999%)Argon flow rate When excited: 3-5L/min
Standby time: no need for standby trafficElectrode Tungsten electrode technologyPurge Automatic purge functionMake upThermal deformation self-compensation designAnalyze the gapSample stage:3.4 mmExcitation lightType HEPSFrequency 100-1000HZDischarge current1-400ASpecial technologyOptimization of discharge parameters designPre -combustionHigh-energy pre-combustion technologyProcessorHigh end ARM, high-speed data synchronization acquisition and processingData collection systemInterface Ethernet data transmission based on DM9000AEnter 220VAC 50/60HzThe requirements of power and environmentPower Maximum:700W standby:40WWorking temperature10-35ºC(temperature ≥5°C)Working humidity20-85%

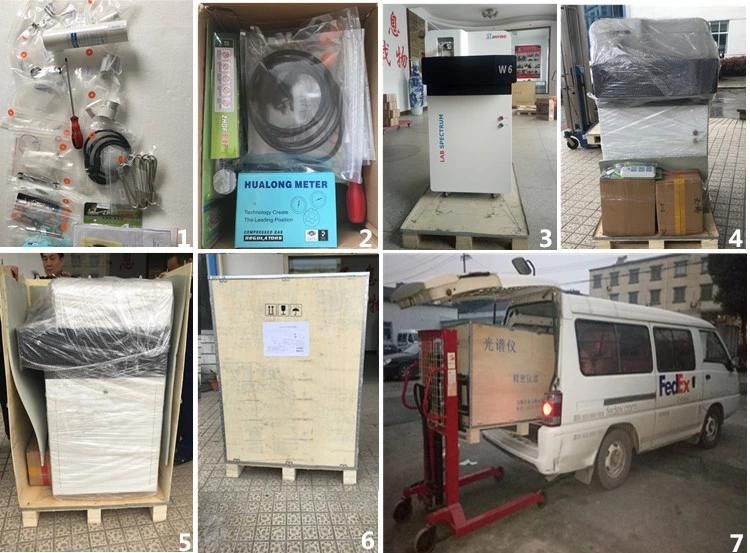

Packing & Shipping
Standby time: no need for standby trafficElectrode Tungsten electrode technologyPurge Automatic purge functionMake upThermal deformation self-compensation designAnalyze the gapSample stage:3.4 mmExcitation lightType HEPSFrequency 100-1000HZDischarge current1-400ASpecial technologyOptimization of discharge parameters designPre -combustionHigh-energy pre-combustion technologyProcessorHigh end ARM, high-speed data synchronization acquisition and processingData collection systemInterface Ethernet data transmission based on DM9000AEnter 220VAC 50/60HzThe requirements of power and environmentPower Maximum:700W standby:40WWorking temperature10-35ºC(temperature ≥5°C)Working humidity20-85%
