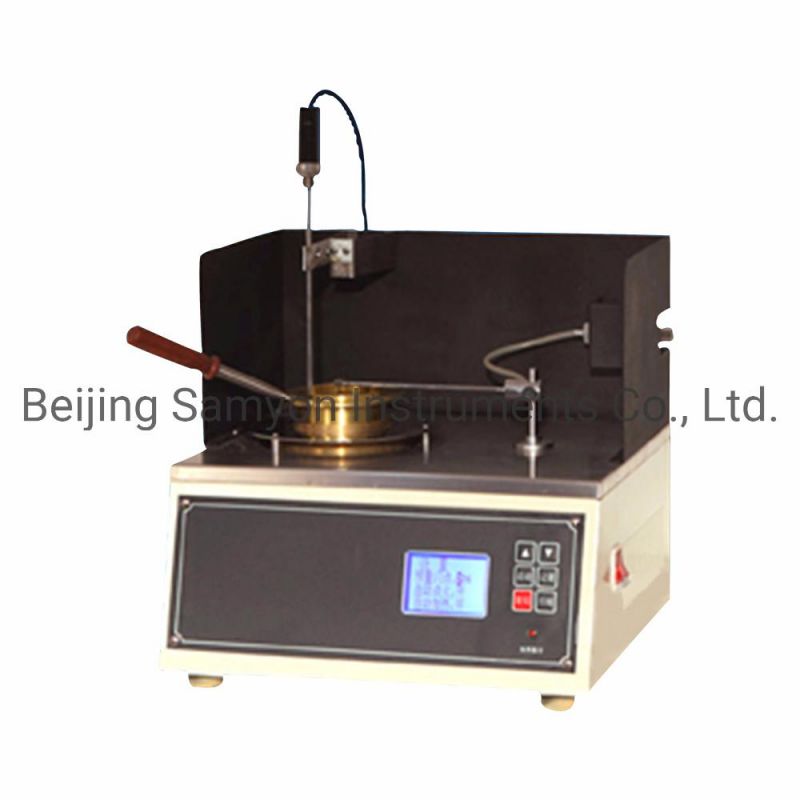

Semi-Automatic Cleveland Open-Cup Flash Point Tester

Beijing Samyon Instruments Co., Ltd.
  • Heating Device：Electric Furnace Heating
  • Temperature Control：Single Chip Microcomputer.
  • Temperature：Range Is 0oc~400oc, Accuracy Is 0.1oc
  • Maximum Power Consumption：650W
  • Transport Package：Carton Case
  • Specification：SGS

Base Info

  • Model NO.：SY-3536-1
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1. Power supplyAC(220±10%)V, 50Hz.2. Heating deviceElectric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400ºC.3. Temperature controlSingle chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.4. Temperature displayLCD screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC.5. Flash point detecting devicescanning the flash point automatically.6. Temperature sensorRTD, PT1007. Igniting device(1) Ignition source: coal gas (or civil gas,the same below)
(2) Flame diameter is 3.2mm~4.8mm8. Ambient temperature(-1050)ºC9. Relative humidity≤85%10.Maximum power consumption650W11.Dimension340mm*320mm*450mm (Temperature sensor is included)
1. Power supply: AC(220±10%)V, 50Hz.
2. Heating device: Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400ºC.
3. Temperature control: Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.
4. Temperature display: LCD screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC.
5. Flash point detecting device: scanning the flash point automatically.
6. Temperature sensor: RTD, PT100
7. Igniting device:
(1) Ignition source: coal gas (or civil gas,the same below)
(2) Flame diameter is 3.2mm~4.8mm
8. Ambient temperature: (-1050)ºC
9. Relative humidity: ≤85%
10.Maximum power consumption: 650W
11.Dimension: 340mm*320mm*450mm (Temperature sensor is included)Semi-Automatic Cleveland Open-Cup Flash Point TesterSemi-Automatic Cleveland Open-Cup Flash Point TesterSemi-Automatic Cleveland Open-Cup Flash Point TesterSemi-Automatic Cleveland Open-Cup Flash Point Tester
