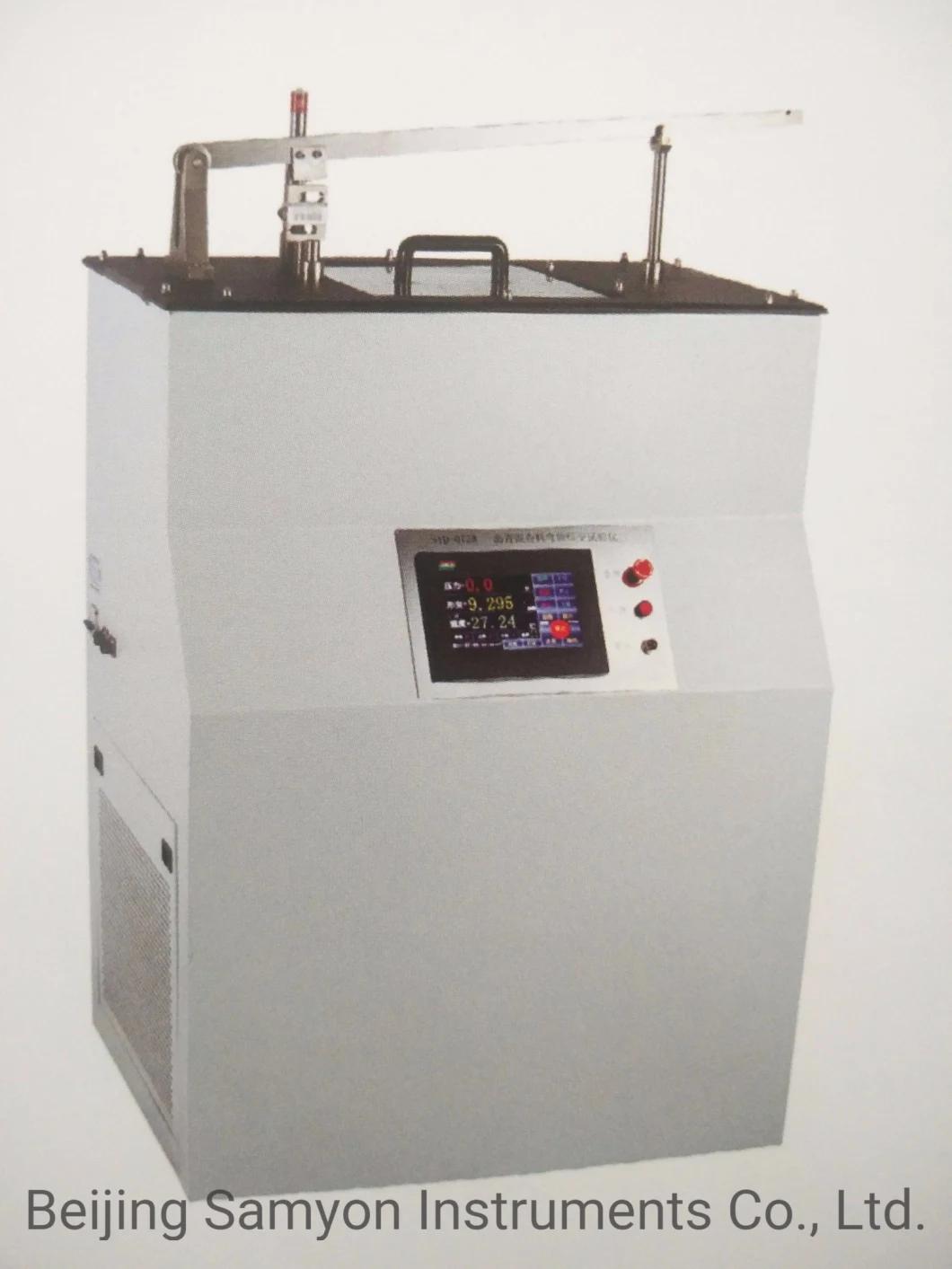

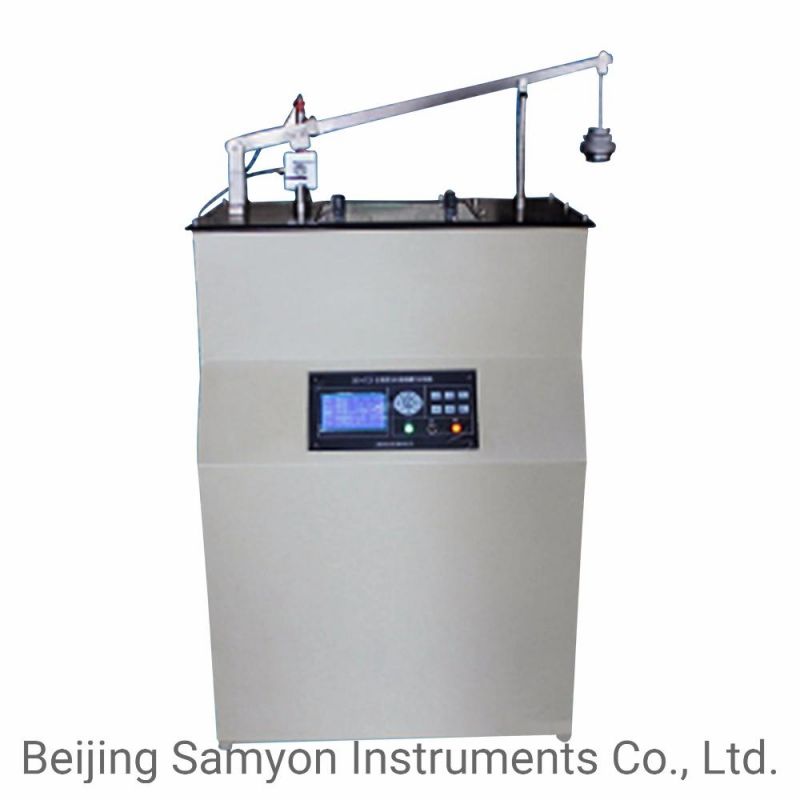

Bituminous Mixtures Bending Beam Rheometer

Beijing Samyon Instruments Co., Ltd.
  • Loading Capacity：5kn
  • Measuring Range：0mm~20mm
  • Measuring Bias：=<+,-0.01mm
  • Lifting Speed of Pressure Machine：(50+,-5)mm,Min
  • Temperature Control Range：-2oc~60oc
  • Transport Package：Carton Case

Base Info

  • Model NO.：SY-0728
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

Loading capacity5kNMeasuring range0mm~20mm(mid-span deflection)Measuring bias≤±0.01mmLifting speed of pressure machine(50±5)mm/minTemperature control range-2ºC~60ºCTemperature control bias≤±0.5ºCMotor power90WCompressor power1kWHeating power2kWPump power45WCommunication portRS232Power supplyAC(220±10%)V,50HzNet weight86kg
1. Loading capacity: 5kN
2. Measuring range: 0mm~20mm(mid-span deflection)
3. Measuring bias: ≤±0.01mm
4. Lifting speed of pressure machine: (50±5)mm/min
5. Temperature control range: -2ºC~60ºC
6. Temperature control bias: ≤±0.5ºC
7. Motor power: 90W
8. Compressor power: 1kW
9. Heating power: 2kW
10. Pump power: 45W
11. Communication port: RS232
12. Power supply: AC(220±10%)V,50Hz
13. Net weight: 86kg
