Analysis Instrument

Portable Glossmeter with PC Software GM60

Sino Age Development Technology
  • Delivery:Within 3 Workdays Upon Receipt of Full Payment
  • Aper Ture (mm):20°, 60°, 85°
  • Power Supply:+5V, AA*4
  • Dimension (mm):164×58×88
  • Net Weight(G):520
  • Transport Package:Carton

Base Info

  • Model NO.:GM60
  • Specification:SGS
  • Trademark:SADT
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:50 Piece,Pieces , Week

Description

Basic Info.

Model NO. GM60 Specification SGS Trademark SADT Origin China HS Code 9031809090 Production Capacity 50 Piece/Pieces / Week

Product Description

Digital Glossmeter GM60 / Vancometer GM60

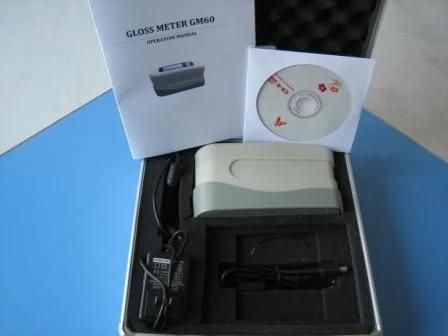

Portable Gloss Meter with PC Software GM60


Introduction
GM Series gloss meters include GMS tri-angle gloss meter and GM60 single angle gloss meter. They are designed and manufactured to test gloss according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/ T8807. The technical parameters is up to JJG696-2002. GM Series gloss meters can be widely used to measure painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.

Key features
Precision appearance design, more suitable for human characteristic, easy to use.
Three-angle gloss data is displayed simultaneously, can satisfy various require-ments. (Only for GMS)
Large memory for measurement data.
Latest Bluetooth function and removable memory card to transmit data conveniently.
Speical designed gloss software to analysis data and output.
Prompt for low battery and full memory.

With internal Bluetooth module or USB interface, GM gloss meter can transfer data with PC easily. The measuring data also can be exported to printer via printing interface. Optional SD card makes the memory as large as you want.


Specifications
ModelGM60
ApplicationPainting, printing, floormaterial, plastic, ceramics, leather, hardware, plating
Measuring Range(Gu)0~120, 120~1000 @ 60°
Readout Error(Gu)±1.5 (0~120)
±1.5%(120~1000)
Repeatability±0.5 (0~120)
±0.5%(120~1000)
Aper ture (mm)60°
Measurement Spot (mm)9×15
Memory900 data or 30 groups, CF card (optional)
Inter faceUSB / printer /Bluetooth (Bluetooth is only avalaible for GMS)
SoftwareData managing software
Power Supply+5V, AA*4
Working Environment10~40ºC, <85%RH,
Dimension (mm)164×58×88
Net Weight(g)520
StandardsISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807
