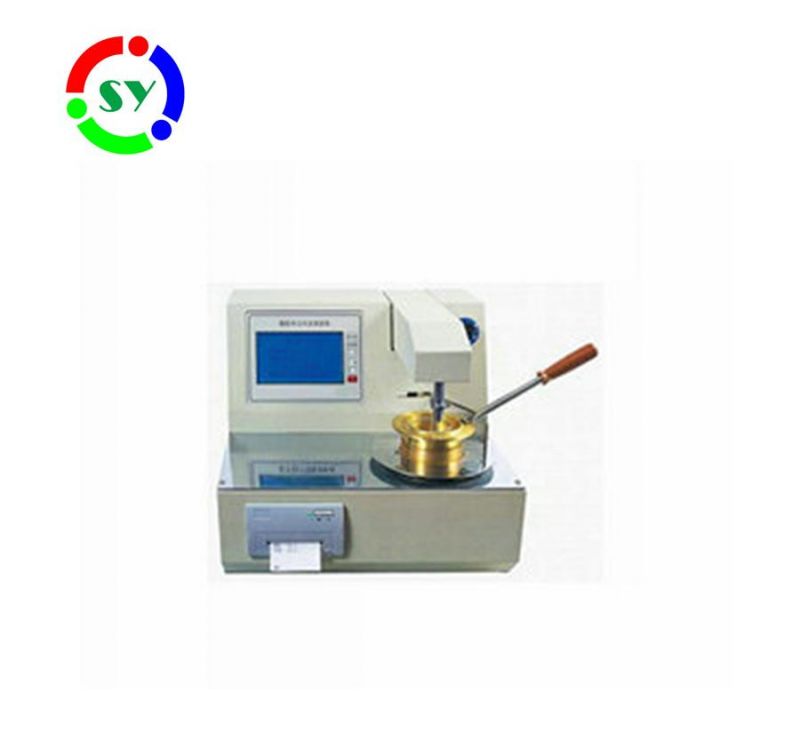

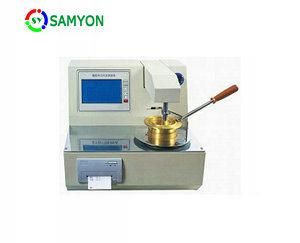

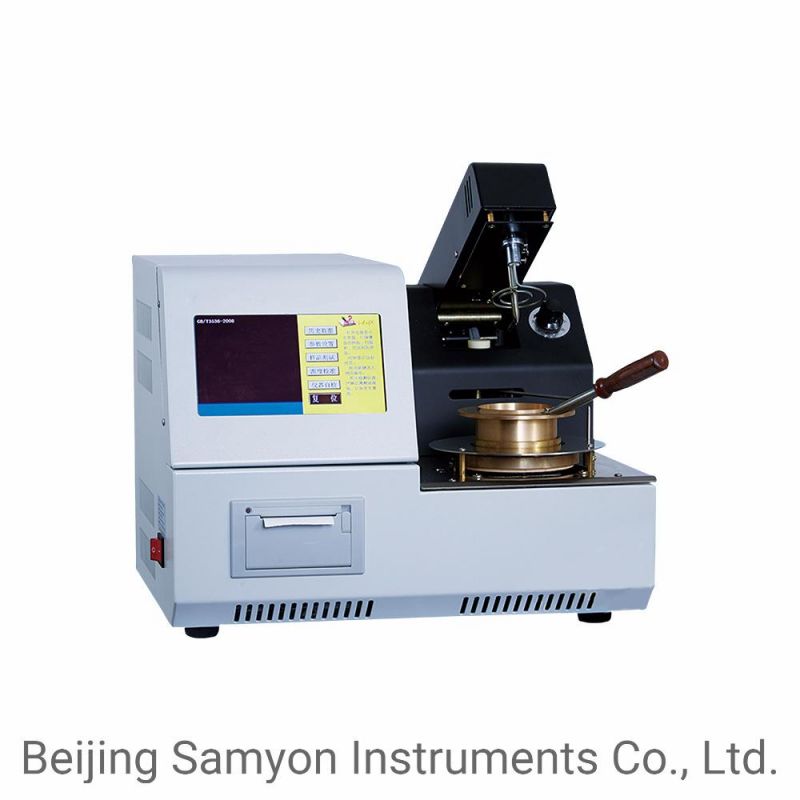

Sy-3536A Automatic Cleveland Open Cup Flash Point Tester

Beijing Samyon Instruments Co., Ltd.
  • Power Supply：AC(220±10%)V, 50Hz
  • Temperature Measurement：Range:Room Temperature~400oc
  • Repeatability：=<8oc
  • Reproducibility：=<17oc
  • Accuracy：0.1oc
  • Igniting Mode：Electric Ignition,

Base Info

  • Model NO.：SY-3536A
  • Transport Package：Carton Case
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description


Sy-3536A Automatic Cleveland Open Cup Flash Point Tester

Sy-3536A Automatic Cleveland Open Cup Flash Point Tester

Sy-3536A Automatic Cleveland Open Cup Flash Point Tester

Sy-3536A Automatic Cleveland Open Cup Flash Point Tester


I. Main technical features
1. This instrument adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters.It has menu prompt and input guide.
2. It adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of English mis-operation prompt,test date,test time and other parameters.
3. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
4. Differential coefficient detection.Automatically correct the system deviation.
5. Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.
6. Beautiful design,safe and convenient to operate.

II. Main technical specifications 1. Power supplyAC220(-10%~+5%)V, 50Hz2. Temperature measurement Range:room temperature~400ºC
Repeatability:≤8ºC                                              Reproducibility:≤17ºC
Accuracy:0.1ºC3. Heating rateCorrespond with GB/T3536 and ASTM D924. Ignition modeElectric ignition. Gas flame diameter is 3.2mm~4.8mm5. Ambient temperature(10~40)ºC6. Relative humidity≤80%7. Maximum power consumption400W8. Dimension410mm×360mm×310mm
1. Power supply:AC220(-10%~+5%)V, 50Hz
2. Temperature measurement: Range:room temperature~400ºC
                                              Repeatability:≤8ºC
                                              Reproducibility:≤17ºC
                                               Accuracy:0.1ºC
3. Heating rate:Correspond with GB/T3536 and ASTM D92
4. Ignition mode:Electric ignition. Gas flame diameter is 3.2mm~4.8mm
5. Ambient temperature:(10~40)ºC
6. Relative humidity:≤80%
7. Maximum power consumption:400W
8. Dimension:410mm×360mm×310mm
