• Model NO.：GD-0308
• Volume of Water Bath：10L
• Net Weight：20kg
• Transport Package：Well-Packed Standard Export Wooden Case Per Set
• Specification：570*400*500mm
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：50piece,Month

Basic Info.

Model NO. GD-0308 Volume of Water Bath 10L Net Weight 20kg Transport Package Well-Packed Standard Export Wooden Case Per Set Specification 570*400*500mm Trademark GOLD Origin Chongqing HS Code 9031809090 Production Capacity 50piece/Month

Product Description

Summary:

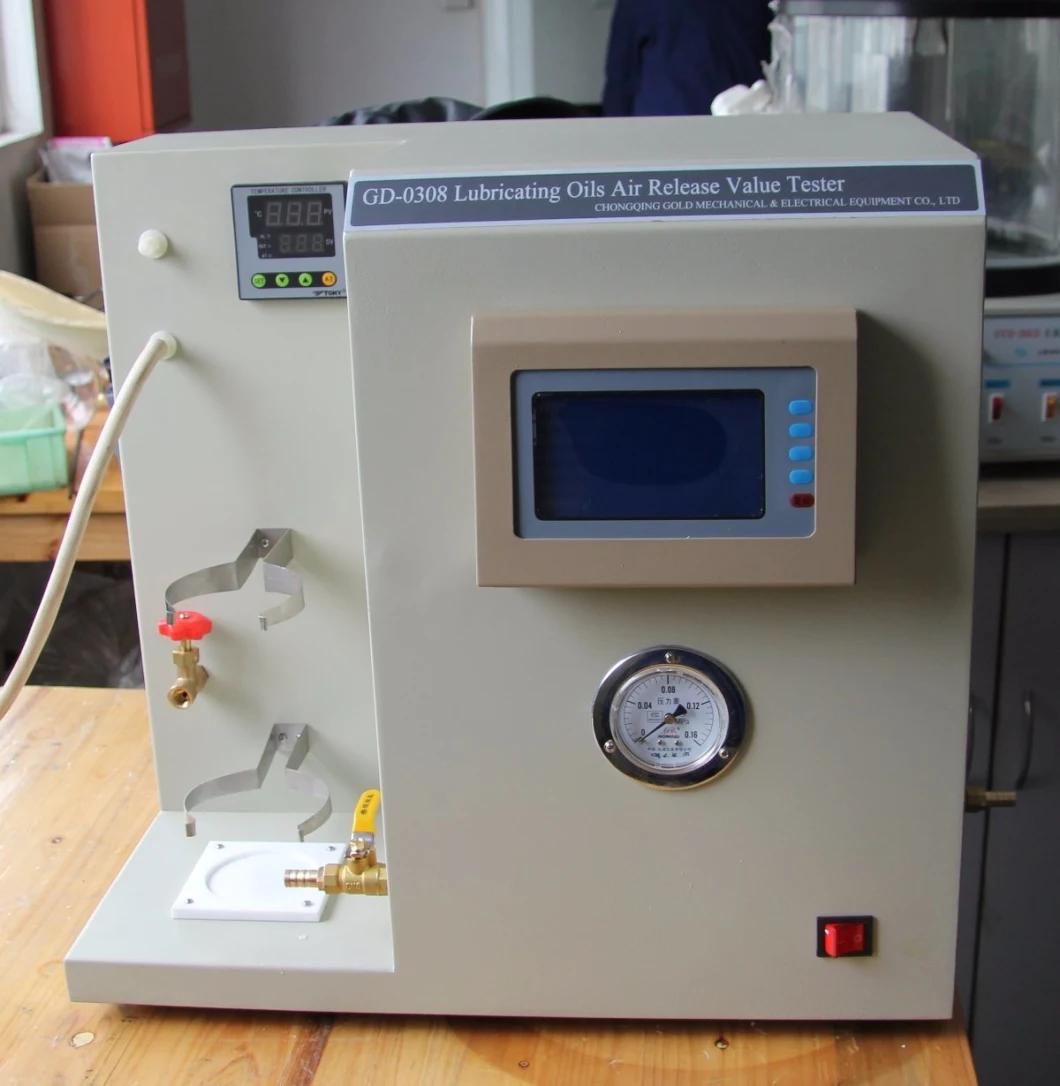

This instrument is designed and made as per industrial standard of People's Republic of China SH/T0308 Standard Test Method for Air Release Properties of Lubricating Oils. It is suitable to determine the air release value of hydraulic oil, steam turbine oil and other petroleum products in the industries of chemicals, electricity, petroleum,etc.

I. Main Technical Features:

The instrument adopts advanced technologies such as single chip machine, LCD graphic display and light-touch key. It has the functions such as graphics and parameters rolling display, man-machine dialogue of parameters input and revise and prompt type input of relevant parameters. It adopts high accuracy sensor to transmit the analog signal to digital signal via A/D and process it by computer. The executive component adopts SSR technology. It can realize the high accuracy control of water bath temperature and vapour pressure temperature.

II. Main Technical Specifications:


Temperature range of water bath	Room temperature~99.9ºC
Temperature range of air bath	Room temperature~90ºC
Temperature control accuracy of water bath	±0.5ºC
Temperature control accuracy of air bath	±5ºC
Power supply	AC220V±10%  50Hz
Maximum power consumption	1000W
Volume of water bath	10L
Net weight	20kg
