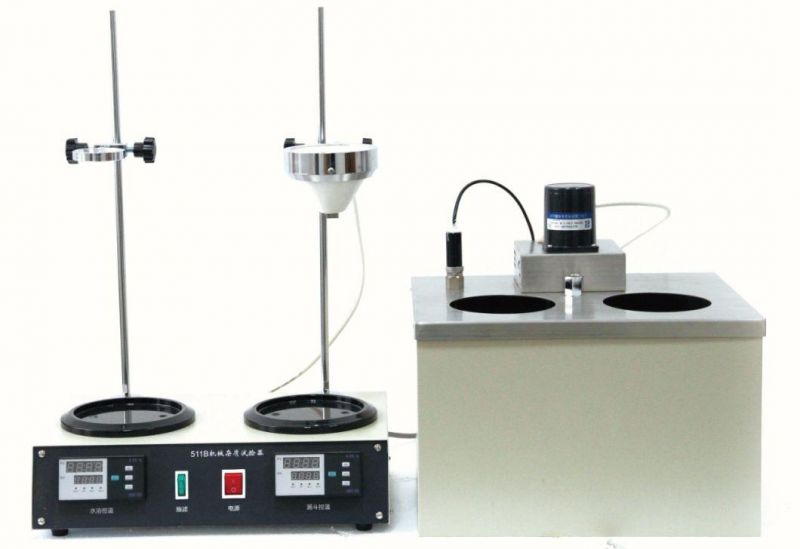

• Model NO.：GD-511B
• Operation：Simple
• Maximum Power Consumption：1200W
• Funnel Temperature Display：LED
• Warranty：1 Year
• Transport Package：One Full Set in One Wooden Box with Foam to Protec
• Specification：390 mm*260 mm* 590 mm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9014209090
• Production Capacity：100 Set,Sets Per Month

1Power supplyAC 220V±10%, 50 Hz2Heating power for water bath1000 W3Temperature control range for water bathRoom temperature~90 ºC, adjustable4Bath temperature displayDigitally displayed by LED5Temperature control accuracy for water bath±1 ºC6Temperature control range for funnelRoom temperature~90 ºC, adjustable7Funnel temperature displayDigitally displayed by LED8Temperature control accuracy for funnel±2 ºC9SizeControl case: 390 mm× 260 mm× 590 mmWater bath: 390 mm× 290 mm× 370 mm10Ambient temperature≤35 ºC11Relative humidity≤85%12Maximum power consumption1200 W




III. Accessories


No.	Product name	Unit	Quantity
1	Water bath(including rack of measuring cup)	Set	1
2	Controlling box	Set	1
3	Temperature controlling funnel	Set	1
4	Temperature sensor	PC	1
5	Filter flask(1000ml,including 16#white plug)	Set	2
6	Glass funnel(Inner Dia.90)	PC	2
7	Support lever and locking piece	Pair	2
8	Funnel holder	PC	1
9	Mercury thermometer 0°C~100°C/0.5°C	PC	1
10	Measuring cup(1000ml)	PC	2
11	Power supply wire	Root	1
12	Silicon plug(1#)	PC	2
13	Retainer ring of thermometer(1#)	PC	4
14	Fuse 10A(Inner Dia.5×20)	PC	2
15	Rubber hose(Outer dia.12)	m	1.5
