• Model NO.：GD-17040
• OEM Supply：Yes
• Other Functions：RS232 Port, with Built-in Printer
• Gross Weight：28kg
• Warranty Period：1 Year
• Transport Package：Venner Case
• Specification：refer to ASTM D4294
• Trademark：GOLD
• Origin：Made in China
• HS Code：9014209090
• Production Capacity：10 Set,Sets Per Month

Basic Info.

Model NO. GD-17040 OEM Supply Yes Other Functions RS232 Port, with Built-in Printer Gross Weight 28kg Warranty Period 1 Year Transport Package Venner Case Specification refer to ASTM D4294 Trademark GOLD Origin Made in China HS Code 9014209090 Production Capacity 10 Set/Sets Per Month

Product Description

GD-17040 XRF Sulfur Analyzer for Sulfur in Jet Fuel by ASTM D4294 Energy Dispersive X-ray Fluorescence Spectrometry


I. Application of XRF Sulfur Analyzer

1. The ASTM D4294 test method is the most convenient method for total sulphur analysis in petroleum products. It provides the simplest, most accurate and most economic analytical methods for the determination of the sulfur in fuels.
2. Sulfur testing for crude oil, fuels, petroleum refined products, natural gas, and petrochemicals.
3. Sulfur in crude oil, gasoline, diesel, bunker fuel, fuel oil, natural gas, petrochemicals and more.
4. In 2020, the IMO (International Maritime Organisation) will enforce a new global sulfur limit of 0.5% for bunker fuel oil. As ship owners and port control authorities, you can make sure you meet the current and new global sulfur limits with our XRF Sulfur Analyzer.


II. Key Features of ASTM D4294 Sulfur in Oil Analyzer

(1) With electrical, mechanical and microprocessor integration design, so it is compact and beautiful;
(2) It can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.
(3) Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H).
(4) Large LCD for display; Man-machine conversation system; Sound alarm for operation mistake;
(5) It has self-diagnostic function, so it can determine its working state and electric parameters by making counting measurement and energy spectrum measurement using reference samples.
(6) Equipped with a RS232 serial port, it can connect with any computer or web system.
(7) It takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunctional pressure shaping device, so it is rapid and convenient. There is a hole on the sample cell cover and you can record sample serial number, S% (m/m), and date on the sample cell cover.
(8) The sample holder is installed on a slide rail, so it can move out and move in automatically. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to detection system.
(9) It can save large quantity of test data. You can browse test data and calibration curves at any time.
(10) It uses a thermal printer, so it is easy to replace printing paper.
(11) Tightly protection measures to avoid oil leakage. The sample cell is placed on the leakage protection device. The sample cell can enter into the detection system together with the leakage protection device only during sample analysis procedures. If the instrument is not at sample analysis state, the leakage protection device will move out, so this can avoid any contamination to the detection system.
(12) Its safe X-ray protection measures can keep people from injury of X-ray radiation.


III. Main Parameters:


Measuring range	17 ppm to 5%
Repeatability (r)	<0.02894 (X+0.1691)
Reproducibility (R)	<0.1215(X+0.5555)
Detection limit	7 ppm
Oil sample quantity	2.5 ml (it is equal to sample depth of 4.5 mm)
Measurement time	it can preset 60, 120, 240, 300, and 600 s at random
Working condition	a). Ambient temperature: 5~40ºC;    b).Relative humidity: ≤85% (30 ºC)
Power supply	AC 220V±20V, 50 Hz; Rated power: 30 W
Dimension and weight	468mm×368mm×136mm; 13 kg

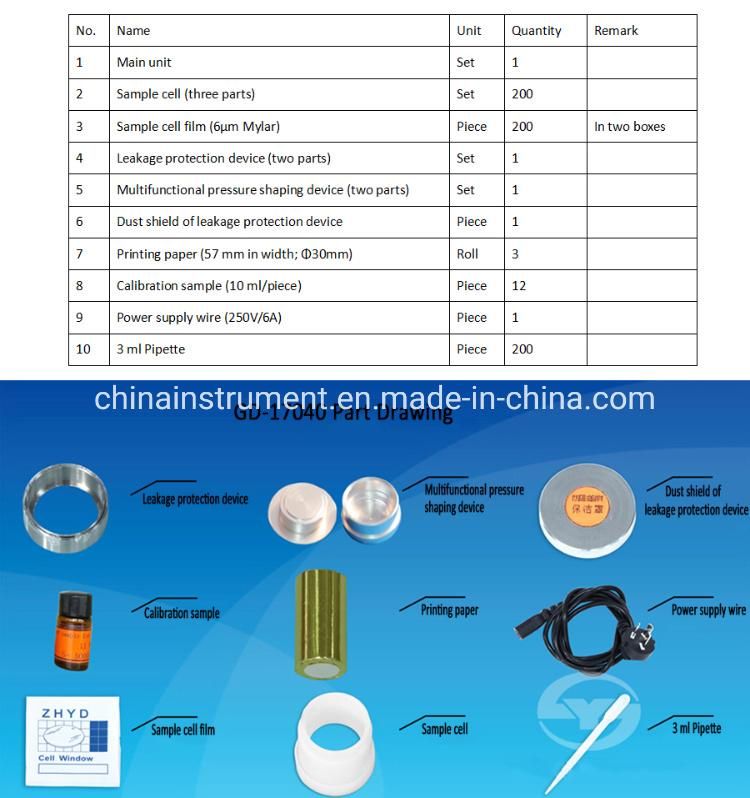

IV. Full Set of ASTM D4294 XRF Sulfur in Fuel Analyzer:
