• Model NO.：GD-4110-I
• Heating Power：700W Tube Heater
• Environmental Temperature：0~35ºC,Relative Humidity≤85%
• Warranty：One Year
• Product Name：Gd-4110-I ASTM D2265 Dropping Point Tester
• Transport Package：Wooden Case
• Specification：Dropping Point Tester
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9013809000
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. GD-4110-I Heating Power 700W Tube Heater Environmental Temperature 0~35ºC,Relative Humidity≤85% Warranty One Year Product Name Gd-4110-I ASTM D2265 Dropping Point Tester Transport Package Wooden Case Specification Dropping Point Tester Trademark GOLD Origin Chongqing HS Code 9013809000 Production Capacity 100 Sets / Month

Product Description

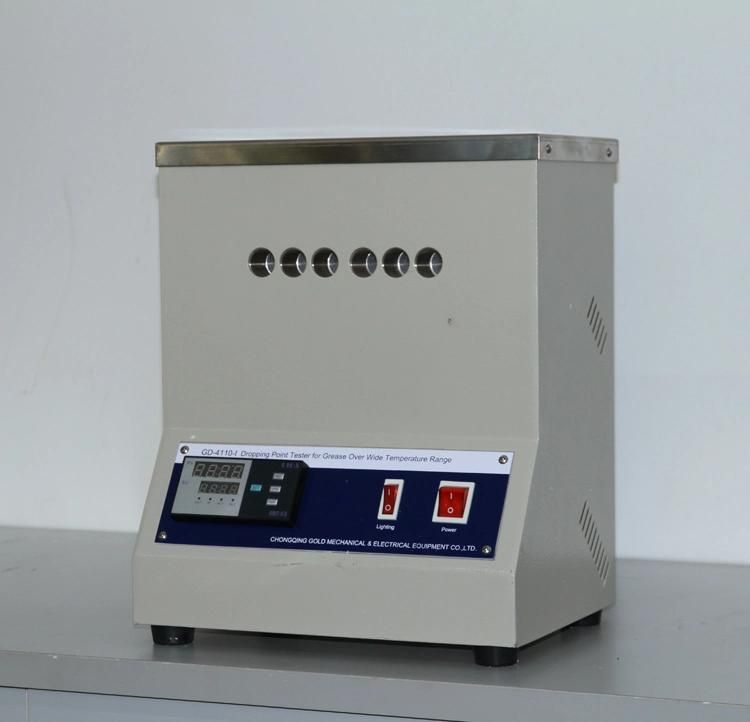

GD-4110-I ASTM D2265 Dropping Point Tester

Introduction:

GD-4110-I ASTM D2265 Dropping Point Device, in terms of GB/T3498-83(91) "test method for dropping point of lubricating grease over wide temperature range", is used to test the dropping point of lubricating grease over wide temperature range that means a numerical value assigned to a grease composition representing the corrected temperature at which the first drop of material falls from the test cup and teaches the bottom of the test tube.
Dropping Point Tester is also suitable to specification ASTMD2265-94a "test method for dropping point of lubricating grease over wide temperature range".



Working condition:
1 Environmental temperature 0~35ºC,relative humidity≤85%.
2 The apparatus should be put on the horizontal worktable with sufficient illumination
3 Rating voltage: AC220V±10%,frequency:50Hz±1.
4 Grounding condition must be good.

Main technologic standards:
Aluminum block oven: Material Alloy aluminum
Heating power: 700W tube heater
Grease cup: made of chrome plated brass, size according with GB/T3498-83
Test tube: thin wall glass tube, size according with GB/T3498-83
Cup support: made of heat-resistant and hard glass
Thermometer: according with GB/T514-83,scale: -5~400ºC,minimum scale mark 1ºC
