• Model NO.：GD-0613A
• Power Consumption：4500W
• Communication Port：RS232, Printer Port
• Warranty：1 Year
• Transport Package：Standard Wooden Case for Gd-0613A
• Specification：500mm*400mm*570mm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9014800090
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. GD-0613A Power Consumption 4500W Communication Port RS232, Printer Port Warranty 1 Year Transport Package Standard Wooden Case for Gd-0613A Specification 500mm*400mm*570mm Trademark GOLD Origin Chongqing, China (Mainland) HS Code 9014800090 Production Capacity 100 Set/Sets Per Month

Product Description

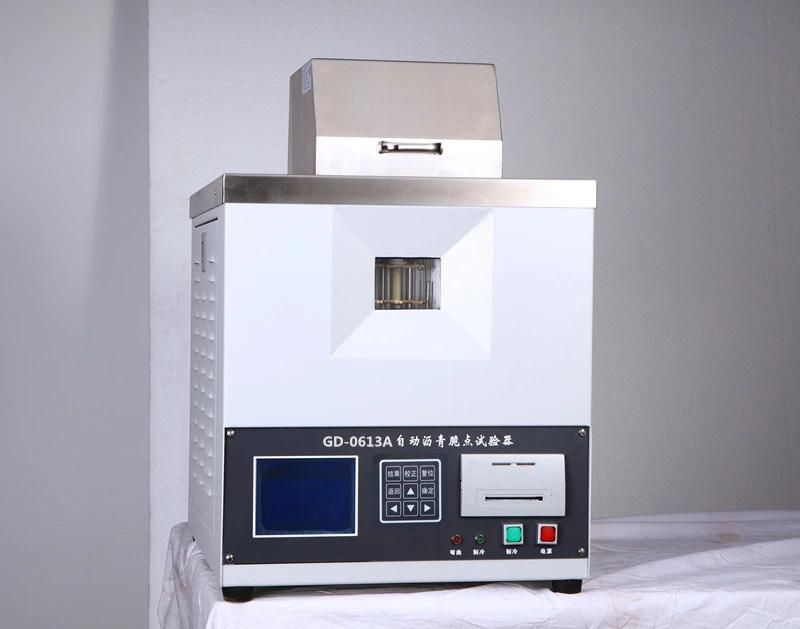

Fraass Method Automatic Breaking Point Tester for Bitumen

Introduction:
Fraass Method automatic Breaking Point Tester is used to determine the temperature which a bitumen tends to break rather to flow when cooled and stressed as per standards GB/T 4510 and JTG E20-2011. It can do three tests at the same time in the same environment and calculate the average value.The cooling rate is controlled by computer.



I. Main technical features:
Fraass Method automatic Breaking Point Tester is controlled by micro computer. The cooling rate is controlled automatically. It automatically timing to bend samples.The test data is shown on the colored LCD and outputted by built-in printer.


II. Main technical specifications:

1. Power supply:      AC(220±10%)V,50Hz
2. Refrigeration mode:     Low temperature circulatory bath
3. Cooling rate:    (1±0.5)ºC/min
4. Temperature measuring range:     -30ºC~25ºC
5. Temperature measuring error:      ±0.5ºC
6. Steel slice:      41mm×20mm×0.15mm
7. Test samples:    It can determine 3 samples at the same time.
8. Ambient temperature:     Room temp. ~+30ºC
9. Relative humidity:          ≤85%
10.Power consumption:     450W(breaking point tester)+ 1600W(low temperature circulatory bath)
11.Overall dimension:        500mm×400mm×570mm(breaking point tester)

Note: We can customize the breaking point tester with measuring range:-40ºC~25ºC
