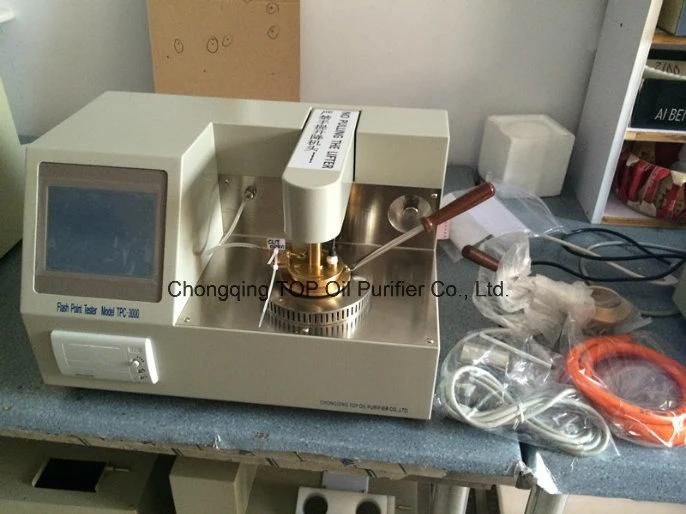

Auto Pensky Martens Closed Cup Flash Point Test Equipment (TPC-3000)
Chongqing TOP Oil Purifier Co., Ltd.- Model:Tpc-3000
- Features:electronic Ignition, No Need Gas
- Test Standard:ASTM D93, Igb261-2008, Sh,T0315 etc
- Display:Color Touch LCD Display Screen
- Test Method:Thermocouple Differential Detection
- Transport Package:Export Standard Wooden Case
Base Info
- Model NO.:TPC-3000
- Specification:CE, SGS, BV
- Trademark:TP TESTER
- Origin:Chongqing, China
- HS Code:90278099
- Production Capacity:1000 Sets,Month
Description
Basic Info.
Model NO. TPC-3000 Specification CE, SGS, BV Trademark TP TESTER Origin Chongqing, China HS Code 90278099 Production Capacity 1000 Sets/MonthProduct Description
Product DescriptionEletronic ignition auto pensky martens closed cup flash point tester
(TPC-3000)
Introduction
TPC-3000 fully automatic flash point tester is an ideal flash point analyzer(closed-up) for petroleum, chemical, power station, environmental, railway, scientific research etc.
It complies to ASTM D93, IGB261-2008, SH/T0315 etc.
It adopts microcomputer technology and realizes full automation.
Advantages: electronic ignition without air source, self fault checking, strong repeatability, simple operation.
Features
1. Color touch LCD screen display ,man-machine conversation interface with menu director
2. Adopts high speed signal processor: precision simulation/digital converter circuit
3. Adopts PID control algorithm: automatically adjust the heating curve according to standards
4. Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
5. Aspiration,stirring,ignition,testing,alerting,cooling,printing are fully automatic.
6. Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
7. Security airless source of platinum alloy to ignite:stable,reliable and high precision.
8. Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
9. Equipped with parameters reminders like: test date, test time
10. Data storage function: store 300 groups testing data.
Display : | Color touch LCD display screen |
Test method: | Thermocouple differential detection |
Test range: | Room temperature-350ºC |
Resolution: | 0.1ºC |
Repeatability: | flash point<104ºC,allowed ±1ºC; flash point≥104ºC allowed ±2ºC flash point≤110ºC,allowed ±1ºC; flash point>110ºC allowed ±2ºC |
Printer: | High speed thermal printer,paper size:55mm |
Temperature Detection: | Imported platinum resistance (Pt100Ω) |
Ignition mode: | Automatically electronic ignition with airs source |
Self-checking : | automatic fault checking |
Power consumption: | <550w |
Temperature: | Atmospheric temperature: 10ºC-45ºC,humidity: 30-80% |
Power: | AC220V±10% |
Dimension: | 397*305*240 mm |
Weight: | About 15 kg |
