Automated Penetration Tester for Filter Material and Respirator
Scince Purge Technology (Qingdao) Co., Ltd.- Aerosl：Nacl, Paraffin Oil
- Air Flow：32~95L,Min
- Test Area：100cm2
- Efficiency Range：20~99.97%
- Resistance Range：0~500PA
- Dimension：730*730*1480mm
Base Info
- Model NO.：SC-FT-1406D
- Transport Package：Wooden Package
- Trademark：Scince
- Origin：Suzhou
- Production Capacity：50sets,Month
Description
Technical Data SheetItem Parameter Aerosol NaCl, Paraffin oil Air flow 32~95L/min Test area 100cm2 Efficiency range 20%~99.97% Resistance range 0~125Pa and 0~500Pa are optional Flow rate accuracy ±3% Resistance accuracy 1Pa Power supply AC220V, 50 or 60 Hz Dimension 730mm*730mm*1480mm

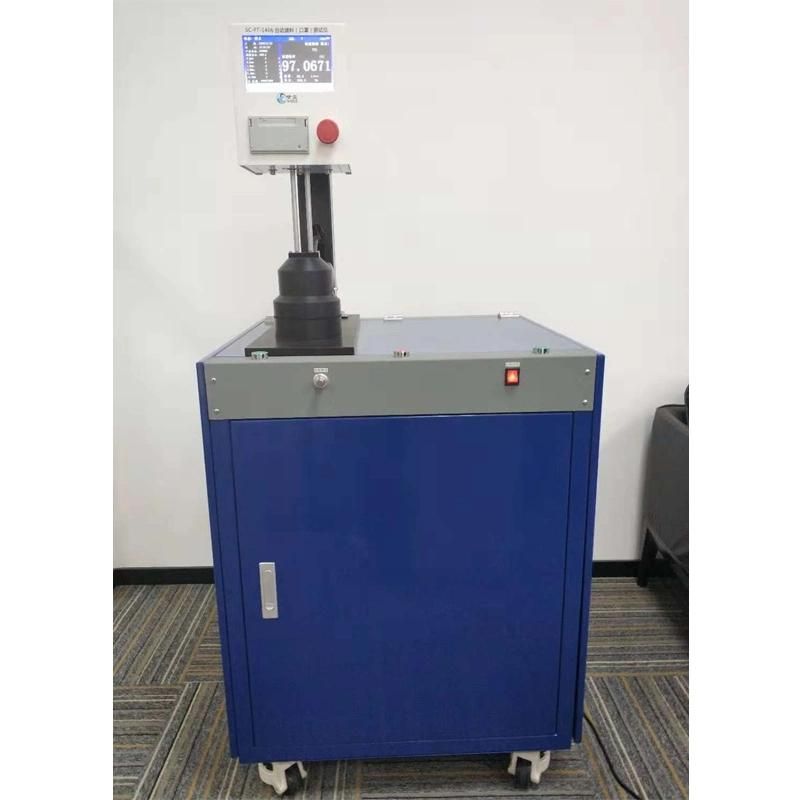

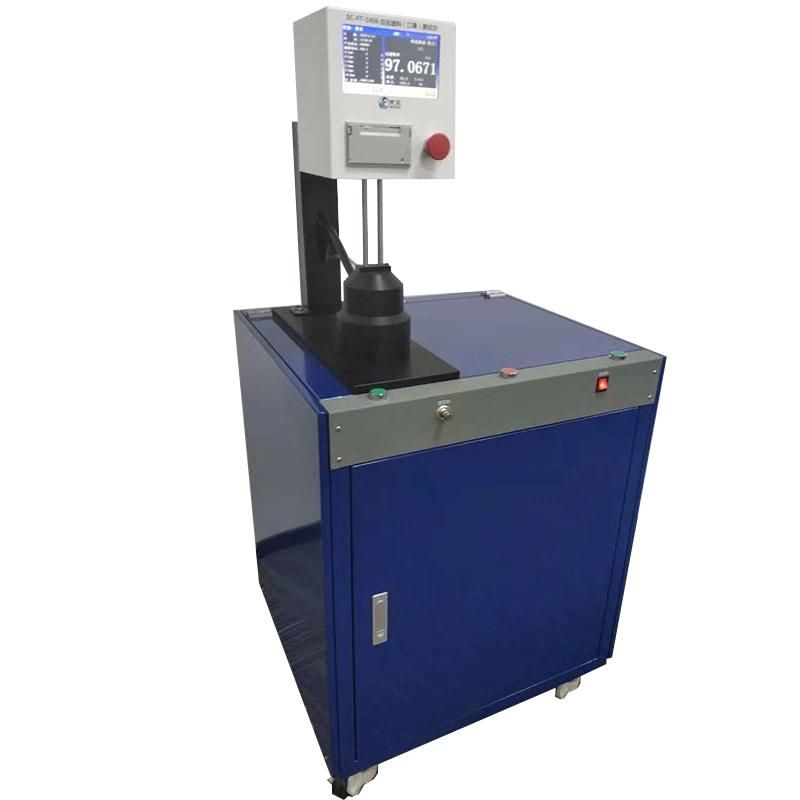

Product Pictures
Features
1.Three modes can be used to test filter efficiency.
Mode 1: 0.3μm filter efficiency.
Mode 2: It can provide the filter efficiency of different particle size 0.3, 0.5, 1, 3μm at the same time.
Mode 3: It can provide the filter efficiency of PM1.0 and PM2.5 at the same time.
2.Adjustment of different test flow can be easily achieved through flow control valve. Common flow rates are 32L/min, 55L/min, 60L/min, 85L/min, 95L/min and so on.
3.The resistance test is completed and displayed at the same time as the filter efficiency test.
4.A test calibration method (multiple point-to-point calibrations) is provided, with a calibration filter attached to the instrument for regular calibration of the 0.3μm filter efficiency test result.

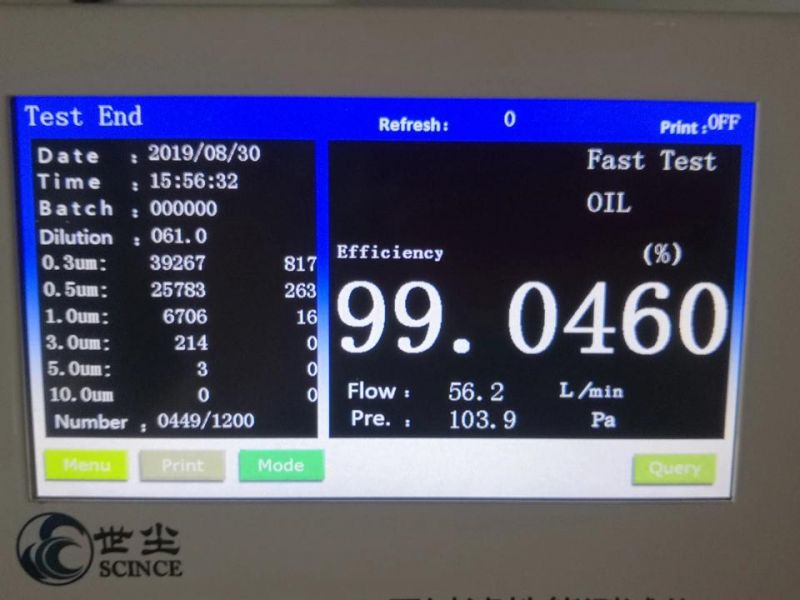

5.Comprehensive test data information. In order to facilitate user's analysis of the test situation, the instrument's test results contain test data and test conditions. Test results can be printed and saved directly.
6.Optional data acquisition software, connected to the computer to achieve A4 report printing or product data label printing. It is also convenient for remote calibration.
Product Pictures
Features
1.Three modes can be used to test filter efficiency.
Mode 1: 0.3μm filter efficiency.
Mode 2: It can provide the filter efficiency of different particle size 0.3, 0.5, 1, 3μm at the same time.
Mode 3: It can provide the filter efficiency of PM1.0 and PM2.5 at the same time.
2.Adjustment of different test flow can be easily achieved through flow control valve. Common flow rates are 32L/min, 55L/min, 60L/min, 85L/min, 95L/min and so on.
3.The resistance test is completed and displayed at the same time as the filter efficiency test.
4.A test calibration method (multiple point-to-point calibrations) is provided, with a calibration filter attached to the instrument for regular calibration of the 0.3μm filter efficiency test result.
5.Comprehensive test data information. In order to facilitate user's analysis of the test situation, the instrument's test results contain test data and test conditions. Test results can be printed and saved directly.
6.Optional data acquisition software, connected to the computer to achieve A4 report printing or product data label printing. It is also convenient for remote calibration.
