• Measure Range：0-10,100,1000ppm, 1% O2
• Sample Gas Flow：150~300ml,Min
• Accuracy：0.5% F.S.
• Response Time：T90<60s Under 25ºC
• Stability：<+,-1%.Fs (168h)
• Signal Output：4~20mA
• Sensor Life：20000 Hours at 25c and 1 ATM
• Weight：4kg
• Transport Package：Carton
• Specification：small
• Trademark：Sunny Young
• Origin：China
• HS Code：9026809000
• Production Capacity：100000

Basic Info.

Measure Range 0-10/100/1000ppm, 1% O2 Sample Gas Flow 150~300ml/Min Accuracy 0.5% F.S. Response Time T90<60s Under 25ºC Stability <+/-1%.Fs (168h) Signal Output 4~20mA Sensor Life 20000 Hours at 25c and 1 ATM Weight 4kg Transport Package Carton Specification small Trademark Sunny Young Origin China HS Code 9026809000 Production Capacity 100000

Product Description

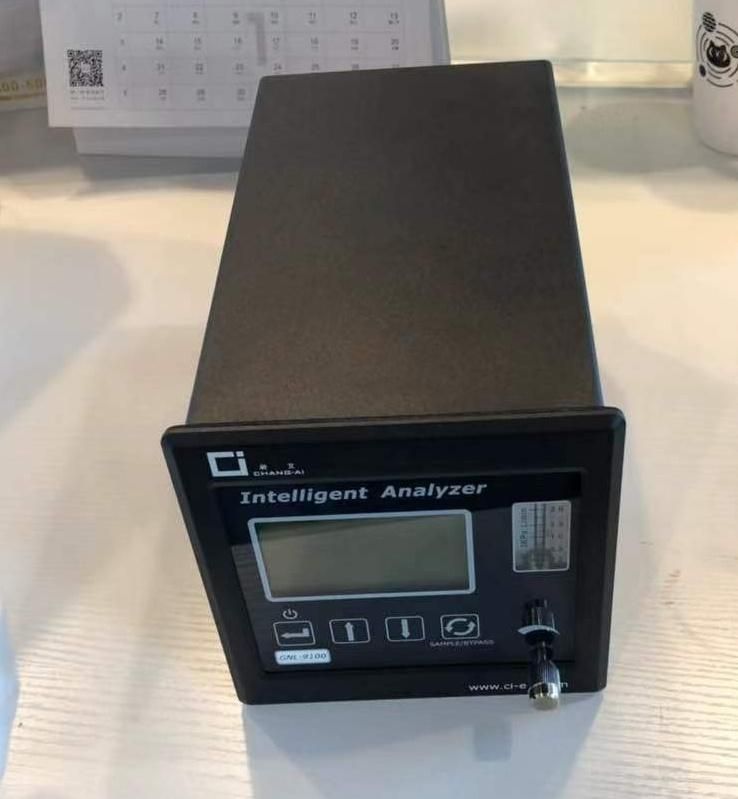

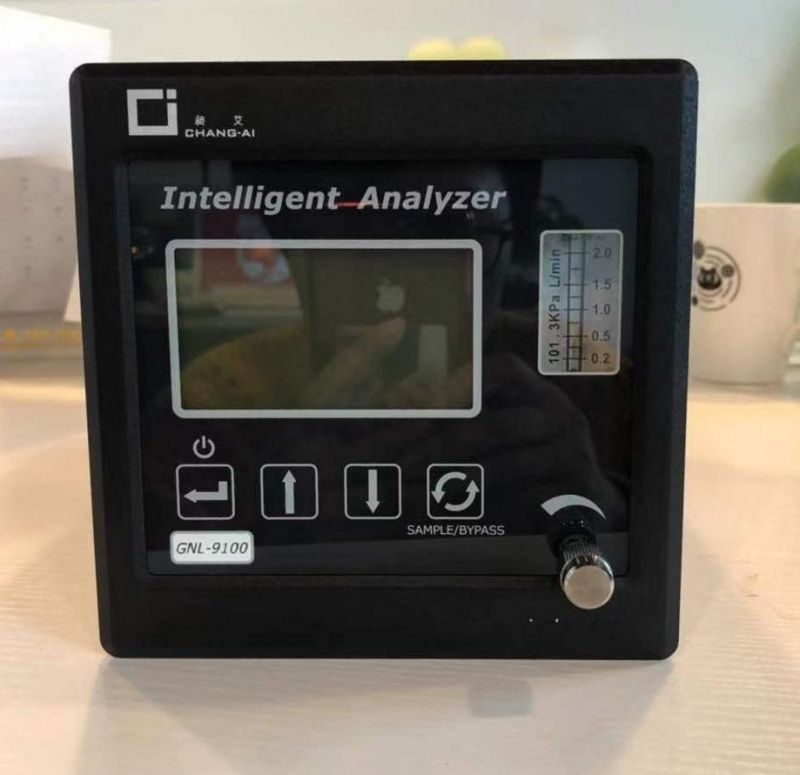

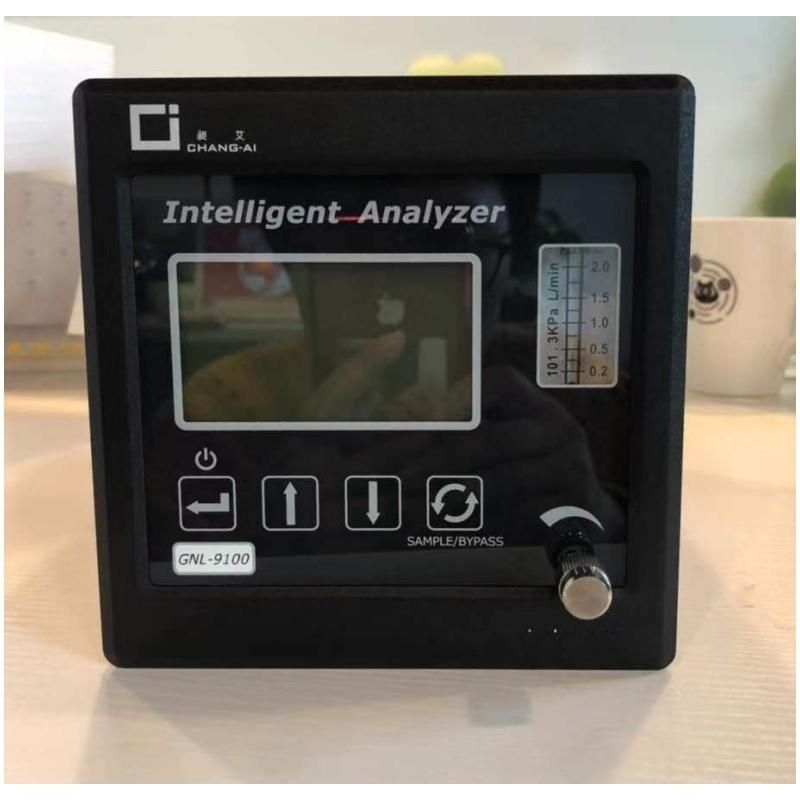

GNL-9100 Process Trace Oxygen Analyzer O2 purity measurement range 0-10/100/1000ppm, 1%Introduction

CI-PC96 trace O2 analyzer is with electrochemical principle and capable of O2 purity measurement range 0-10/100/1000ppm, 1%.
(model NO. : GNL-9100)

Features

1. 1. 240×128 LCD display oxygen concentration and other settings;
   2. Isolated 4-20mA signal output, with 0-100mV, 0-1V and 0-10V as options;
   3. Easy to replace sensor;
   4. Standard RS232 two-way communication port;
   5. Two way SPST alarms;
   6. Over pressure protection function and over purity range protection function;
   7. Automatic data storage in a certain interval time, and browsing data at any time

Technical Specifications
Model:                   CI-PC96
Measure Range:            0-10/100/1000ppm, 1% O₂
Principle:                 Electrochemical
Measure Mode:            Online
Install:                   Dial mounted
Application:               Non dangerous general applications
Sensitivity:                0.5% F.S.
Measure Accuracy:          ≤±5% @ 0-10ppm ;  ≤±3% @ 0-100ppm;  ≤±2% @0-1000ppm
Stability:                  ≤±2.5% @ 0-10ppm;  ≤±1.5% @ 0-100ppm;  ≤±1% @ 0-1000ppm
Response Time:            T90<60s under 25ºC
Sample Gas Temperature:    0-45ºC
Sample Gas Flow:          1.2L/min
Sample Gas Pressure:       35-210KPa
Power Supply:             AC85~265, consumption lower than 20VA
Signal Output:             4-20mA DC isolated, with 0-100mV, 0-1V and 0-10V to switch
Alarms:                  2 way SPST alarm
Alarm Contact Capacity:     0.2A under AC240V
Display Resolution:         0.01%@%;  1ppm@100-10000ppm;  0.1ppm@10-100ppm;  0.01ppm@0-10ppm
Communication:            RS232 standard (RS485 optional)
Analyzer Size:             144 (W)×144 (H)×190 (D) mm
Applications
Air separation, Gases production, Protection gas for semi-conductors industry, Wave soldering & reflow soldering, Food production, Petro-chemical, and other oxygen purity detection in inert and hydrocarbon gas mixtures.










Order knowledge of nitrogen analyzer:
Measure range:
Tested gas pressure;
Gas composition and impurity:
