• Model NO.：TPO-3000
• Specification：CE, SGS, BV
• Trademark：TP TESTER
• Origin：Chongqing, China
• HS Code：90278099
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. TPO-3000 Specification CE, SGS, BV Trademark TP TESTER Origin Chongqing, China HS Code 90278099 Production Capacity 1000 Sets/Month

Product Description

TOP machinery fully automatic cleveland open cup flash point tester

 (TPO-3000)

Introduction:

TPO-3000 fully automatic flash point analyzer (open-up) is applied in area of petroleum, chemical, power station, environmental, railway, scientific research etc. It is designed and made as per ASTM D92, IS02592,GB267,GB3536 etc. It adopts microcomputer technology to realize completely automation, with color touch screen operation system and automatic high speed thermal printer. It has unction of self-checking.

No need of gas source; electronic ignition; imported sensor; automatic correction of air pressure; alerting if over value.

(Flash Point is the lowest temperature at which a liquid can form an ignitable mixture in air near the surface of the liquid. The lower the flash point, the easier it is ignited. Nowadays, flash point is used to say non-volatile or flammable substances whether exit highly volatile or flammable substances, and has been one of the most important parameters for petroleum products transportation, storage, operations, safety management…)

Main Features:

1.7-inch color touch screen and man-machine conversation LCD display in English.
2.Adopts high speed signal processor: precision simulation/digital converter circuit.
3.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure;self-adjust the flash point.
4.Data storage function: store 300 groups testing data. It is timely to check historical records
5.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
6.Stirring,ignition,testing,alerting,cooling,printing are fully automatic.
7.Adaptive PID control algorithm: automatically adjust the heating curve according to standards
8.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
9.Security airless source of platinum alloy to ignite:stable,reliable and high precision

Display	7-inch color touch LCD display screen
Test method:	Thermocouple differential detection
Test range:	Room temperature-400ºC
Repeatability:	±2ºC
Printer:	High speed thermal printer,paper size:44mm
Ignition mode:	Automatically electronic ignition
Temperature Detection	Imported precision platinum resistance
Self-checking :	Printer, igniter, electromagnetic valve, the detection arm movements, ignition rod stroke ect.
Power consumption:	<700w
Temperature:	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power:	AC220V±10% Customizable
Dimension	400×300×240mm
Weight:	20 kg

 flash point tester, flash point testing equipment, automatic flash point tester, oil flash point tester, flash point analyzer, open cup flash point tester, flash point tester, flash point lubricating oil, flash point instrument, flash point meter, flash point tester for oil, testing machine, flash point analyzing, coc flash point tester, flash point measuring equipment, oil flash point test, lubricating oil flash point, closed cup flash point tester, laboratory equipment, flash point test equipment, flash point & fire point apparatus, flash point apparatus, flash point analyzing, lube oil flash point, engine oil flash point, automatic closed cup flash point tester, flash point measuring instrument, flash point and fire point tester, automatic flash point tester device,oil flash point ignition,oil open cup flash point meters, pensky-martens closed cup flash point tester, astm d93 lubricating oil closed flash point tester

 Our Company

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

Petroleum Products General Testers

1. Fully Automatic Karl Fischer Water Content Tester TP-2100
2. Digital Karl Fischer Water Content Tester TP-6A

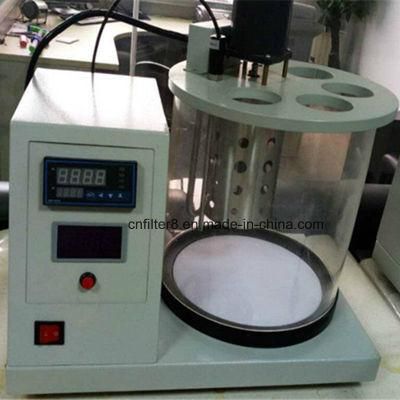

3. Kinematic Viscosity Tester VST-2000
4. Kinematic Viscosity Tester TPV-8
5. Kinematic Viscosity Tester VST-3000
6. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7. Fully Automatic Surface/Interface Tension Tester IT-800
8. Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9. Fully Automatic Open Cup Flash Point Tester TPO-3000

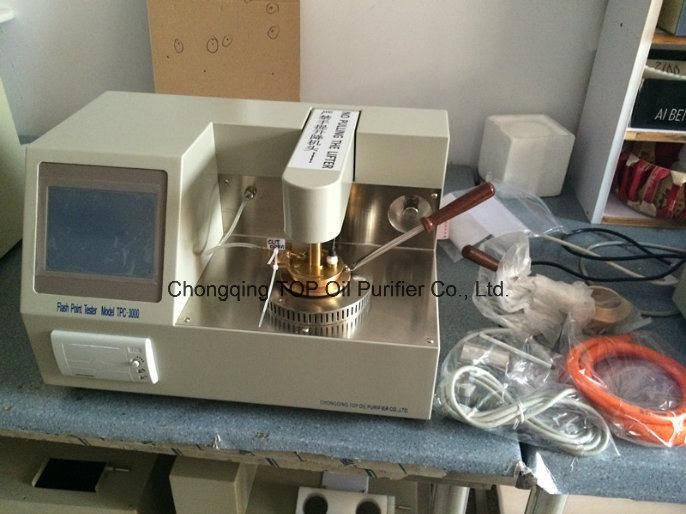

10. Fully Automatic Closed Cup Flash Point Tester TPC-3000
11. Digital Open Cup Flash Point Tester TPO-100
12. Digital Closed Cup Flash Point Tester TPC-100
13. Cloud Point & Pour Point Tester PT-2000
14. Multi-functional Vibration Tester VBT-2000
15. Automatic Potentiometric Titrator TP668

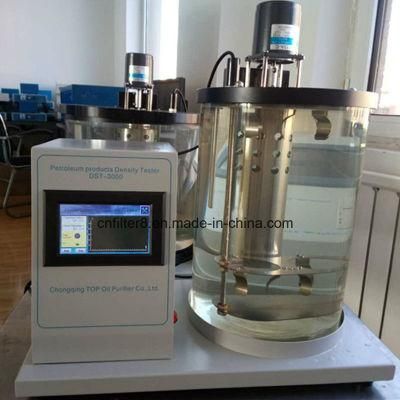

16. Petroleum Products Density Tester DST-3000
