• Model NO.：TP-DS800

Basic Info.

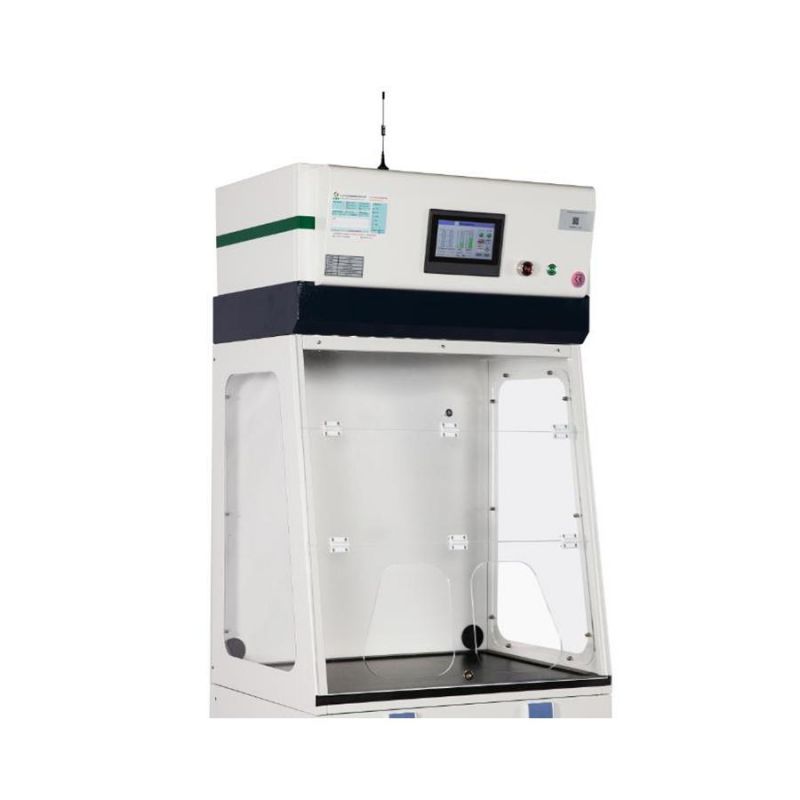

Model NO. TP-DS800

Product Description



product description:
The series of ductless clean air fume hoods comply with NFX 15 211: 2009 standard (certified by ANSI Z 9.5-201), ASHRAE 110: 1995 standard and Chinese national standard JG/T385: 2012 standard, and have passed ISO9001 certification. The product is specially designed to protect the safety of laboratory personnel in the experimental operation. It can prevent the operator from inhaling some toxic, harmful, pathogenic or toxic chemical substances in the experiment, and efficiently purify the fume hood and the laboratory air. Provide safety protection for laboratory personnel.
Product Features:
1,Metal parts: The main material is ≥1.2mm galvanized steel sheet, epoxy resin electrostatic spraying, covered with a durable anti-chemical lead-free coating, maintaining high finish and minimizing the impact of corrosion and moisture.
2,Front panel and side panel: The main material is ≥6mm acrylic sheet, with excellent weather resistance, excellent chemical resistance, not easy to age, colorless and transparent, transparent, visually comfortable, beautiful and generous.
*3,Seven-inch LCD touch screen display, high-definition display resolution 1024*600, perfect vision system.
*4,Real-time temperature and humidity environment monitoring system, display temperature and humidity, set alarm parameters to ensure product safety.
*5,Fan monitoring: Fan system failure alarm, online adjustable fan speed to ensure the air volume required for different chemical operations.
*6,Filter saturation alarm system: The product is equipped with double-layer filters and dual VOC probes. One probe monitors indoor air quality, one probe monitors the filter saturation status, and the filter sets the saturation alarm value. If the range is exceeded, it will alarm. The filter must be replaced if it exceeds the set value.
7,PSC fan imported from the United States, 24 volts, stable performance, ultra-quiet, no sparks and static electricity.
8,The high-efficiency filtration system selects the arrangement and distribution according to the particle size and follows the ASTM standard. It effectively targets acid gases and organic gases with strong adsorption capacity. It uses high-efficiency HEPA filters for particles and has a filtration efficiency of 99.995% for particles larger than 0.3um.
9,The LED lighting lamp has a power equivalent to 25W fluorescent lamp, does not produce heat, safety does not affect the temperature of the experimental environment, energy saving, environmental protection, and long life.
10,Epoxy resin countertops have excellent chemical stability, super corrosion resistance, good impact resistance, high temperature resistance, integrated core, long service life, no delamination, no expansion, no cracking.
*11,Scan the machine's code, through the WeChat client to view the equipment operating status in real time, and change the equipment operating data.

Advantages:
1,No need to install pipeline engineering, convenient installation, no exhaust gas, new environmental protection.
2,The top can be equipped with a filter module system according to the experimental needs to meet a variety of different experiments.
3,Advanced modular filtration technology can completely absorb harmful gases, particulate dust and other substances produced by filtration experiments.
4,No need to consume air-conditioning energy consumption, and save energy efficiently.


working principle:
1, Inlet
Air can be drawn directly into the fume hood from the laboratory to form negative pressure. The stable surface wind speed forms a natural barrier to isolate users and the chemicals they operate.
2,Comprehensive filtration system
Comprehensive filtration system The fan system sucks toxic and harmful gases upwards, filters them, and returns clean air to the room. The excellent control concentration of the cabinet can ensure that the chemical gas in the cabinet will not return to the room and cause pollution.

1. Clean laboratory air

Different filters are configured according to different operations to effectively filter toxic and harmful gases, purify laboratory air, remove chemical residual odors, and improve laboratory cleanliness.

1. Purify the surrounding air

The continuous filtration efficiency of the fume hood can help to purify the indoor air.




Model	image	parameter	Configuration	Optional
TP-DS800		Outside dimensions:800*620*1245mm Internal dimensions:781*574*934mm Molecular filter size:370*395*50mm Primary filter size:370*395*21mm Air handling capacity:230m3/h Average surface wind speed: 0.4-0.6m/s Voltage:110V-240V frequency:50-60HZ Maximum current:2A volume:40-52 dBA power:42W Operating hole category: trapezoid	Molecular filter/HEPA filter:4 group Primary filter: 2 pieces Fan: 1 Lighting: 1 set of LED lighting Display: Seven-inch LCD touch screen Control system: 1 set Filter saturation alarm system: 1 set Temperature and humidity alarm system: 1 set Power cord: 1	Anemometer Optional filter model: OG:Organic filter AG:Inorganic filter AM: Ammonia filter FO:Formaldehyde filter HEPA H14:HEPA filter PREFIL:Primary filter
