Analysis Instrument

Digital Touch Screen Differential Scanning Calorimeter (DSC)

Changsha Suny Electronic Technology Limited
  • Element:Thermal Analyzer
  • Display:Digital
  • Application:Chemical Industry
  • Frequency:50Hz
  • Performance:Automation
  • Function:Storage

Base Info

  • Model NO.:DSC100L
  • Weight:0-100Kg
  • Power Source:AC200V
  • Customized:Non-Customized
  • Product Description:Differential Scanning Calorimeter (DSC)
  • Measuring Range:0 ~ ±500MW
  • Temperature Range:-100°c~800°c Liquid Nitrogen Refrigeration
  • Transport Package:Standard Export Package
  • Trademark:Labkits
  • Origin:Hunan China
  • Production Capacity:500PCS,Month

Description

Basic Info.

Model NO. DSC100L Weight 0-100Kg Power Source AC200V Customized Non-Customized Product Description Differential Scanning Calorimeter (DSC) Measuring Range 0 ~ ±500MW Temperature Range -100°c~800°c Liquid Nitrogen Refrigeration Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

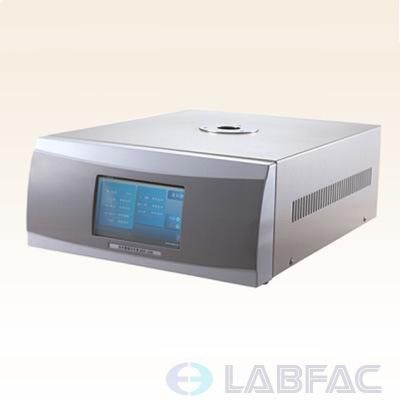

Item:  Digital Touch Screen Differential Scanning Calorimeter (DSC)
Model: DSC100L
Digital Touch Screen Differential Scanning Calorimeter (DSC)

Product introduction:
DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition temperature, melting point, cold crystallization, crystallization, phase transition, oxidation induction time (OIT).

Main features:
1. New designed oven structure ensures high resolution and good stability of base line;
2. Air flow meter may control the air flow rate accurately; the test data can be recorded into the database directly;
3. The instrument is bilateral control, may be controlled by both main frame and software. User-friendly interface, easy operation.

Technical parameters:
1. DSC range: 0 ~ ±500mW
2. Temperature range: -100°C~800°C Liquid nitrogen refrigeration

3. Heating rate: 1 ~ 80 °C / min
4. Temperature resolution: 0.1 °C
5. Temperature fluctuations: ±0.1°C
6. Temperature repeatability: ±0.1°C
7. DSC noise: 0.01μW
8. DSC resolution: 0.01μW
9. DSC accuracy: 0.1 u W
10. DSC sensitivity: 0.1 u W
11. Control Mode: Rising temperature, constant temperature, cooling temperature (full automatic programmed control)
12. Curve scanning: Rising scan, *cooling scan
13. Atmosphere control: Embedded digital flow meter & Software control
14. Display: 24 bit color  7 inches  LCD touch screen display

15. Data interface: standard USB connector
16. Parameter standard: equipped with standard material, with a key calibration function, the user may correct temperature and heat enthalpy
17. The warranty: Five years
18. Note: * for optional items, all technical indicators can be adjusted according to customers' demand
