Analysis Instrument

Intelligent Wet and Dry Laser Particle Size Analyzer

Changsha Suny Electronic Technology Limited
  • Type:Particle Size Analyzer
  • Product Description:Particle Size Analyzer
  • Temperature Range:10ºC-35ºC
  • Relative Humidity:≤85%
  • Accuracy Grade:1
  • Load Way:Electronic Load

Base Info

  • Model NO.:PSA2308A
  • Display:Digital
  • Control:Computer Control
  • Weight:0-100Kg
  • Power Source:AC220V
  • Transport Package:Standard Export Package
  • Trademark:Labkits
  • Origin:Hunan China
  • Production Capacity:500PCS,Month

Description

Net Weight70Kg
Main Features:
1)Wet and dry sample dispersion system Integrated Design
PSA2308 intelligent laser particle size analyzer which is 1st set laser particle size analyzer integrated wet and dry dispersion test in one in China, it successfully resolved the problem of dry and wet technology integration, realize one key to switch, apply to test all the particle size distribution from 0.01μm-2000μm particles.
2) Intelligent full automatic operation system and manual operation mode, freely choose.
With intelligent automatic mode of operation, to achieve a key test, as long as according to the prompt addition of sample, click the "test", all process will be complete automatically, not only reduce the testing workload, but also eliminate the interference of human factors, to further improve the accuracy and authenticity of testing results.
Wet method: A key to complete water-supply, ultrasonic dispersion, circulation, testing, cleaning, data record, data analysis, save and print are automatically completed, only take 2 mins.
Dry method: A key to complete the dust collecting, compressed air supply, feeding, testing, data processing and other operation, take 1 min.

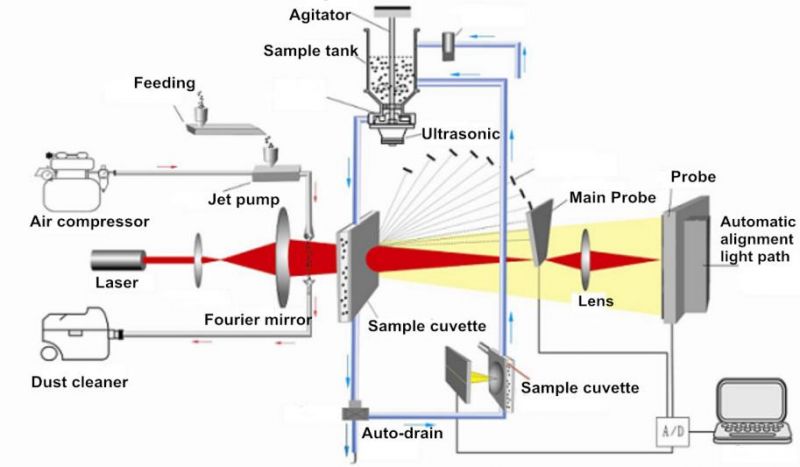

3) Stable and unique optical path system patented technology
Converging light Fourier transform path patent technology, enables scattering light be not restricted to the lens aperture limit, using Double Spectral plane optical path design, the Photodetector channels are 127 pcs, the maximum detection angle is 145 degrees and the minimum detection angle is 0.0155 degrees, Using dual-laser orthogonal light patent technology, The measurement range is effectively extended to 2000 microns. Canon Fourier lens imported from Japan is used to ensure the stability and accuracy of particle measurement.
4) Automatic Optical path alignment System,
The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.1um, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.
5) Full built-in Sample dispersion system.
 Auto wet dispersion system, SOP realize one key operation.
set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and distribution, avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long outer dispersing system tube, And it guarantees the representativeness of test result.
For dry dispersion system, Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, ensure good test.
6)Instrument Software
Original Unconstrained free fitting patent technology collect scattering data during the measurement process, make particle analysis not be restricted by any functions, truly reflect particles size distribution, the instrument provides high precision data with
10Khz data acquisition time.

Software Function:
1, Analysis Mode
Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. meet different demands of particle size statistic in different industries.
2, Statistic Method
Volume Distribution, Quantity Distribution
3, Statistic Comparison
Statistic Several Testing Results to compare and analyze
Get difference by compare test result of different batches of samples, samples before and after processing, and different time.
Have great practical significance to industrial raw materials quality control
4, User-defined Analysis
Figure out percentage according to the particle size
Figure out particle size according to the percentage
Figure out percentage according to the particle size range
Meet demands of representation of particle test in different industries.
5, Test Report
Word, Excel, Photo (Bmp), Text etc.
6, Multiple language Support
Chinese & English (Others are available)
7, Intelligent Operation Mode
Automatically control water inflow, dispersion, test and analysis.
Better Repeatability after remove human-factor

Intelligent Wet and Dry Laser Particle Size Analyzer

Application:
PSA2308 widely used in cement, ceramics, medicines, lotions, paints, dyes, pigments, fillers, chemicals, catalysts, drilling mud, abrasives, lubricants, coal, sediment, dust, cells, bacteria, food additives, pesticides, explosives, graphite, photographic materials, fuel, ink, metal and non-metal powder, calcium carbonate, kaolin, coal slurry and other powdered materials.

Adopt Patents Technology:
  1. Optical bench design is protected by patent No.- ZL 2014 2 0378380.8,
  2. Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
  3. MIE scattering principle application patent No.- ZL 2013 2 0812021.4.
  4. Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.
  5. Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0
  6. Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7
  7. Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2
7. Packing List
ItemsUnitQuantityItemsUnitQuantity
Power cablepcs2Quality cardpcs1
COM cablepcs2medical silica tubemeter1.5
Oil-free air compressorset12A fusepcs5
vacuum cleaner connectorpcs115A fusepcs5
vacuum cleanerset1PTFE tapebox1
PU tubemeter5USB transform cablepcs2
filterpcs1Silica tubemeter1.5
wrench 8/10pcs1Brush for sample tankpcs2
wrench 17/19pcs1Quartz sample cuvettepcs1
sampling spoonpcs2Sample cuvette brushpcs2
Balloon for clean dry sample tankpcs1Tool boxpcs1
Cleaning paperpcs3standard sample D50= 2.1μm  bottle1
inner hexagon screwdriverpcs1standard sample D50=110μm  bottle1
small flathead screwdriver 3*75pcs1Manualpcs1
Small flathead screwdriver 6*38pcs1Warranty cardpcs1
flathead screwdriver5*75pcs1Wrench 5.5/7pcs1
Software CDpcs1PSA2308A PSA pcs1
