• Model NO.：PSA311XP
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. PSA311XP Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

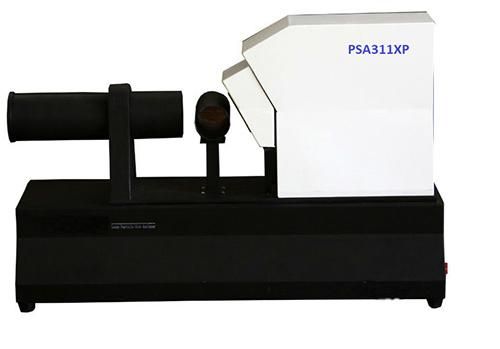

Item: Intelligent Spraying Laser Particle Size Analyzers
Model: PSA311XP
Brief Introduction:
PSA311XP desktop spray laser particle size analyzer is designed and developed specially for the droplet particle size distribution test of small spray equipment. It integrates a number of patent technologies including lens protection devices, It can measure droplets particles in the air without touch, It's mainly applied to medical atomizer, atomization medicine, various aerosol, spray and other small spray equipment, especially suitable for the national pharmacopoeia for inhalation aerosol, spray, powder mist and other particle size testing requirements.

Main Specification:

Model	PSA311XP
Execute Standard	ISO13320:2009, GB/T19077-2016, Q/0100JWN001-2013
Size Range	0.1-100µm
Detector channels	40 pcs
Accuracy error	<1% (CRM D50)
Repeatability error	<1% (CRM D50)
Light source	Semiconductor   λ= 650nm   p>1mw
Feeding	open
Measurement area length	6cm
Dimension	L66*W26*H45cm
N.W.	19KG

Main Features:

1. Unique optical path patented technology

Based on laser scattering principle, adopt a single beam of parallel light path and the dual-lens, dual-array detector technology to ensure high collection of scattering light at different angles, extends the measurement limit, improve the resolution of the instrument.

1. Unique air flow protection device

Airflow protection system can effectively protect the lens to avoid droplet   pollution of the lens in the testing process, Prolonging the service life of the instrument.

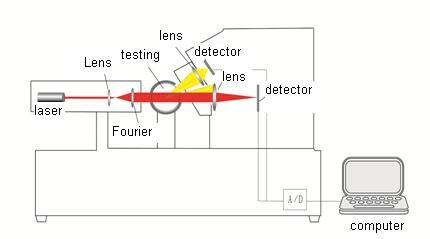

Principle:
