• Model NO.：ICP-TY-9000
• Operating Temperature：(10 ~ 35)°c
• Storage Temperature：(0 ~ 45)°c
• Transport Package：Stand Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. ICP-TY-9000 Operating Temperature (10 ~ 35)°c Storage Temperature (0 ~ 45)°c Transport Package Stand Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

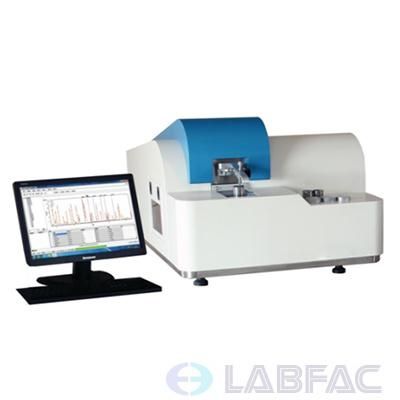

Item: Full Spectrum Direct Reading Spectrograph Spectrometer for Metal Analysis For Sale
Model: ICP-TY-9000
Specification and technical parameter

Item	Indicator
Detection substrate	Fe
Detection time	According to the type of test sample, usually it is about 25s.
Optical system	Palmer type - runge Rowland circle full spectrum vacuum type optical system
Wavelength range	130 ~ 800nm
Focal length	400mm
Detector	High-performance CCD array
Electrode	Tungsten material spray electrode
Analytical gap	Sample Stage Analytical gap:3.4mm
Operating temperature	(10 ~ 35)°C
Storage temperature	(0 ~ 45)°C
Operating humidity	20% ~ 80%
Argon purity requirements	99.999%
Argon gas inlet pressure	0.5MPa
Argon flow	Stimulating flow is about 3.5L/min, maintaining flow is about 0.4L/min.
Stimulating max power	400VA
Light source type	brand new adjustable digital light source, high energy preliminary combustion science (HEPS)
Discharge frequency	100-1000 Hz
Discharge current	Max 400A
Spark Stand aperture	13mm
Vacuum system	Vacuum software automatically control and monitor
Working power	220V AC, 50/60Hz,  the single-phase power supply of protective grounding
Instrument dimensions	860*720*500
Instrument weight	80kg


Optical system
l full spectrum optical system of Palmer type - runge structure
l  Maximum wavelength range: 130 ~ 800nm
l Multiple high performance CCD detector
l Integrated optical chamber process molding, resistant to change of environment temperature
l Vacuum light chamber design guarantees C, S, P, could achieve the best performance.
l light room temperature control, constant temperature is 35 °C
l Directed type optical technology and lens MgF2 materials ensure that the best energy of UV wavelength of C, S, P.
