Electric Hydraulic Crucible Pot Trolley Loader for Fire Assay Laboratory
Qingdao Yosion Intelligent Technology Co., Ltd.- Sample Type：Liquid
- Processing Method：Load
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Digital Display
- Performance：Semi-automatic
Base Info
- Model NO.：YHOD-25,50
- Power Supply：Build in Charger
- Weight：50-100kg
- Certification：Ios
- Customized：Customized
- Max Loading Capacity：400kg
- Transport Package：Export Packing
- Specification：customized
- Trademark：Yosion
- Origin：China
Description
Basic Info.
Model NO. YHOD-25/50 Power Supply Build in Charger Weight 50-100kg Certification Ios Customized Customized Max Loading Capacity 400kg Transport Package Export Packing Specification customized Trademark Yosion Origin ChinaProduct Description

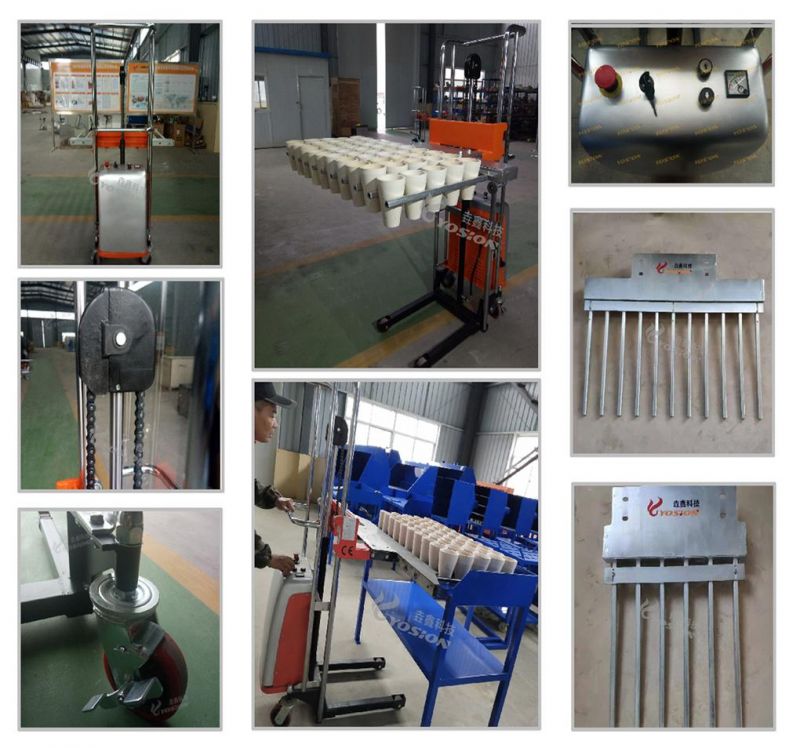

Features:·
· 25 place/50 place one-time pots loading capacity, saving time and increase efficiency.
· Easy to use with control panel to realize lifting and pots placing action.
· High-intensity steering wheel with brakes, safe and stable, easy to move.
· Built-in charger for easy charging, maintenance-free battery, 5-year warranty; imported hydraulic pump station, lightweight and flexible.
· Customized loading capacity to meets client's needs.
Technical Parameters:
Model | The Max.Loading Capacity | Lifting Height | Fork Size | Pairwith | Maintenance free b attery Spec | Hydraulic pump motor |
YHDD-25 | 400kg | 1500mm | 900x650x60mm | 50g/65g or can customize to any crucible size | DC12V,60AH | DC12V/ 700W |
YHDD-50 | 400kg | 1500mm | 900x1200x60mm | 50g/65g or can customize to any crucible size | DC12V,60AH | DC12V/ 700W |
CUSTOMIZED PRODUCTS ARE AVAILABLE.

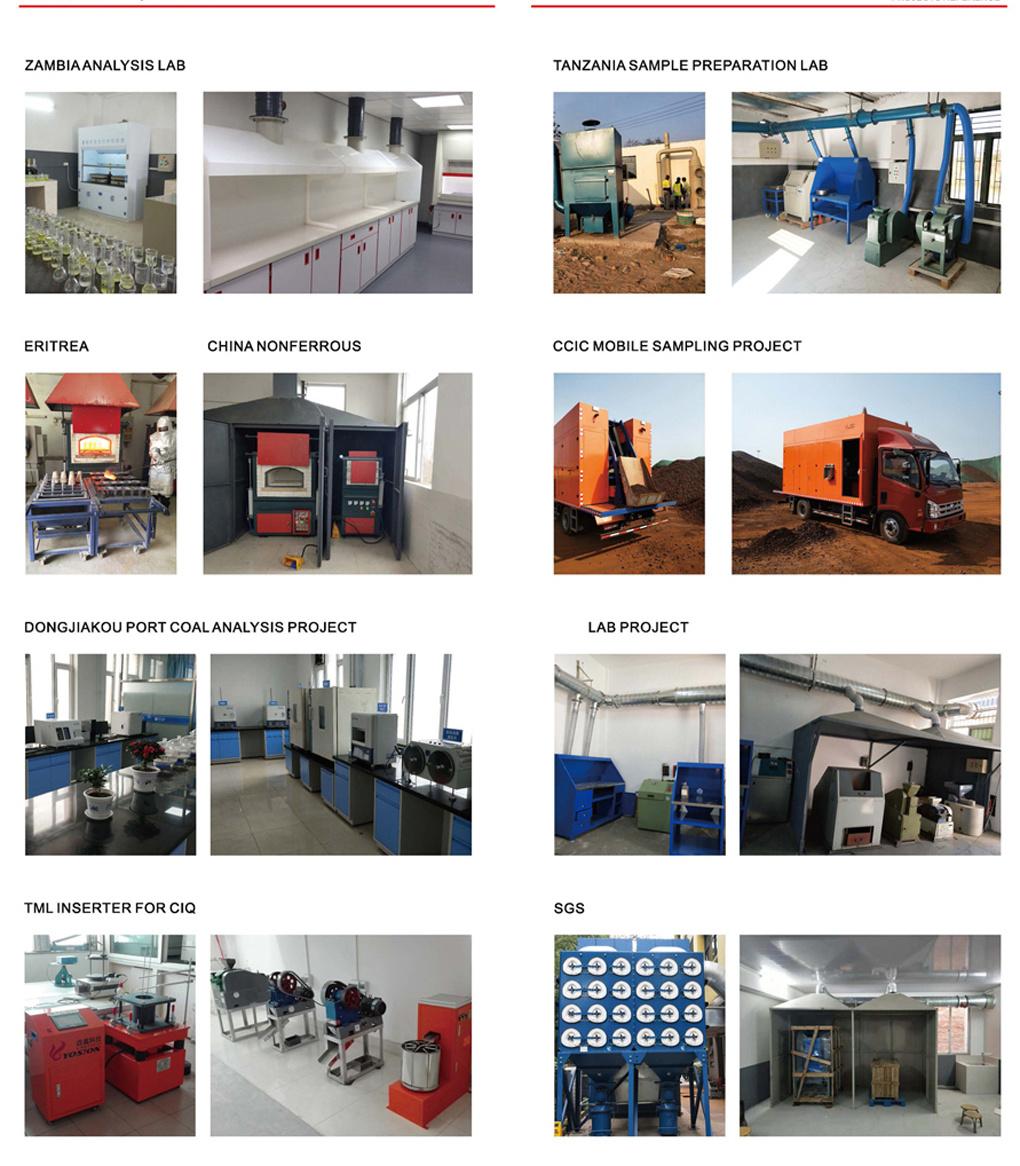

Projects Reference
