• Model NO.：L-U8
• Display：7" 1024*768 High Resolution Color LCD
• Button：Omron Long Life Touch Button
• Optical System：Dual Beam, Built-in Reference Detector
• Light Source：Flashing Xenon Lamp (1 Billion Times, 7 Years)
• Wavelength Range：190-1100nm
• Spectral Bandwidth：1nm or 2nm Optional
• Wavelength Accuracy：0.3nm
• Wavelength Repeatability：0.1nm
• Wavelength Resolution：0.1nm
• Photometric Mode：Transmittance, Absorbance, Concentration, Energy
• Analysis Software：Yes
• Place Origin：China
• Size：50*40*30
• Weight：35kg
• Transport Package：Standard Export Packing
• Specification：50*40*30
• Trademark：LABOAO
• Origin：China
• HS Code：8419399010
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. L-U8 Display 7" 1024*768 High Resolution Color LCD Button Omron Long Life Touch Button Optical System Dual Beam, Built-in Reference Detector Light Source Flashing Xenon Lamp (1 Billion Times, 7 Years) Wavelength Range 190-1100nm Spectral Bandwidth 1nm or 2nm Optional Wavelength Accuracy 0.3nm Wavelength Repeatability 0.1nm Wavelength Resolution 0.1nm Photometric Mode Transmittance, Absorbance, Concentration, Energy Analysis Software Yes Place Origin China Size 50*40*30 Weight 35kg Transport Package Standard Export Packing Specification 50*40*30 Trademark LABOAO Origin China HS Code 8419399010 Production Capacity 5000pieces/Month

Product Description

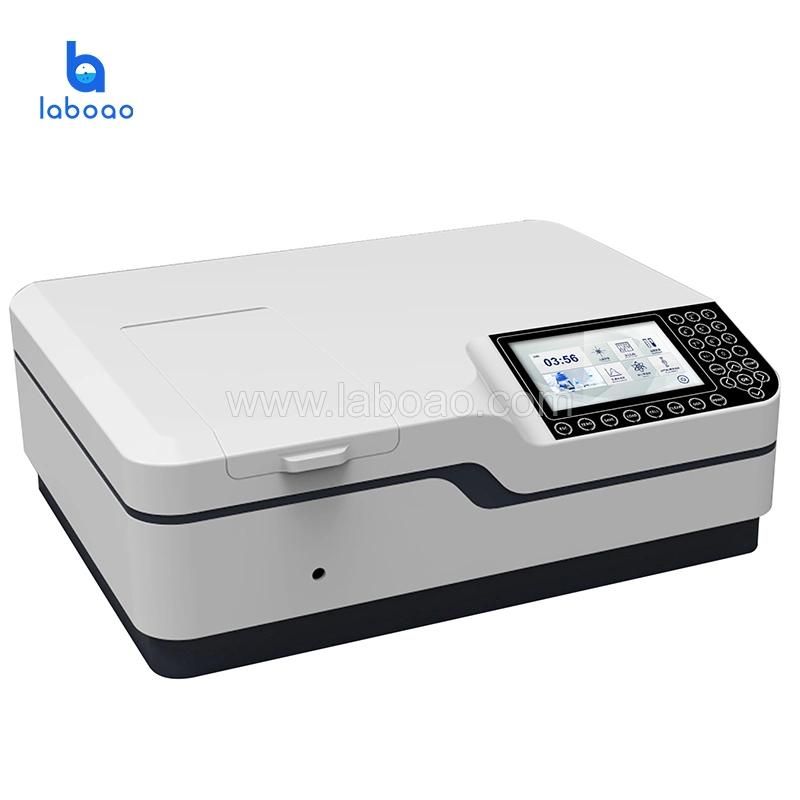

L-U8 Omron Button Double Beam UV-Vis Spectrophotometer With Xenon Lamp
The instrument uses pulsed xenon lamp as the light source. The instrument is used normally for at least 7 years, no need to replace the light source, and the user's instrument use cost is minimized. We use original optical, circuit, structural design, advanced process specifications and strict quality management system to create this international advanced level, to meet user needs and usage habits. Microcomputer control and processing data, large-screen color display, graphical interface operation and user-friendly menu prompts, ready to draw spectral maps and analyze test data. It has many functions such as photometric measurement, automatic scanning measurement spectrum, quantitative analysis, and dynamic spectrophotometry. The sensitivity and accuracy of the analysis are high; the spectral data processing function is strong; the Chinese man-machine dialogue is convenient, the operation is convenient; the appearance of the instrument is beautiful and generous.


Feature:

1. Fast and convenient, the instrument is ready to use, no need to preheat, so that users can completely get rid of the traditional light source photometer needs to wait for at least 30 minutes to analyze. The instrument uses a pulsed xenon lamp as the light source, and 1 billion flashing pulsed xenon lamps can last for 7 years. The long-life light source greatly reduces the user's use cost, and the user does not need to worry about the trouble caused by frequent replacement of the light source, and the cleaning and low consumption, the pulsed xenon light source does not cause secondary pollution, and does not cause damage to the analyst's body.

2. 7-inch TFT large-screen true color LCD display, Omron touch button, the use of feel more comfortable, use thousands of times will not damage, large screen display directly display a variety of scan curves and maps, so that users can use without a computer Complete all measurement needs.

3. Support U disk storage, convenient for users to use, user measured data can be directly exported to U disk, data opening and editing does not require any professional auxiliary software support, can support excel, txt format, picture format (can output four formats : *.csv, *.qua.*.tet, *.bmp), it is convenient for users to edit the experiment report directly on the PC, which greatly saves the experimental table space and is convenient for users.

4. Data output: RS-232C serial port (printing), USB drive (online), USB HOST (connected to U disk), standard 32GB memory

5. The industry's first to use the advanced 32-bit Cortex_M3 processor, the main frequency reaches 120M, the instrument can store 5000 test data or 500 work curves.

6. Suspension optical system design, strengthen the thick aluminum base design, eliminate the impact of vibration or deformation on the optical system; double-layer design, completely separate the optical circuit parts, even if the instrument is maintained, the fork avoids light and electricity. Mutual interference increases the resolution and stability of the instrument.

7. The instrument adopts the national patent ZL 2010 2 0562320.3 photoelectric signal detection device to make the instrument signal-to-noise ratio lower and the instrument more stable.

8. Chinese and English dual system mode, convenient for customers to use.

9. Optional rotary 8-type automatic cuvette holder with patented design ensures that the light is completely centered when passing through the cuvette, improving the performance of the instrument.

Function:

Wavelength scanning, kinetic determination, quantitative measurement, multi-wavelength measurement, protein nucleic acid determination, system setting.
Specification:

Model	L-U8
Display	7" 1024*768 high   resolution color LCD
Button	Omron long life touch button
Optical system	dual beam, built-in   reference detector
Light source	flashing xenon lamp (1   billion times, 7 years)
Detector	Silicon Photodiode
Wavelength range	190-1100nm
Spectral bandwidth	1nm or 2nm optional
Wavelength accuracy	±0.3nm
Wavelength repeatability	0.1nm
Wavelength resolution	0.1nm
Stray light	≤0.05% T at 220nm. 360 nm
Photometric accuracy	±0.3%T
Photometric mode	transmittance, absorbance,   concentration, energy
Analysis software	YES

1. What is the delivery time after paid?
Normally needs 5-7working days. If quantity is large or need to customize, please confirm with us before order.

2. What kind of Payment term do you accept?
Telegraphic Transfer(T/T); Letter of Credit(L/C); Western Union; MoneyGram; Paypal...

3. How to deliver?
By Sea: Suitable for large volume. Cheap and safe, but slow.
By Air: Suitable for small volume or urgent order. Safe and faster.
By Express: Such as DHL, TNT, Fedex, UPS...Customs clearance included and sent to door, very convenient.

4. What is your after-sales service?
Our warranty is 12months. If have quality problem, we will send parts for free. If human damaged or out of warranty, only parts charged, technical support is free forever.

5. How many kinds of spectrophotometers do you have?
Our spectrophotometer is divided into visible spectrophotometer, UV-Visible spectrophotometer, double beam spectrophotometer.

6. Where is the spectrophotometer used?
Can be applied to factories, schools, agriculture, food, biochemistry, environmental protection, petrochemical, health and other units of the basic laboratory.

7. How to choose the right spectrophotometer?
Tell us what you need,our professional sales staff will recommend the most suitable model for you.
