• Model NO.：ND100-2
• Customized：Customized
• Product Name：Sample Concentrator
• Time Range：1min~ 99h59min
• Max Pressure：0.05MPa
• Nitrogen Consumption：15L,Min
• Lead Time：Within 7 Days
• Transport Package：Strong Packing
• Specification：CE ISO TUV
• Trademark：PIOWAY
• Origin：China

Basic Info.

Model NO. ND100-2 Customized Customized Product Name Sample Concentrator Time Range 1min~ 99h59min Max Pressure 0.05MPa Nitrogen Consumption 15L/Min Lead Time Within 7 Days Transport Package Strong Packing Specification CE ISO TUV Trademark PIOWAY Origin China

Product Description

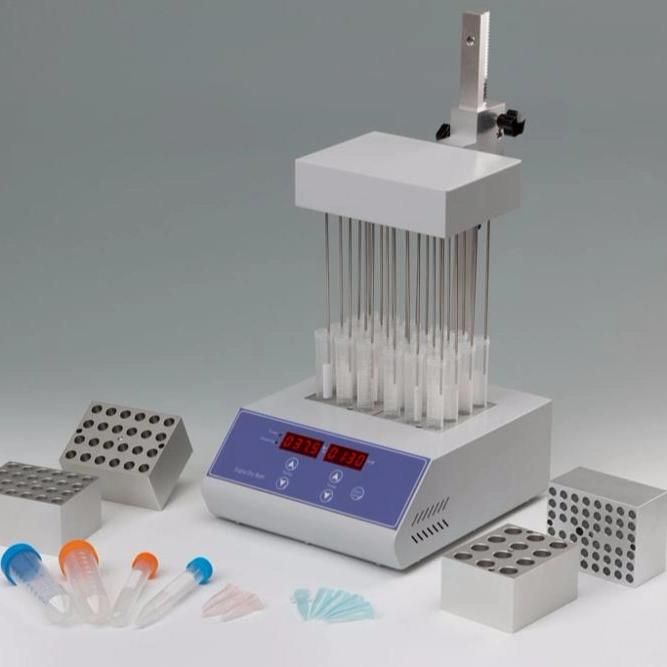

CE Approved Lab Sample Concentrator With Two Blocks(ND100-2)


Descriptions:
ND100-2 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in block, blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries

Features:
- High precision and wide range of temp control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.

Specifications:

Temp. range	RT. +5 ºC ~150 ºC
Time range	1min~ 99h59min
Max pressure	0.05Mpa
Nitrogen consumption	15L/min
Temp. accuracy	≤±0.5 ºC
Display accuracy	0.1 ºC
Needle length	150mm
Standard blocks	2
Temp. uniformity	≤±0.5 ºC (@100 ºC )
Temp. Uniformity	≤±1 ºC (@150 ºC )
Heating time	≤30min(from 40 ºC to 150 ºC )

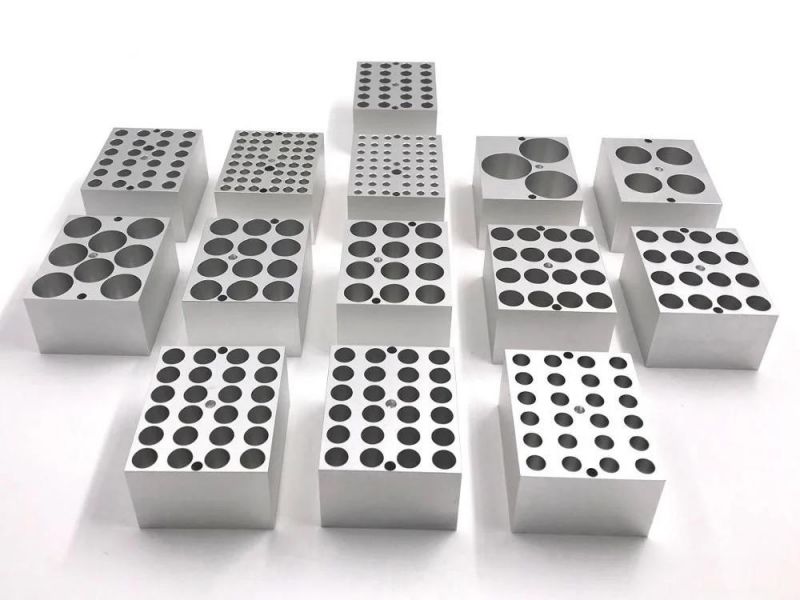

Opitional Modules :



Model	Tube Diameter	Number of Test Tube
MD03	10mm	24
MD04	12mm	24
MD05	13mm	24
MD06	15mm	16
MD07	16mm	16
MD08	19mm	12
MD09	20mm	12
MD10	26mm	8
MD11	28mm	4
MD12	40mm	3
MD15	1.5ml	24
MD16	2.0ml	24
