Lab Nitrogen Evaporator, Sample Concentrator with One Block (ND200-1)
Pioway Medical Lab Equipment Co., Ltd.- Sample Type:Gas
- Warranty:12 Months
- Display:Digital Display
- Performance:Automatic
- Weight:0-50kg
- Certification:CE
Base Info
- Model NO.:ND200-1
- Customized:Customized
- Product Name:Sample Concentrator
- Time Range:0min~ 99h59min
- Max Pressure:0.1MPa
- Nitrogen Consumption:15L,Min
- Lead Time:Within 7 Days
- Transport Package:Strong Packing
- Specification:CE ISO TUV
- Trademark:PIOWAY
- Origin:China
Description
Basic Info.
Model NO. ND200-1 Customized Customized Product Name Sample Concentrator Time Range 0min~ 99h59min Max Pressure 0.1MPa Nitrogen Consumption 15L/Min Lead Time Within 7 Days Transport Package Strong Packing Specification CE ISO TUV Trademark PIOWAY Origin ChinaProduct Description

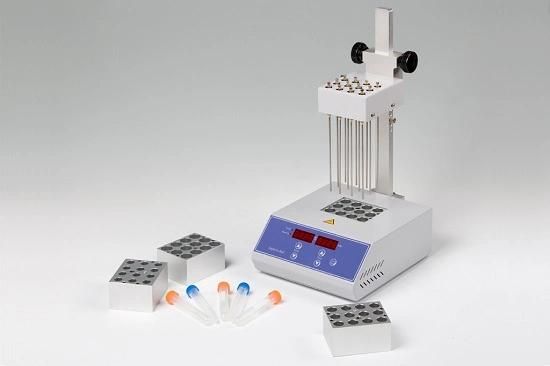

Lab Nitrogen Evaporator, Sample Concentrator With One Block(ND200-1)
Descriptions:
ND200-1 sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block, blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
Features:
- High precision and wide range of temp. control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.
Temp. range | RT. +5 ºC ~160 ºC |
Time range | 0min~ 99h59min |
Max pressure | 0.1Mpa |
Nitrogen consumption | 15L/min |
Temp. accuracy | ≤±0.5 ºC |
Display accuracy | 0.1 ºC |
Needle length | 150mm |
Standard blocks | 1 |
Temp. uniformity | ≤±0.5 ºC (@100 ºC ) |
Temp. Uniformity | ≤±1 ºC (@150 ºC ) |
Heating time | ≤30min(from 40 ºC to 150 ºC ) |
Max. orbit | 200mm |

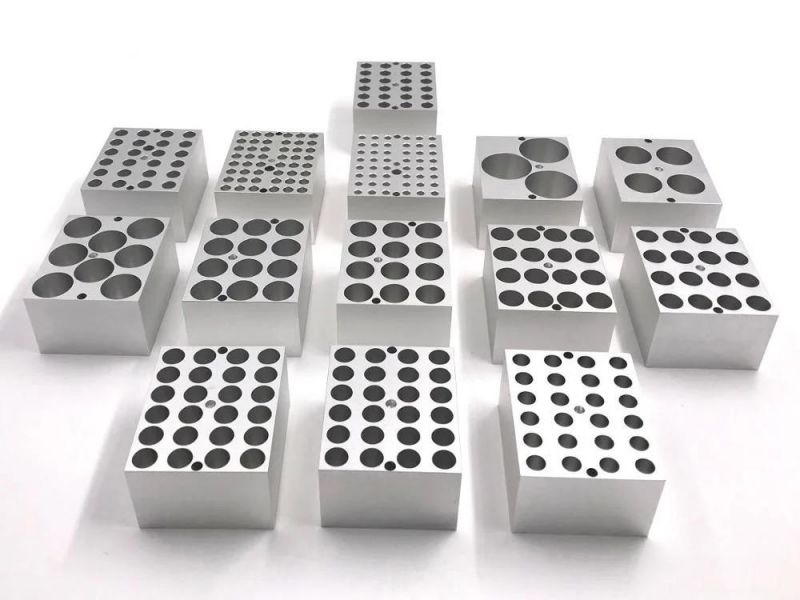

Opitional Modules :
Model | Tube Diameter | Number of Test Tube |
MD50 | 10mm | 12 |
MD51 | 12mm | 12 |
MD52 | 13mm | 12 |
MD53 | 15mm | 12 |
MD54 | 16mm | 12 |
MD55 | 19mm | 12 |
MD56 | 20mm | 12 |
