• Model NO.：Gentier 96E
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Customized
• Product Name：Fully Automatic Medical PCR
• Channer：6 Channel
• Reaction System：0 -100
• Linear Range：1 - 1010 Copies
• Sample Detection Repeatability：CT Value CV 0.5%
• Sample Linear：,R, Greater or Equal to 0.999
• Detector：Photodiode (Pd)
• Detection Location：Top Excitation, Top Scan
• Fluorescence Linear：R Greater or Equal to 0.990
• Cover Temperature：Room Temperature - 110 C
• Module Temperature：0-100c
• Temperature Uniformity：0.1
• Temperature Accuracy：0.1
• Gradient Temperature Width：1-40c
• Gradient Temperature Number：12 Columns
• Transport Package：Plywood Case Package
• Specification：355mm× 480mm× 485mm
• Trademark：LABOAO
• Origin：China
• Production Capacity：1000sets,Month

Basic Info.

Model NO. Gentier 96E Power Supply 220V Weight 0-50kg Certification CE Customized Customized Product Name Fully Automatic Medical PCR Channer 6 Channel Reaction System 0 -100 Linear Range 1 - 1010 Copies Sample Detection Repeatability CT Value CV 0.5% Sample Linear /R/ Greater or Equal to 0.999 Detector Photodiode (Pd) Detection Location Top Excitation, Top Scan Fluorescence Linear R Greater or Equal to 0.990 Cover Temperature Room Temperature - 110 C Module Temperature 0-100c Temperature Uniformity 0.1 Temperature Accuracy 0.1 Gradient Temperature Width 1-40c Gradient Temperature Number 12 Columns Transport Package Plywood Case Package Specification 355mm× 480mm× 485mm Trademark LABOAO Origin China Production Capacity 1000sets/Month

Product Description

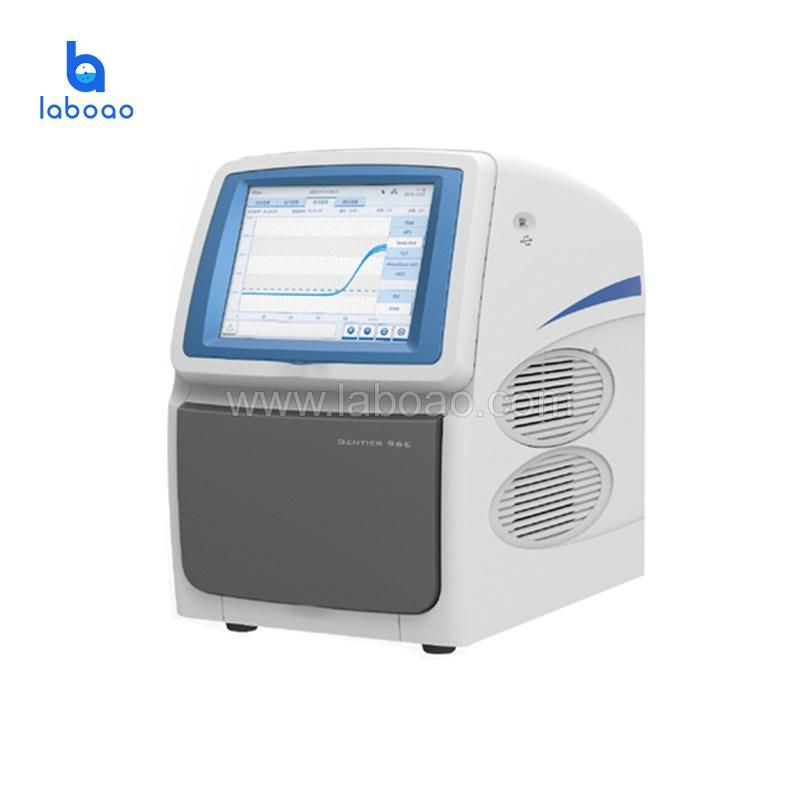

Medical equipment simpliamp thermal cycler gradient PCR
 Description
 This product has many advantages such as a scientific and efficient temperature control system and photoelectric system, powerful and easy-to-use software analysis functions, and humanized control methods. It can easily achieve downstream multiple gene detection, quantitative analysis, SNP analysis, melting curve analysis and other applications. . At present, it is widely used in medical institutions at all levels, universities and research institutes, CDC, immigration inspection and quarantine bureau, public security criminal investigation material identification center, veterinary stations, food companies and dairy products industries.

Feature

1. Rapid temperature rise and fall, the maximum rise and fall rate can reach 6.1 ºC / s;
2. Highlight maintenance-free LED light source for fast fluorescence scanning;
3. 10.4 inch full color touch screen, the device can run independently from the computer,
4. Store more than 1000 experimental data;
5. With auto-recovery experiment function when power off and call again,
6. No need to wait for the PC and software to open.


Specification


Detection flux	96
Applicable supplies	0.2ml 96-well plate, 8 tubes, single tube (transparent, frosted, milky white are applicable)
Number of fluorescence channels	6
Applicable fluorescein	Channel 1: FAM, SYBR Green I, SYTO 9, EvaGreen, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: ROX, Texas Red Channel 4: Cy5 Channel 5: Alexa Fluor 680 Channel 6: FRET
Applicable probe	Taqman probe, molecular beacon probe, scorpion probe, FRET probe, etc.
reaction system	0 ~ 100μl
Linear range	1 ~ 1010 copies
Sample detection repeatability	Ct value CV≤0.5%
Sample linear	/r/≥0.999
Control method	Stand-alone operation: Use the instrument's 10.4-inch touch screen and software system to create a new experiment and run it. Network operation: (1) Direct PC connection: After the instrument is connected to the PC via a point-to-point network, the application software on the computer is used to implement experiments, monitoring, data analysis and other operations; (2) LAN access: By setting the network parameters of the instrument, the instrument can be connected to the local LAN, so that any computer in the local area network can perform operations such as instrument monitoring, data synchronization, and analysis.
Automatic sample bin	Sample compartment can be automatically popped / closed by touch screen control When the pop-up state is closed, you can touch the sample compartment to close automatically.
Power failure protection	With the function of automatically resuming the experiment when the power is cut off and then power on, there is no need to wait for the PC and software to open
Data transmission	Experimental data can be imported and exported via USB flash drive
storage	Can store more than 1000 experiment data files
Optical system
light source	Bright long-life maintenance-free LED light source
Detector	Photodiode (PD)
Detection location	Top excitation, top scan
Detection method	Six fluorescence channels are scanned from hole to hole simultaneously without fluorescence edge effect
Detection time	Complete detection of 96 wells in 6 fluorescence channels in 7 seconds
Excitation light wavelength	Channel 1: 465nm Channel 2: 527nm Channel 3: 580nm Channel 4: 632nm Channel 5: 680nm Channel 6: 465nm
Detection light wavelength	Channel 1: 510nm Channel 2: 563nm Channel 3: 616nm Channel 4: 664nm Channel 5: 730nm Channel 6: 616nm
Fluorescence linear	r≥0.990
Dynamic range for fluorescence detection	Dynamic range of fluorescence detection can be adjusted according to reagents
Temperature Control System
Cover temperature	Room temperature ~ 110 ºC
Constant pressure hot cap	Compatible with consumables of different heights
Module temperature	0ºC~100ºC
Module temperature control principle	Peltier effect, semiconductor refrigeration technology
Maximum temperature rise / fall rate	Maximum heating rate ≥6.1 ºC / s Maximum cooling rate ≥5.0 ºC / s
Temperature uniformity	±0.1ºC
Temperature accuracy	≤±0.1ºC
Gradient temperature width	1ºC~40ºC
Gradient temperature number	12 columns
Special temperature setting function	Supports thermal gradient PCR experiments, Long PCR, Touch Down PCR
Software functions
Analysis function	Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, SNP analysis, etc.
Report customization	Pre-stored multiple industry experiment report models Pre-stored multiple industry experiment report models Board full open universal report function, users can customize report content and form
Rights management function	The administrator account can limit the functions of "manually set thresholds", "running settings", "running experiments", and "analysis data" of ordinary accounts to manage the use rights of instruments of ordinary accounts
Resource sharing function	After the instrument is connected to the PC, both parties can realize the synchronous sharing of experimental data through operations such as uploading and downloading.
Transport lock function	Automatically detect transport lock status and set lock / unlock settings
Fault management	Intelligently determine the type of fault and perform fault management
LIS function	Can export CSV, Excel, TXT and other formats. Open data ports, synchronously support interconnection with LIS system
other information
operating system	Win XP,Win 7,Win10
Interface Type	1 Ethernet port, 1 front USB, 2 rear USB
Dimensions	355mm×480mm×485mm(W×D×H)
weight	30kg
Input power	AC220V,50Hz
Power consumption	900VA
working environment	Temperature: 10 ºC ~ 30 ºC Relative humidity: 20% to 85%
