• Model NO.：TPO-3000
• Color：Gray
• Model：Tpo-3000
• Weight：20kg
• Function：Test Flash Point of Petroleum Product
• Test Range：Room Temperature-400ºC
• Printer：Printer
• Feature：Electronic Ignition, No Need Gas Source
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE,ASTMD92,GB267
• Trademark：TOP Oil Purifier
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. TPO-3000 Color Gray Model Tpo-3000 Weight 20kg Function Test Flash Point of Petroleum Product Test Range Room Temperature-400ºC Printer Printer Feature Electronic Ignition, No Need Gas Source Transport Package Standard Export Wooden Case Specification ISO/CE/ASTMD92/GB267 Trademark TOP Oil Purifier Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

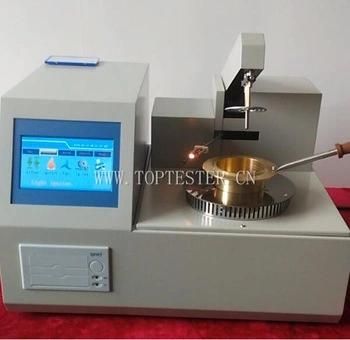

Petroleum Products Automatic Open Cup Flash Point Testing Apparatus/falsh point tester


No need of gas source; electronic ignition; imported sensor; automatic correction of air pressure; alerting if over value

Application:

The automatic flash point analyzer(open-cup) is designed in accordance with ASTM D92, IS02592,GB267,GB3536 etc. It adopts microcomputer technology that makes realization of completely automatic. It equips with color touch screen operations system and auto-high speed thermal printer.Most important,it has the function of self-checking.It is an ideal flash point analyzer(open-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.


Main Features:

1.7-inch color touch screen and man-machine conversation LCD display in English.
2.Adopts high speed signal processor: precision simulation/digital converter circuit.
3.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure;self-adjust the flash point.
4.Data storage function: store 300 groups testing data. It is timely to check historical records
5.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
6.Stirring,ignition,testing,alerting,cooling,printing are fully automatic.
7.Adaptive PID control algorithm: automatically adjust the heating curve according to standards
8.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
9.Security airless source of platinum alloy to ignite:stable,reliable and high precision

Technical parameter

Display	7-inch color touch LCD display screen
Test method:	Thermocouple differential detection
Test range:	Room temperature-400ºC
Repeatability:	±2ºC
Printer:	High speed thermal printer,paper size:44mm
Ignition mode:	Automatically electronic ignition
temperature Detection	Imported precision platinum resistance
Self-checking :	Printer, igniter, electromagnetic valve, detection arm movements, ignition rod stroke ect.
Power consumption:	<700w
Temperature:	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power:	AC220V±10%
Dimension	400×300×240mm
Weight:	20 kg

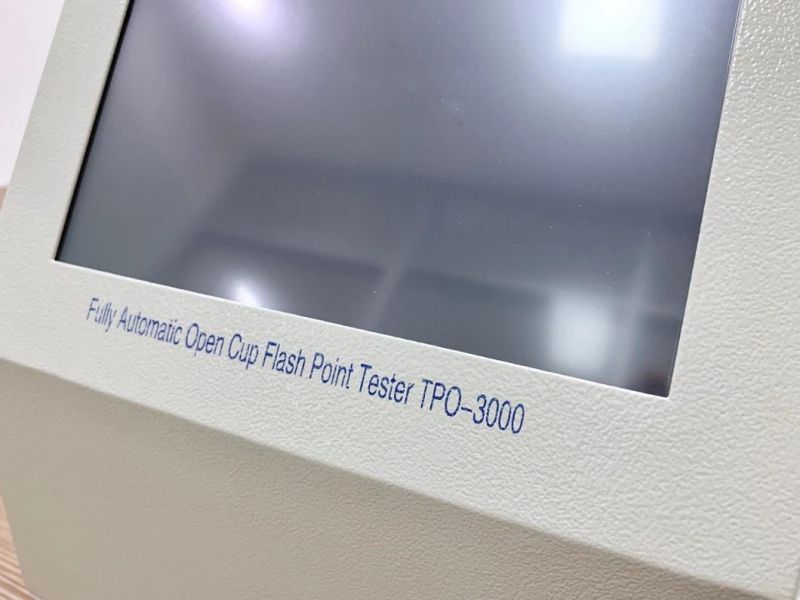

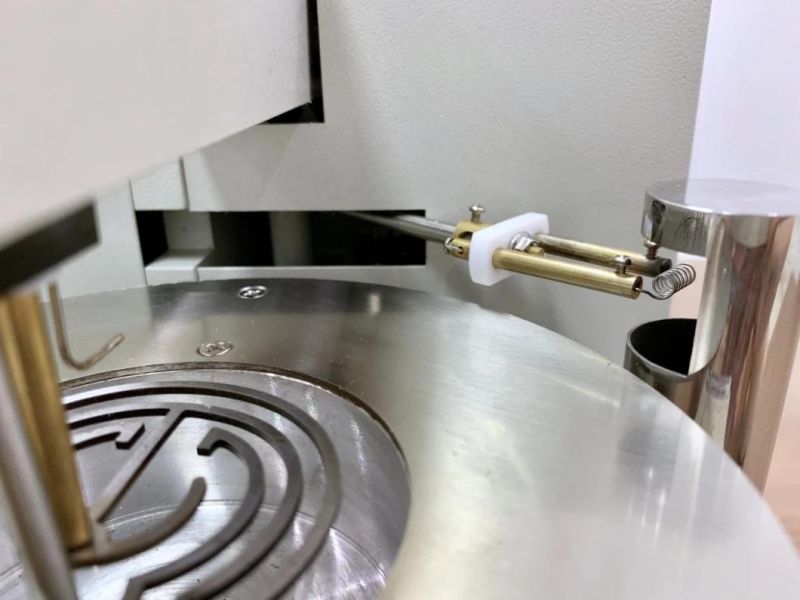

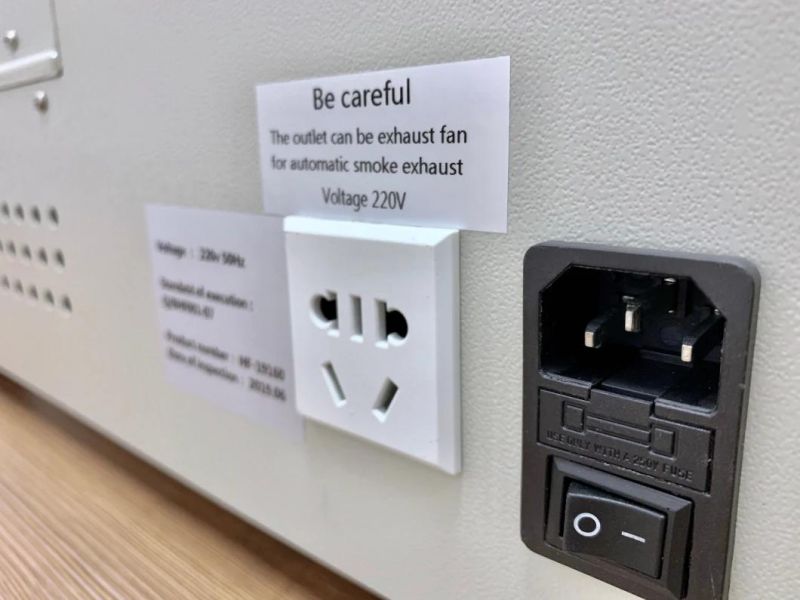

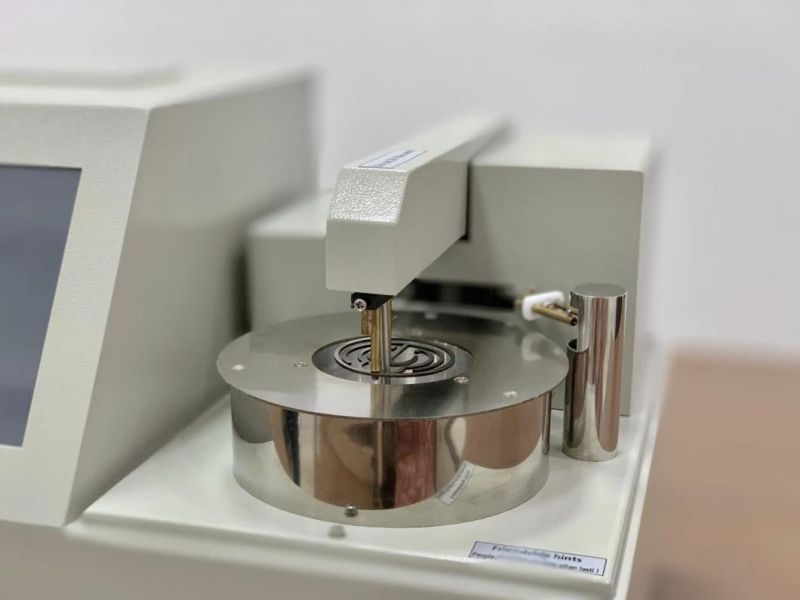

Details:

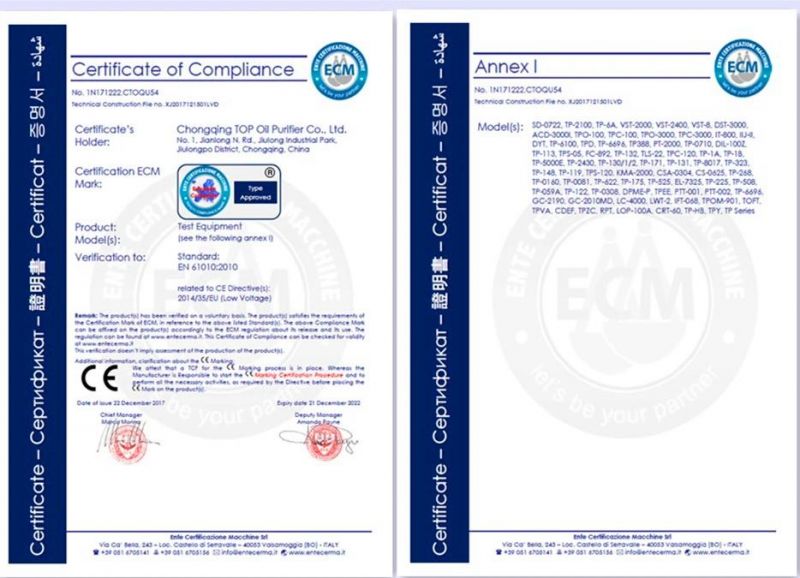

Related Certificates:

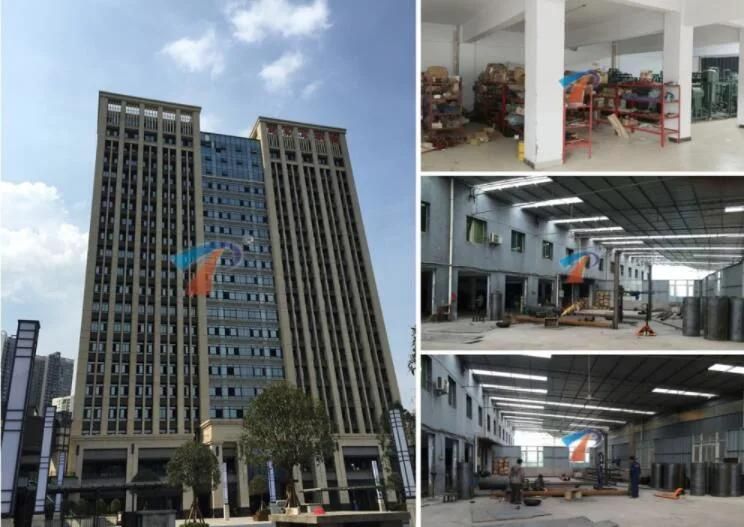

Our Company:




Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

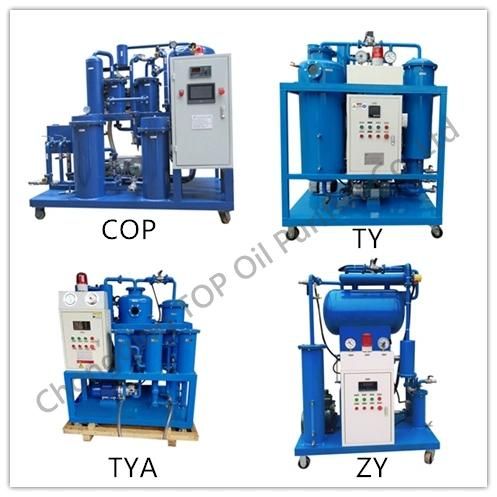

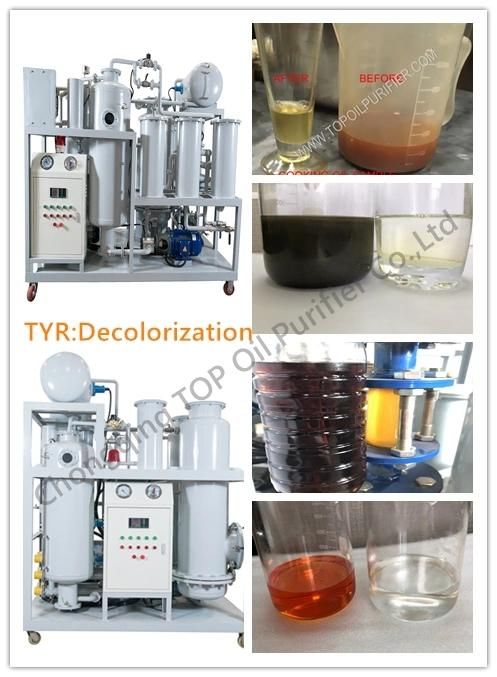

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

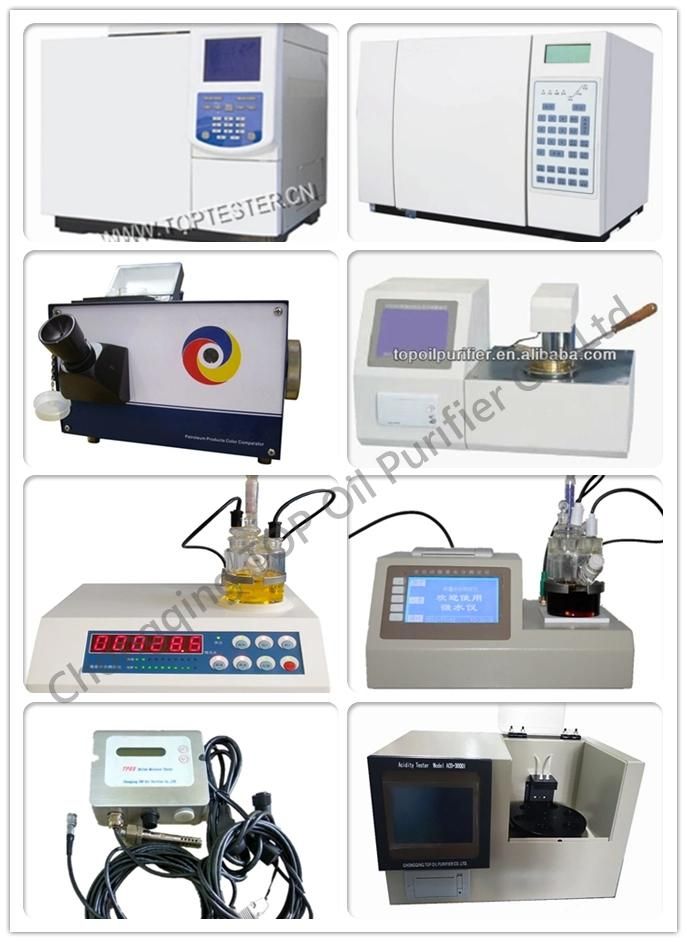

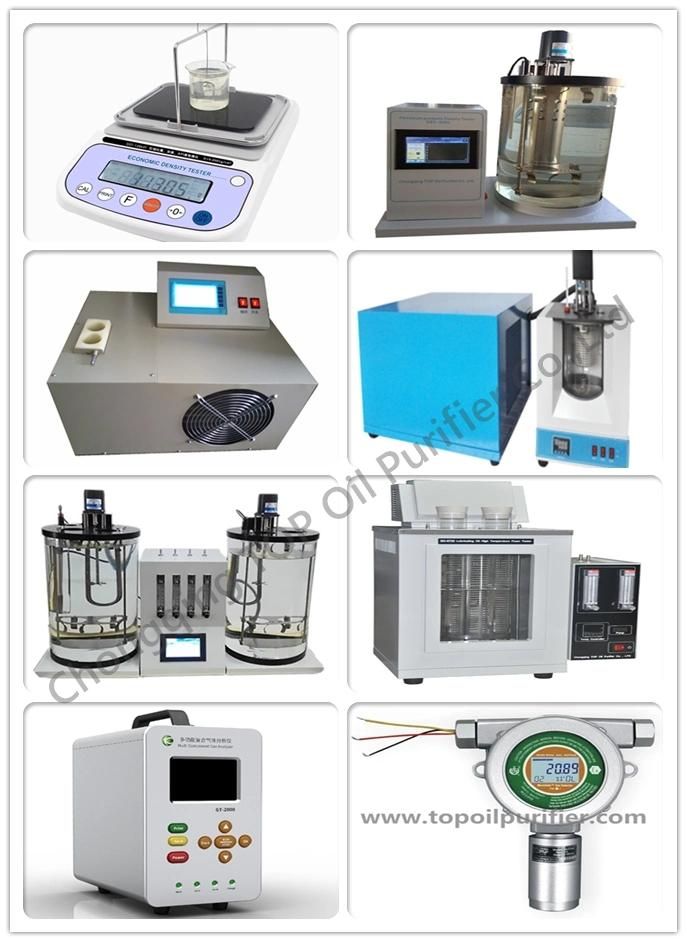

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.



Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
