• Specification：D32*3, D10*1, 25.4*2
• Trademark：ICC
• Origin：Qinhuangdao
• HS Code：9001909090
• Production Capacity：20000pieces,Month

Basic Info.

Specification D32*3, D10*1, 25.4*2 Trademark ICC Origin Qinhuangdao HS Code 9001909090 Production Capacity 20000pieces/Month

Product Description

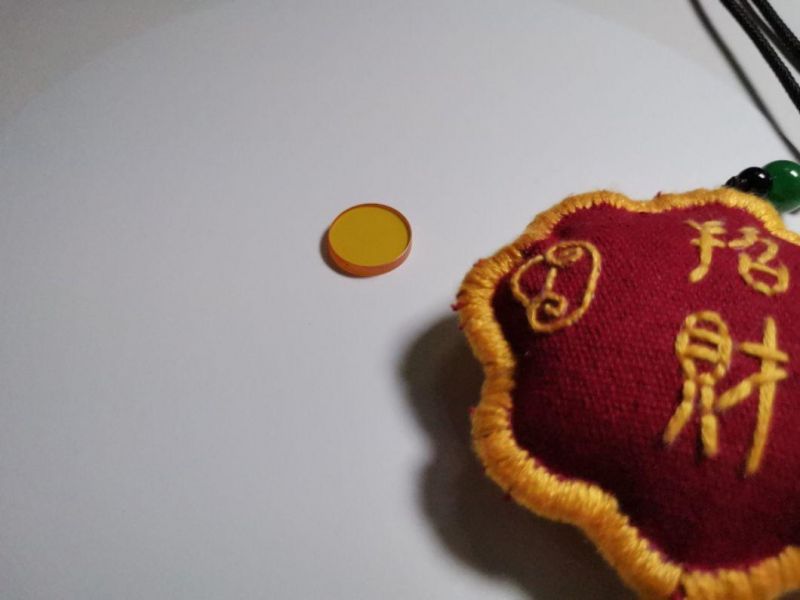

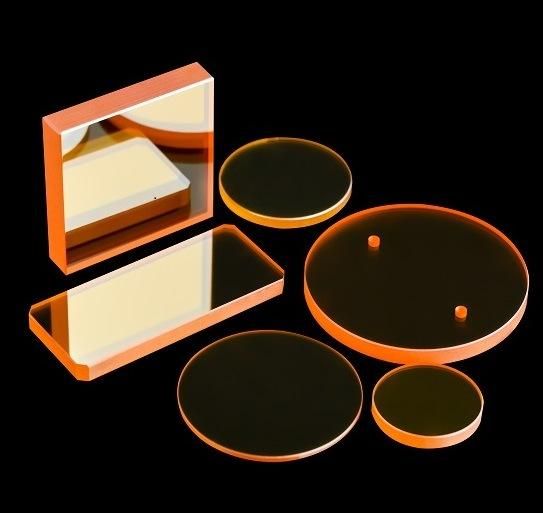

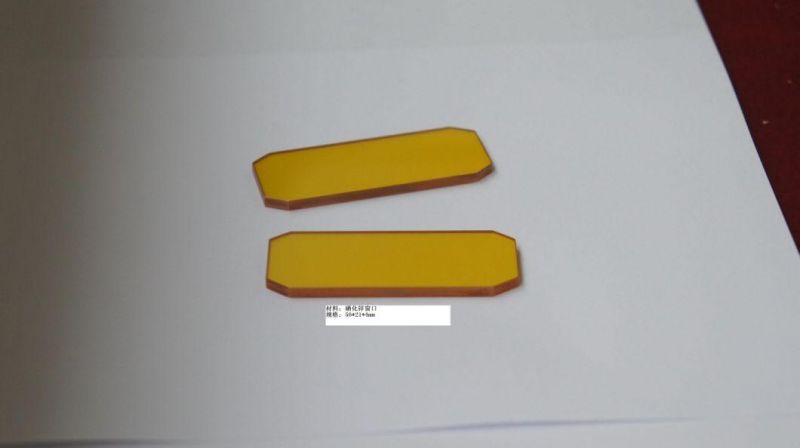

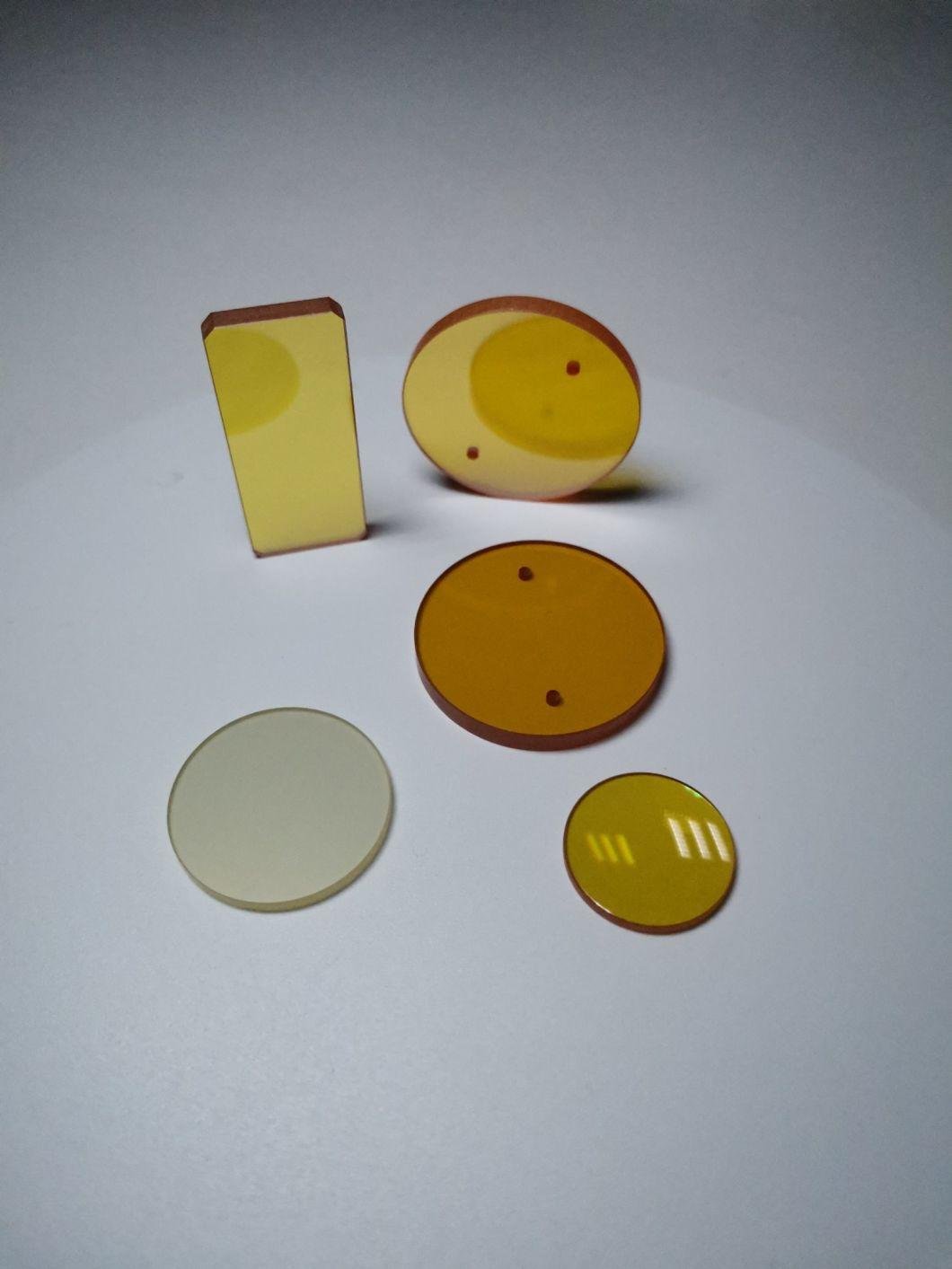

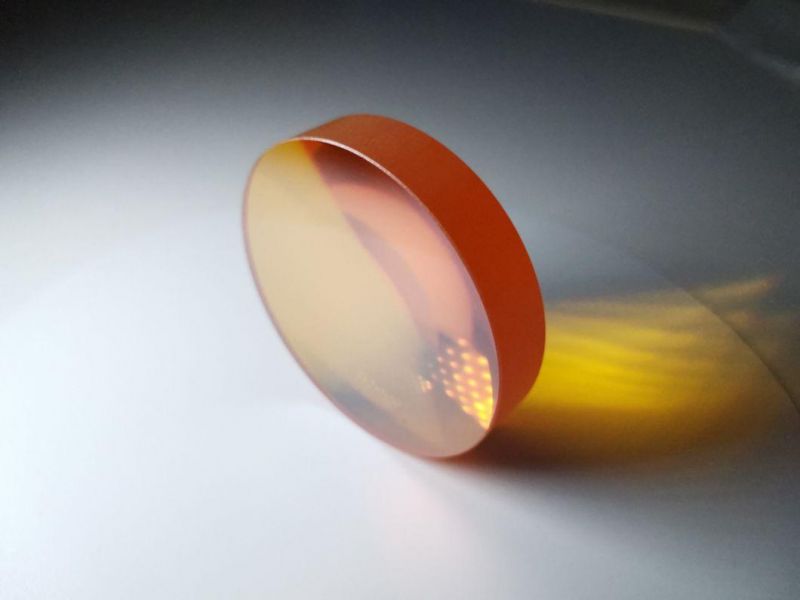

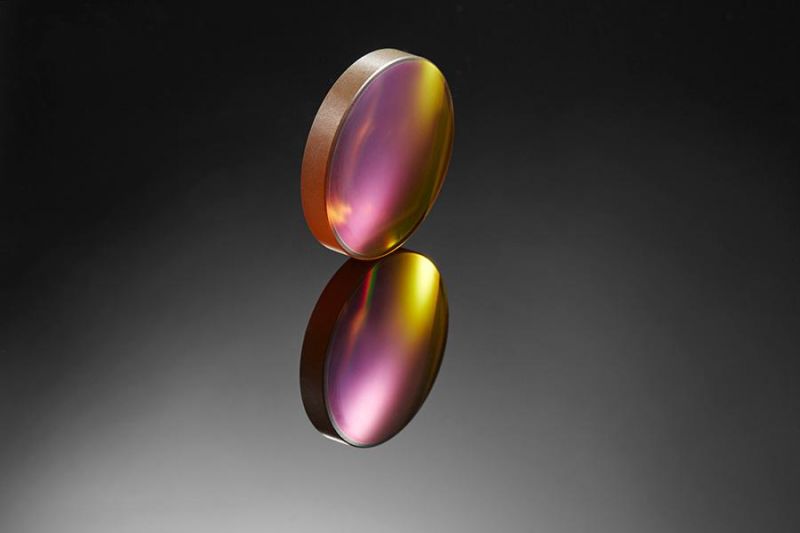

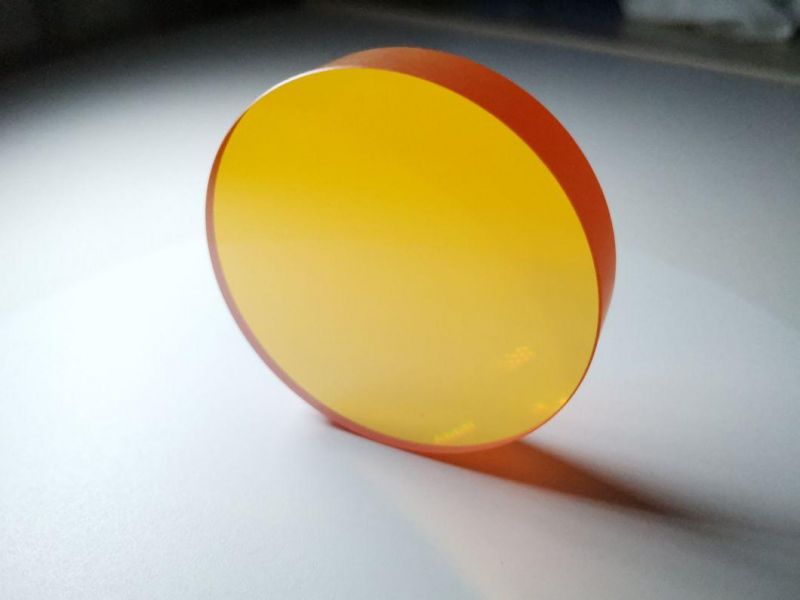

Zinc Selenide (ZnSe)
Zinc Selenide is produced by synthesis from Zinc vapour and H2Se gas, forming as sheets on a graphite substrate. Zinc Selenide is microcrystalline in structure, the grain size being controlled to produce maximum strength. Single crystal ZnSe is available, but is not common but has been reported as having lower absorption and thus more effective for CO2 optics.

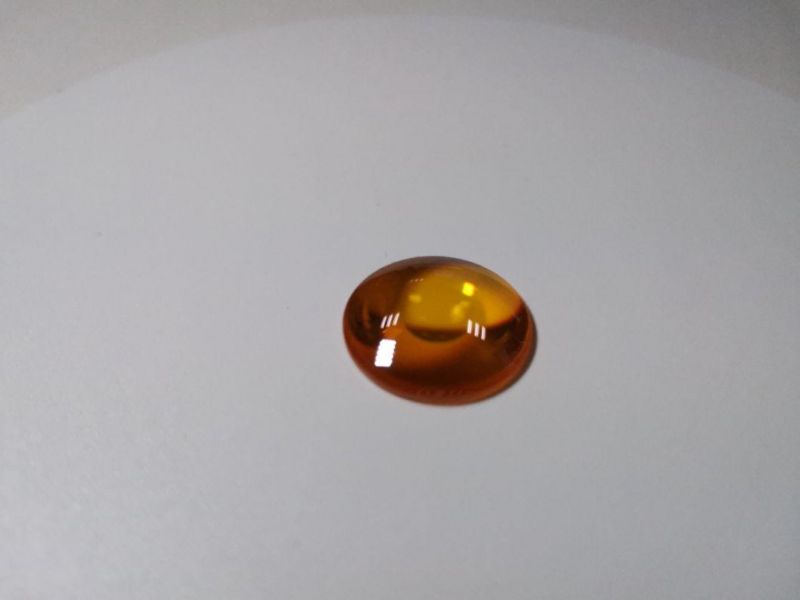

APPLICATIONS: ZnSe is used widely for IR components, windows and lenses, and for
spectroscopic ATR prisms. Zinc Selenide is one of the materials of choice for CO2 laser optics operating at 10.6μm.

Gas Cell Specifications


Pathlength: fixed (0.6 to 4.8 meters steps of 0.6 meters)

Volume: 0.5 liters

Dimensions: 24" long, 10" wide, 5" tall (610x254x127 mm)

Transfer Optics: purgeable

Cell Body: Ni coated Al (stainless steel optional)

Cell Hardware: aluminum black anodized

Mirrors: stainless steel, gold, MgF2 protection

Windows: KBr (CaF₂, ZnSe, BaF₂... optional)

O-rings: Viton (Teflon, Kal-Rez... optional)

Temperature Range: ambient to 200 Celsius

Pressure Range: vacuum to 15 psi (higher optional)

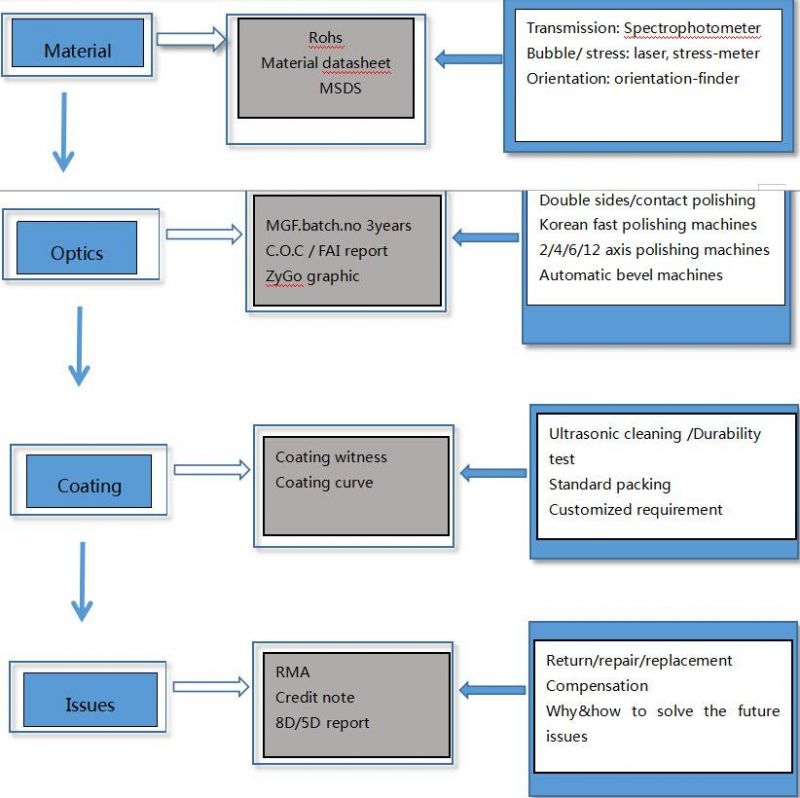

Quality Control

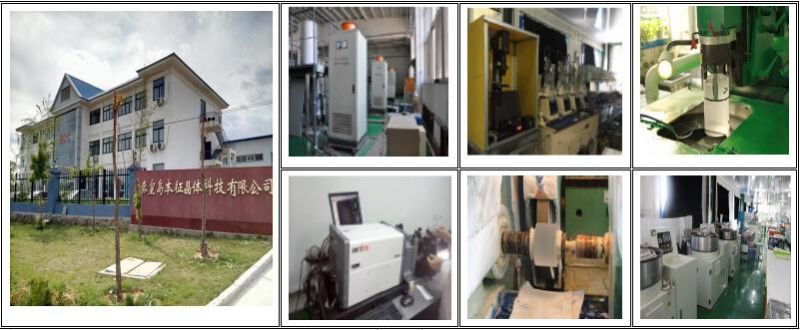

Company summary: Qinhuangdao Intrinsic crystal technology co.,ltd
Date created: 2008 years Employees: 140workers plant Size(sq.m): 15,000
Company type: private Trademark: ICC Annual sales: 8-10$Million
D-U-N-S number:53-098-3523 Certificates: ISO9001/14001/18001 import/export status: yes
Industry: crystal material and precision optics Tax.ID: 91130301678536714D

Business Description

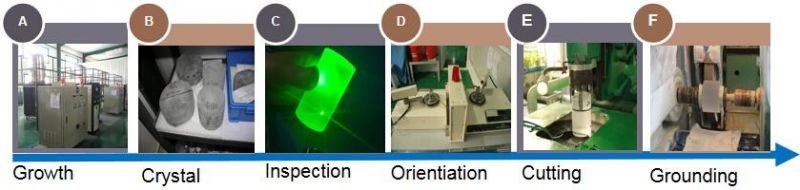

ICC is focused on crystal material growth, precision optics fabrication, and coating service to the world market.
growth material: NO.1 for CaF2/BaF2/MgF2/LiF, leading supplier for silicon.
Precision optics: windows, spherical lenses, prism, UV-IR optics
Coating service: 6 sets coating machines by IAD technology to make mirror, filter, beam splitter, polarizer
testing devices: ZyGo, AFM, FTIR microscope, 5sec goniomenter, reflective & transmission eccentric instrument

Business advantage
Crystal material of CaF2, BaF2, MgF2, LiF, and Silicon
Plano optics and IR/UV lenses sets size for D3.0-300mm.
We can supply free charges samples and build inventory for repeated or large orders
