• Model NO.：TPC-3000
• Color：Gray
• Model：Tpc-3000
• Weight：20kg
• Function：Test Flash Point of Petroleum Product
• Test Range：Room Temperature-400ºC
• Printer：Printer
• Feature：Electronic Ignition,No Need Gas Source
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE,ASTMD92,GB267
• Trademark：TOP Oil Purifier
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. TPC-3000 Color Gray Model Tpc-3000 Weight 20kg Function Test Flash Point of Petroleum Product Test Range Room Temperature-400ºC Printer Printer Feature Electronic Ignition,No Need Gas Source Transport Package Standard Export Wooden Case Specification ISO/CE/ASTMD92/GB267 Trademark TOP Oil Purifier Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

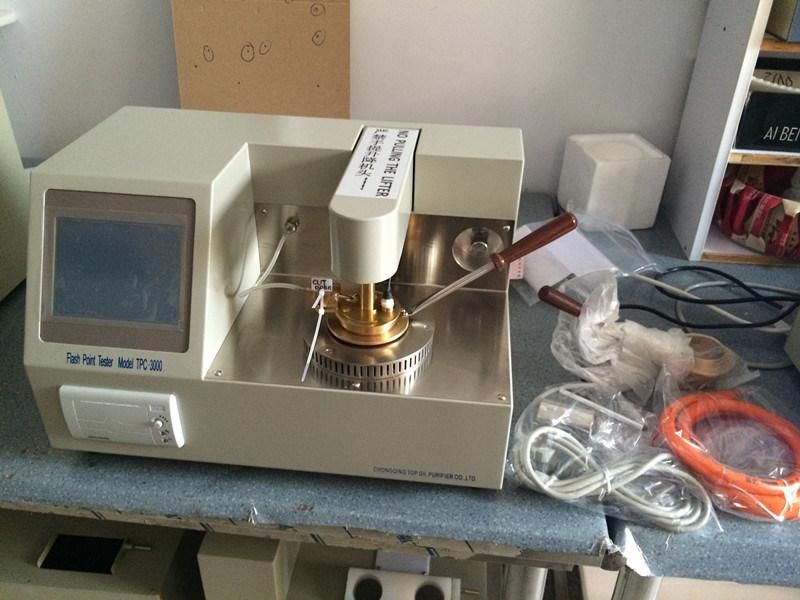

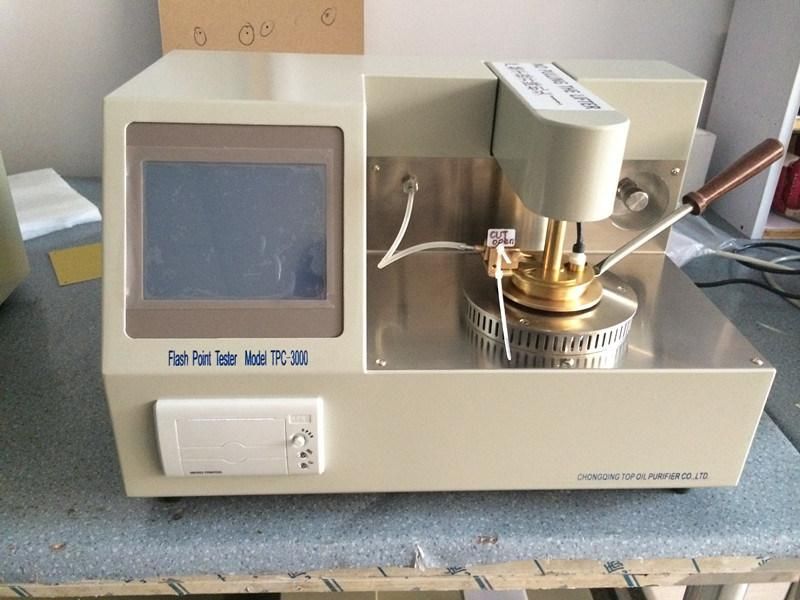

Automatic laboratory closed cup flash point tester/flash point analyzer ASTM D93



Application:

TPC-3000 fully automatic closecup oil flash point tester complies to ASTM D93, IGB261-2008, SH/T0315 etc. It is widely used in railway, aviation, electricity, oil industry and scientific research departments. It uses ARM microprocessor technology, color touch screen, English menu operation; according to the standard automatic ignition, display, detect and print flash point value, automatic cooling and other functions; with accurate measurement, good repeatability, stable and reliable performance.

Working principle:

The instrument in the national standard under the condition of the sample into the test cup, on a test oil test cup heating, the generation of oil vapor and air to form a mixed gas in contact with the flame flash fire when the minimum temperature occurs as a flash point.
The digital signal processor to control the heater according to the temperature changes, the acquisition, the oil temperature at a certain rate rise; ignition time, flash fire detection and automatic control; when the flash fire was measured when the system stops, data acquisition, display and print the flash temperature record results, stop heating.

Main Features:

1 resolution 800X600 color touch screen, English display, intuitive and convenient operation;
2 using a new high-speed signal processor control, adaptive PID control algorithm, automatically according to the standard requirements of heating;
3 test, open lid, ignition, alarm, cool, print, the entire operation process is completed automatically;
4 safe without air source, platinum alloy electric wire ignition mode, safe, stable, reliable, high accuracy;
5 built in atmospheric pressure automatic detection chip, atmospheric pressure automatic measurement, automatic calibration and automatic correction flash point value;
6 differential detection, automatic correction of system deviation, automatic detection and alarm;
7 thermal micro printer, making the print more beautiful and more efficient, with offline print function;
8 built in ASTM D93, GB/T 261-08, each degree of multiple criteria to choose from.

Technical parameter :

Display :	Color touch LCD display screen
Test method:	Thermocouple differential detection
Test range:	Room temperature-350ºC
Resolution:	0.1ºC
Repeatability:	flash point<104ºC,allowed ±1ºC; flash point≥104ºC allowed ±2ºC flash point≤110ºC,allowed ±1ºC; flash point>110ºC allowed ±2ºC
Printer:	High speed thermal printer,paper size:55mm
Temperature Detection:	Imported platinum resistance (Pt100Ω)
Ignition mode:	Automatically electronic ignition with airs source
Self-checking :	automatic fault checking
Power consumption:	<550w
Temperature:	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power:	AC220V±10%
Dimension:	397*305*240 mm
Weight:	About 15 kg

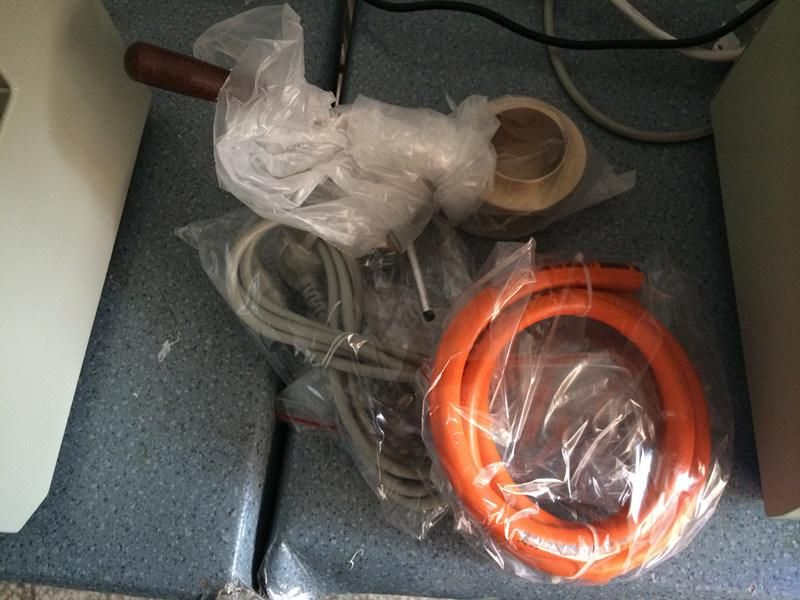

Packing and details:

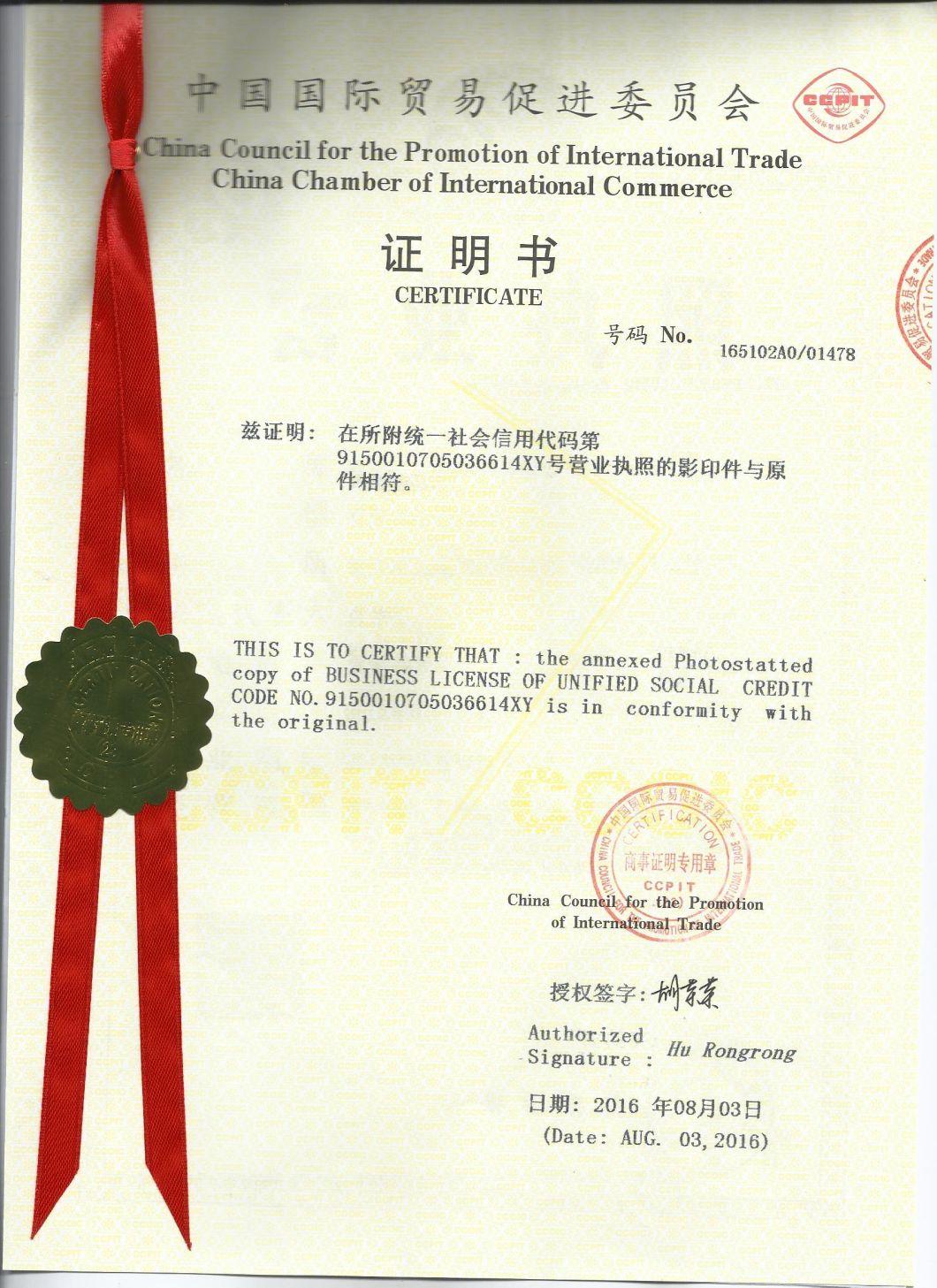

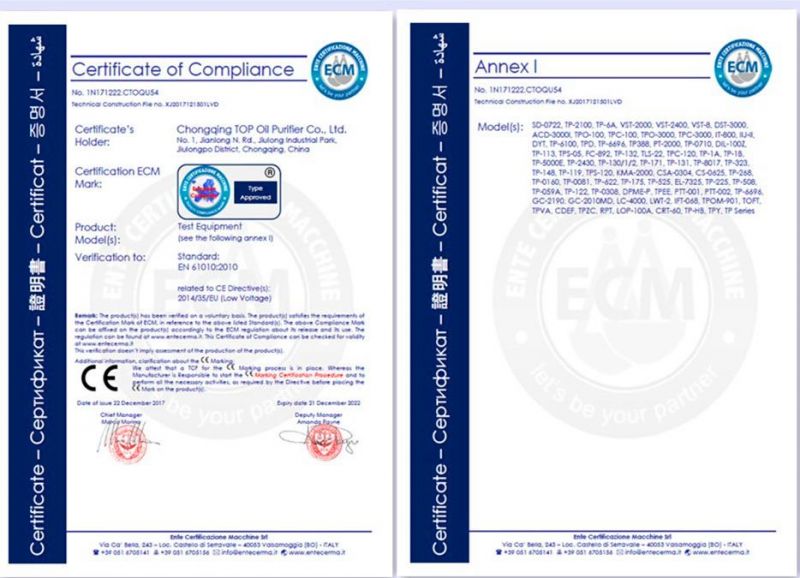

Related Certificates:

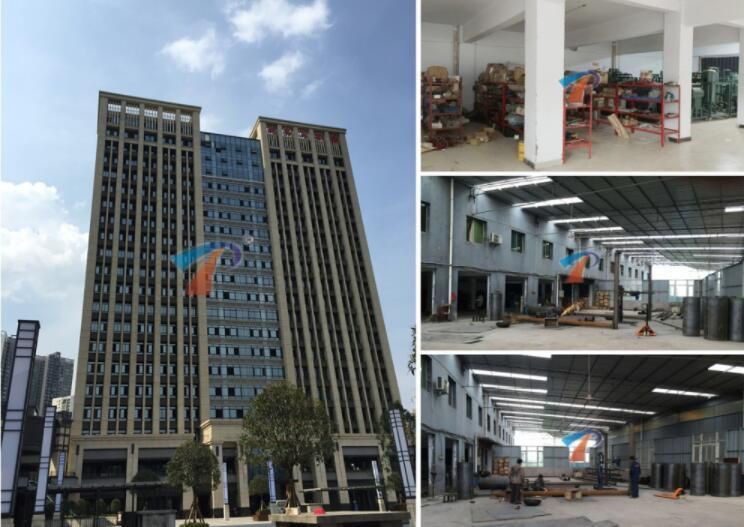

Our Company:




Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

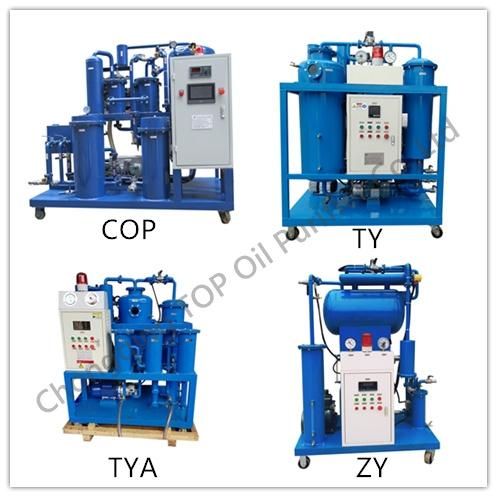

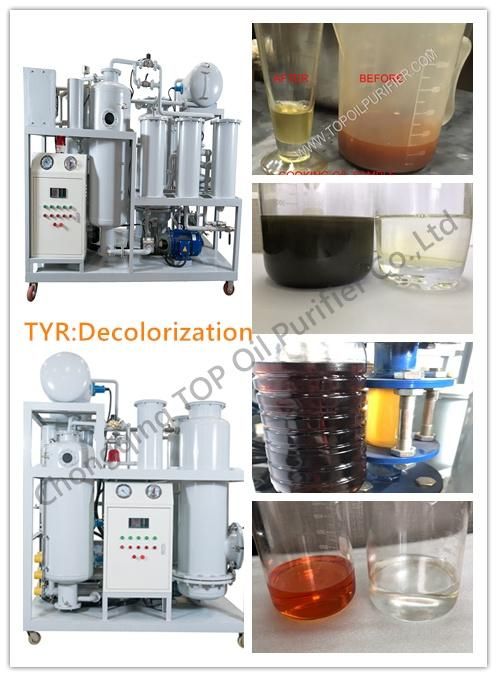

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

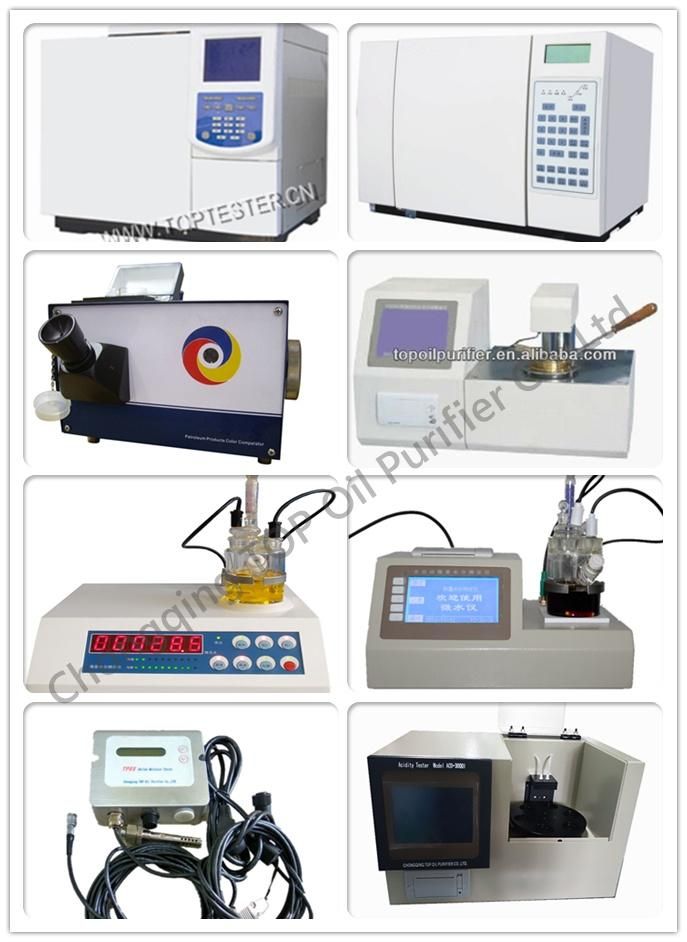

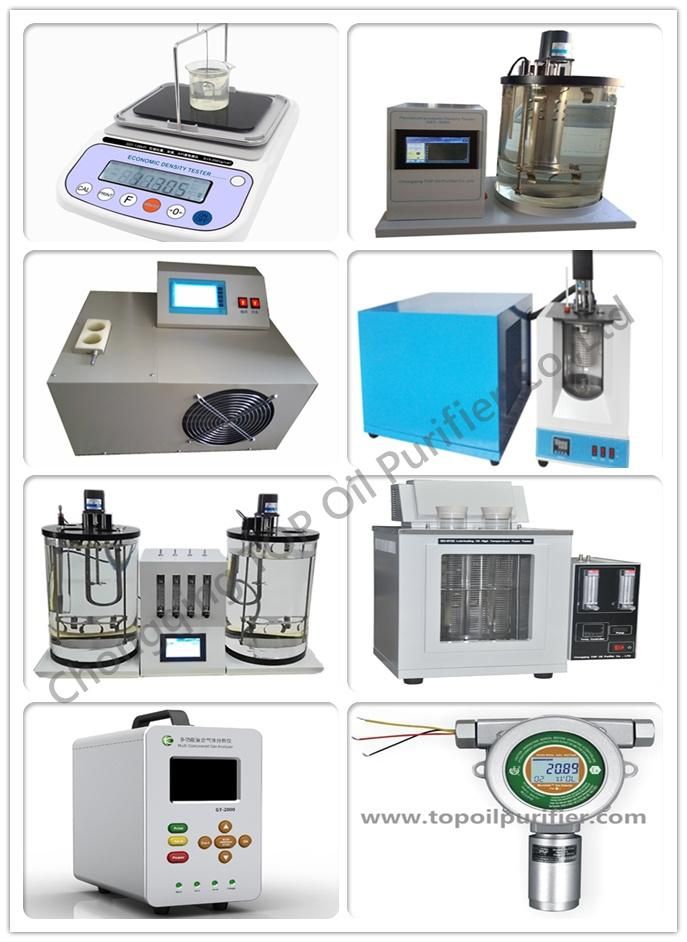

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
