• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Transport Package Standard Export Wooden Case Specification ISO/CE Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

IIJ-II  Transformer Oil Dielectric Strength Analyzer
Small cheap transformer oil dielectric strength tester, fully automatic, high precision, simple operation

Application:
IIJ series fully automatic oil tester is designed as per the requirement of IEC156 Testing Method of Insulation
Oil Medium Strength,which via proper programming,has got functions of auto boosting,step down,stirring,
display and print out. After breakdown of oil medium, HV break off will operate within 10 seconds to enable
 an auto isolation of control system partly; this effectively safeguards the personnel security and equipment
 safety. The tester is suited for testing of the strength of insulating oil medium, as well as for testing of
withstands voltage of transformer oil.

Features:
1) Fully automatic, control by microcomputer, utilization of new I/O terminal.
2) Numbers of times of testing and idling time of stirring are set via digital setting.
3) Test results displayed and printed out automatically.
4) Strong capability of anti-interference.
5) High accuracy of testing and high capacity of anti-jamming.
6) Easy to operate, small size, light weight which operated in the open air very conveniently and convenient for maintenance
7) Can store 99 groups oil testing data which is convenient to reading and print.
The testing data can keep 100 years under the condition of power off.
8) System time can go on running under power off. (the system time just for reference can not be the standard of timing.

1. Can upgrade software through RS232
2. High capacity of anti-jamming and high precision of testing.
3. Small volume, light which operated in the open air very conveniently.


Technology and parameter data

Power supply	AC220V±10%,50Hz
Output voltage	0~80KV(60KV,80KV)
Capacity	1.2KVA(1.6KVA,2.0KVA)
Speed of pressure rise	about 2KV/S
Voltage test precision	±3%
Breakdown sensitivity	<2KV
Wave difference	≤3%
Time of breakdown	≤10ms
Working - temperature	0~40
- humidity	The biggest comparatively humidity85%
Reserve circumstance- temperature	-20~60
- humidity	The biggest comparatively humidity75%
- Working altitude	<1500m (if over 1500m can be designed specially)
Dimension	480mm*460mm*460mm

Oil Testing Instrument Series:
1.Transformer oil breakdown voltage tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer water content tester model TP-6A / model TP-2100
4. Moisture content tester(TPEE)
5. Fully automatic interfacial tension analyzer model IT-800
6. Gas-chromatography transformer oil gas analyzer model DGA2013-1
7. Consolidation point determinator model PT-2000
8. Kinematic viscosity tester model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. Transformer tester (CT/PT tester) model TPVA-404
12. Transformer turn ratio tester model HYG-II
13. Total base number analyzer(TBN tester) TBN-2030

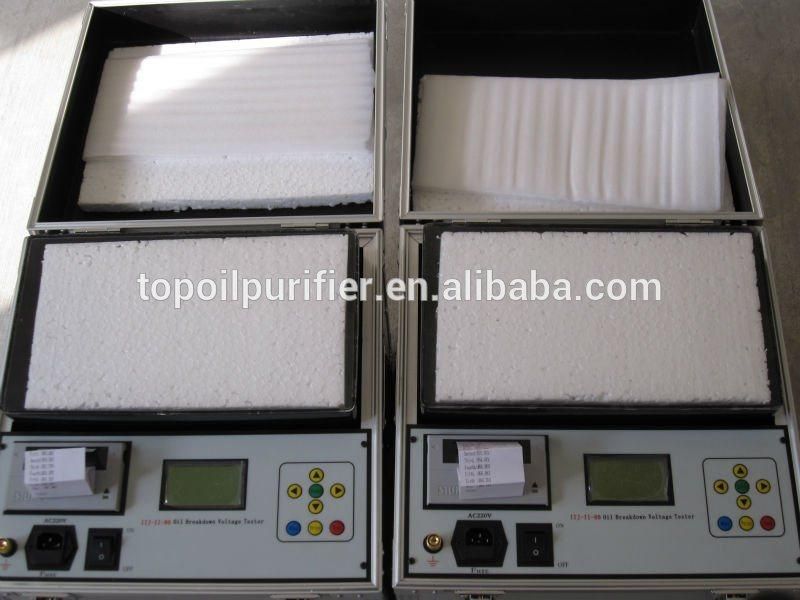

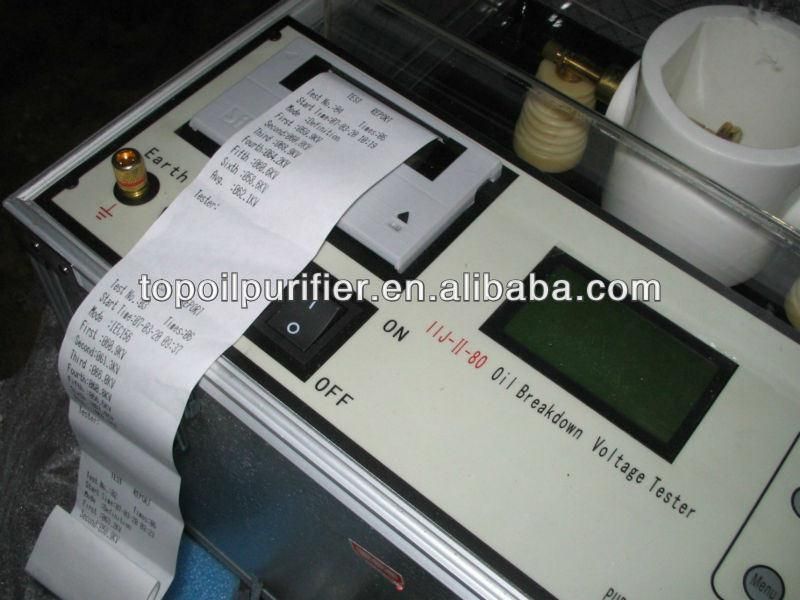

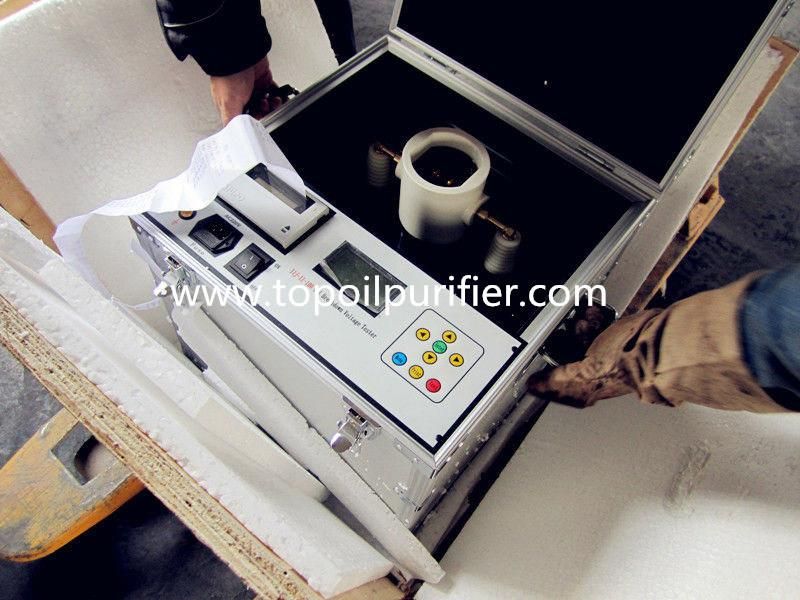

Detailed Images







Our Company

Chongqing TOP Oil Purifier Manufacture Co., Ltd  is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation,and introduces advanced technology.

TOP's pruducts are widely used in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They help a lot with reducing energy consumption and also environmental pollution.

Top will as always make great effort to and also be proud of supplying you the best oil purifying equipments.

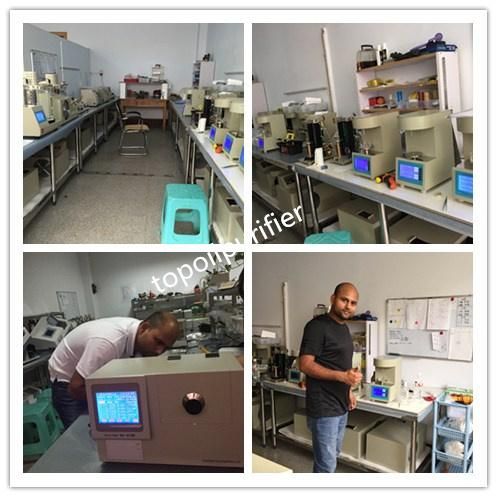

Our Factory and Certificate
